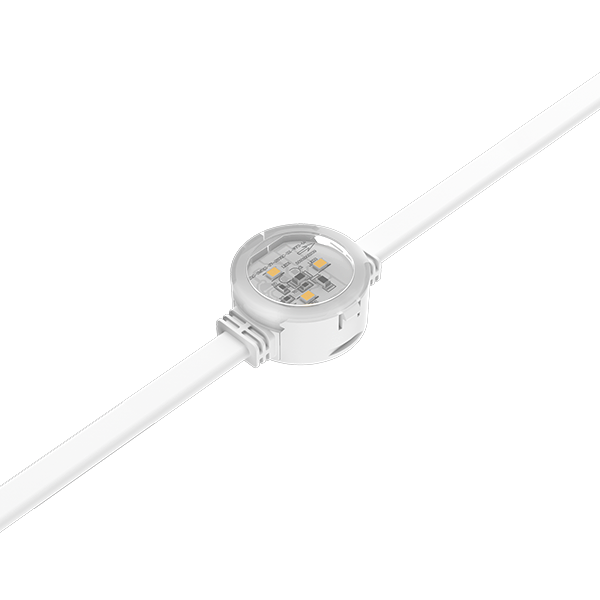

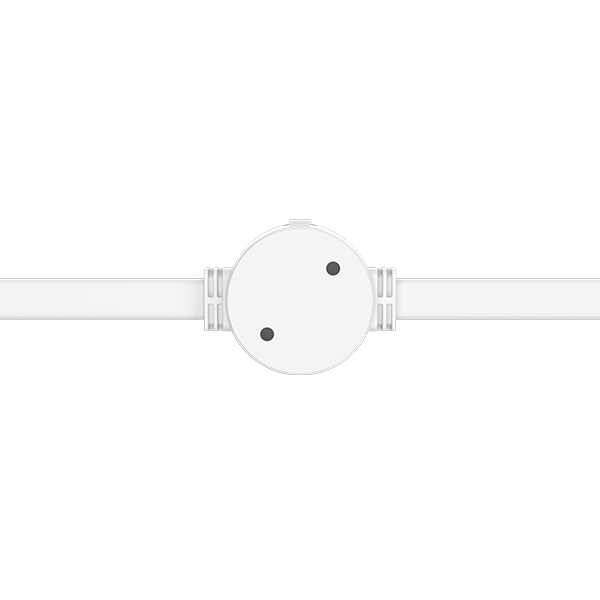

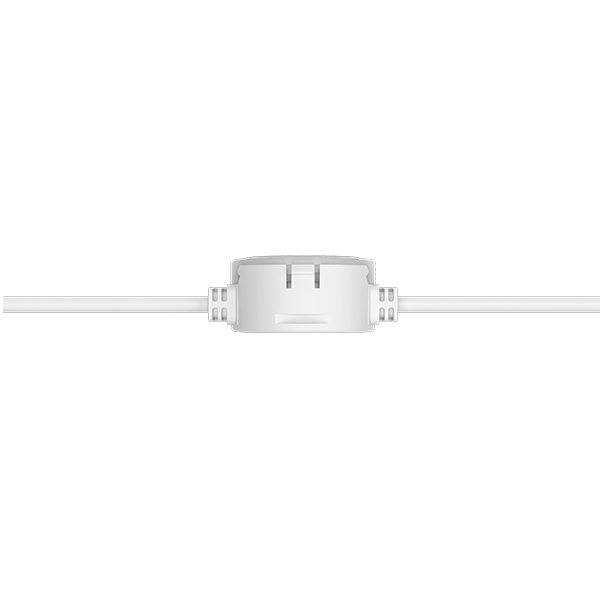

PX5C

• Small size single pixel LED lamp, suitable for forming high pixel density LED pixel lamp array, usually used in building media, large-scale urban landscape and urban lighting.

• Polymer silicone material as a whole sealing waterproof anti-static, protection levels are up to Ip 66.

• A maximum of 60 PCS (within 30 meters) , flexible application, not limited by space size, shape and region.

• DC12V power supply, ensure feed, effective signal transmission, low line loss.

• Constant current drive, built-in PWM grayscale control, grayscale level 256665536.

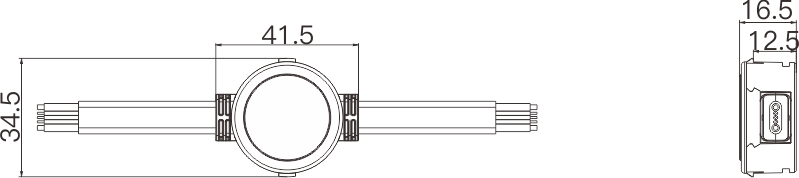

Dimension

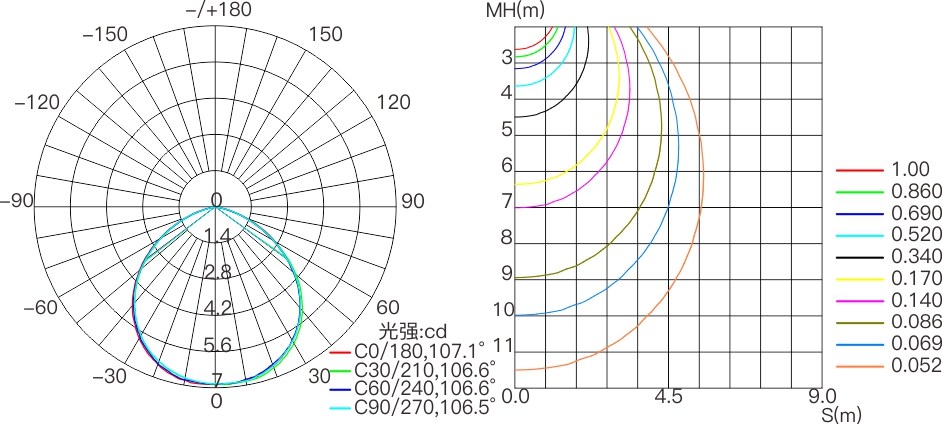

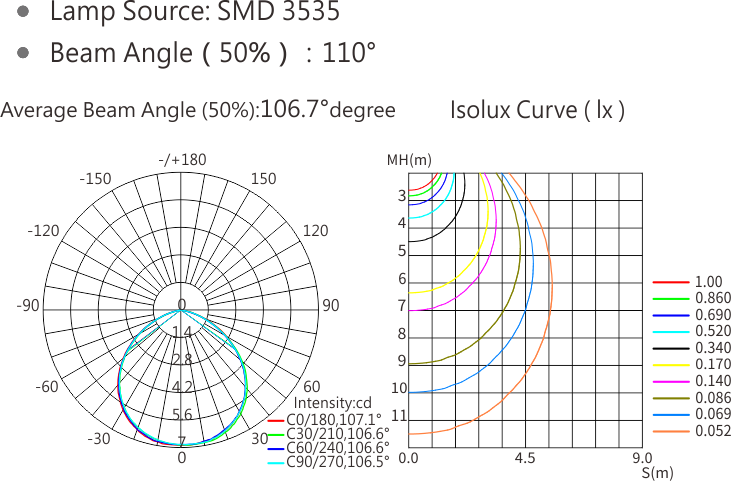

Photometric curve

Beam Angle

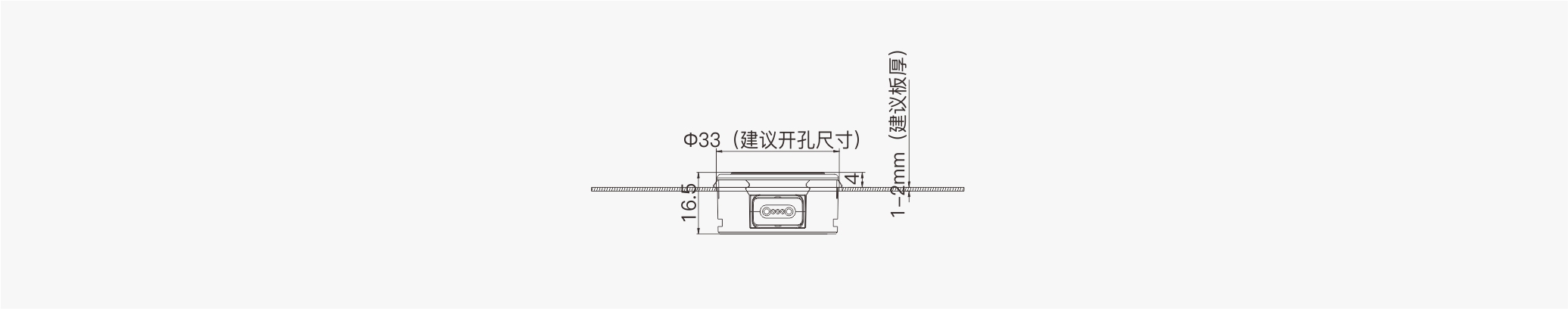

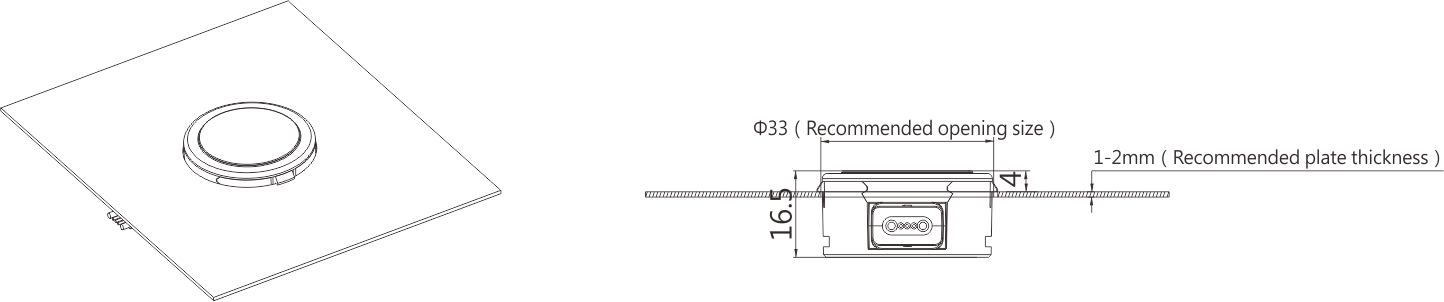

Installation

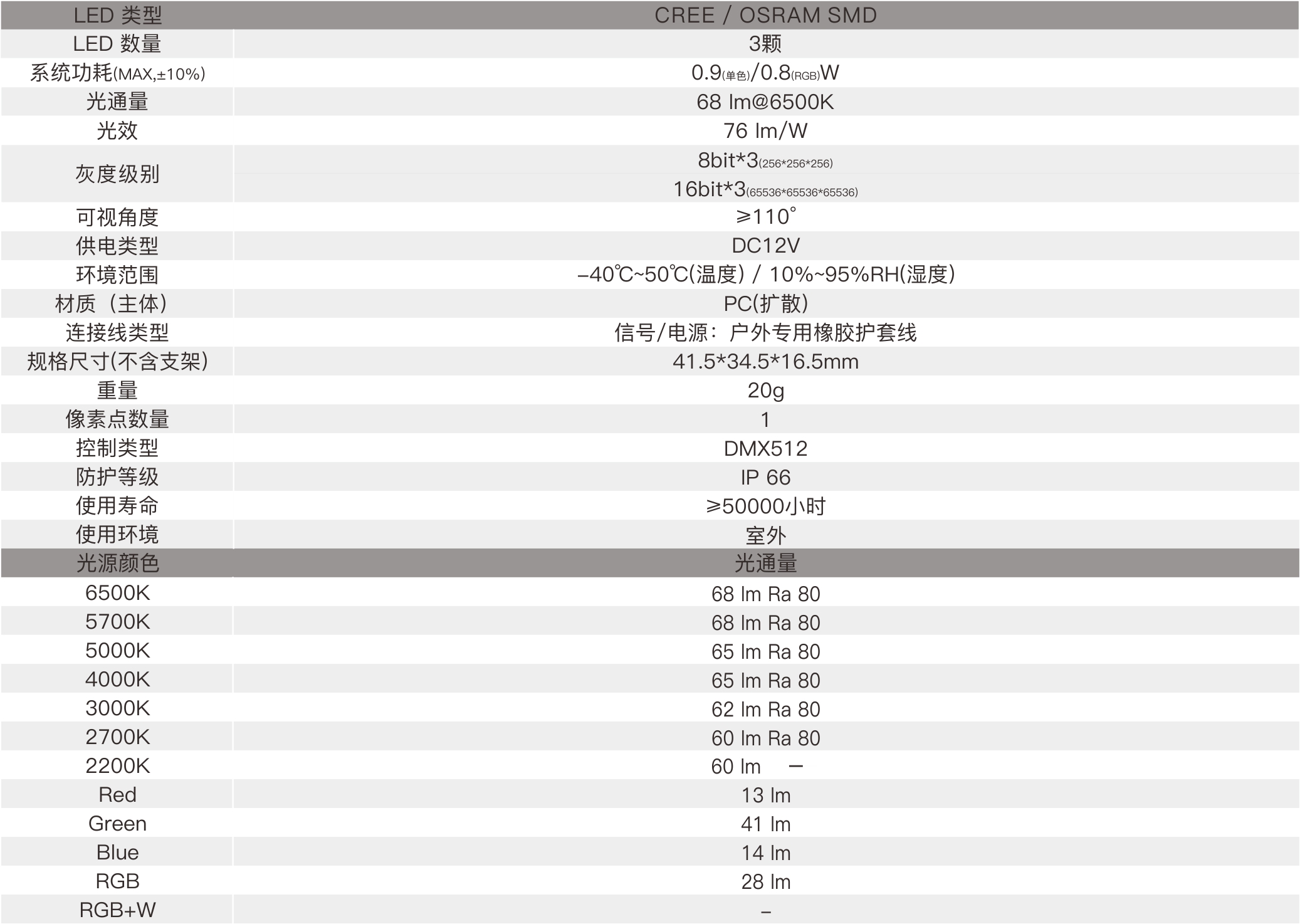

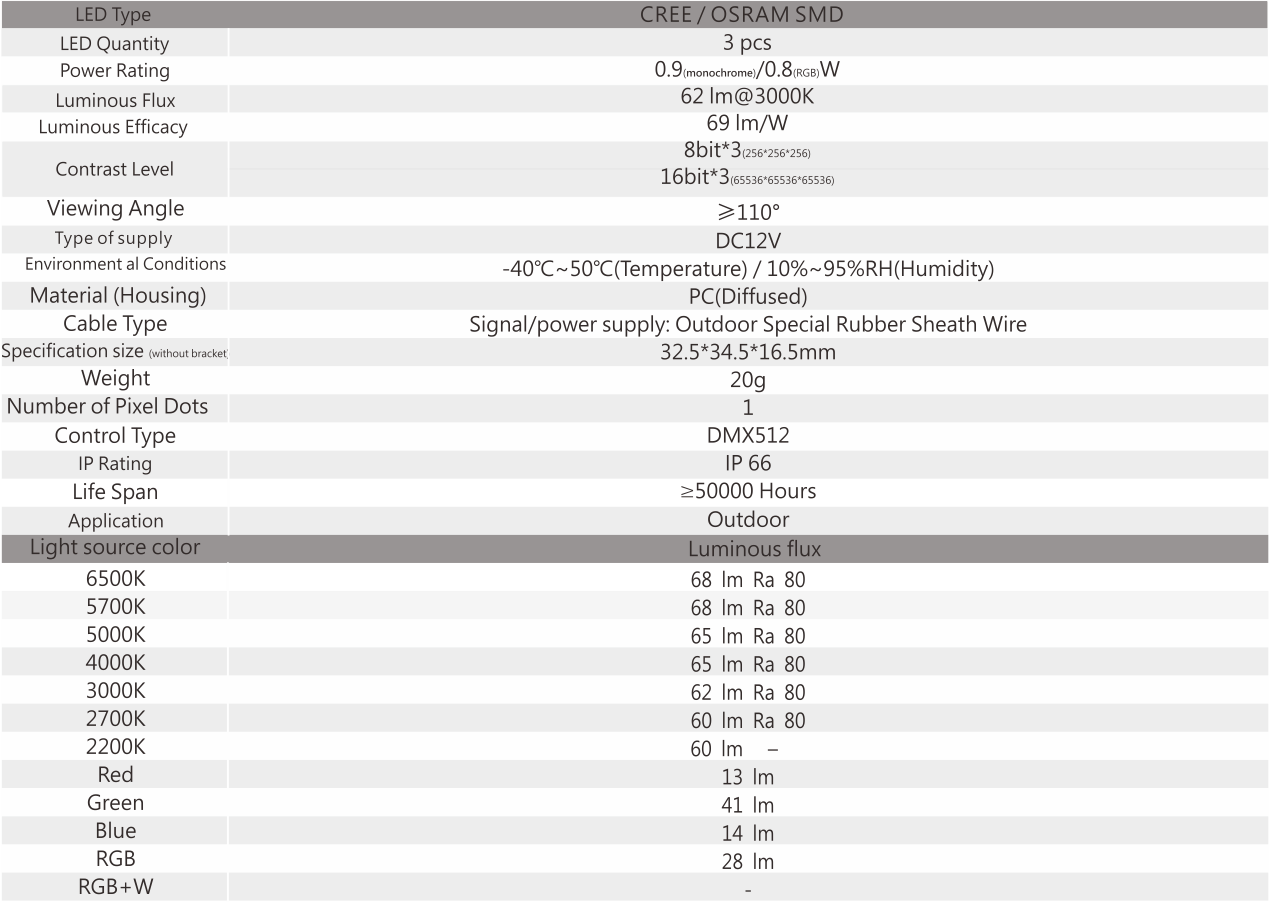

Features

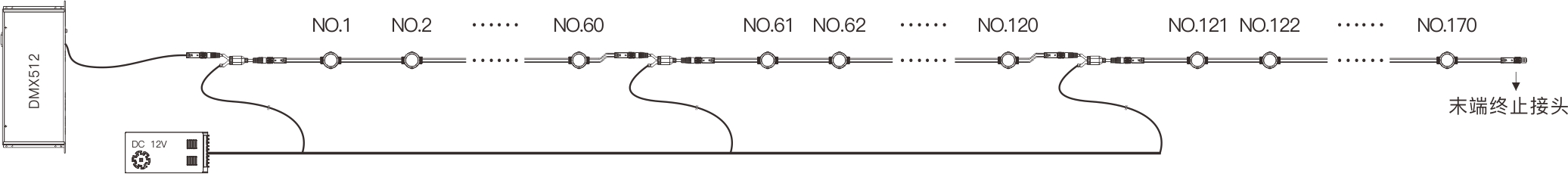

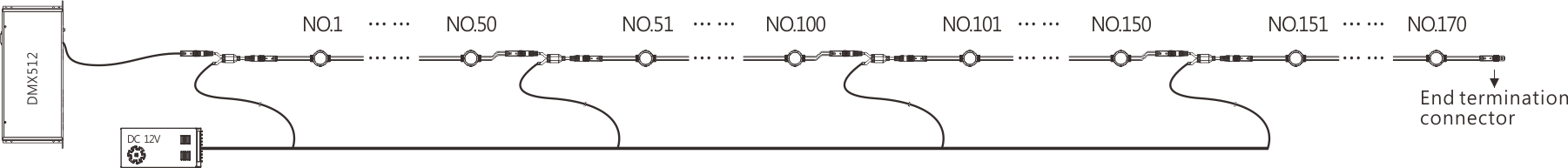

System Schematic Diagram
