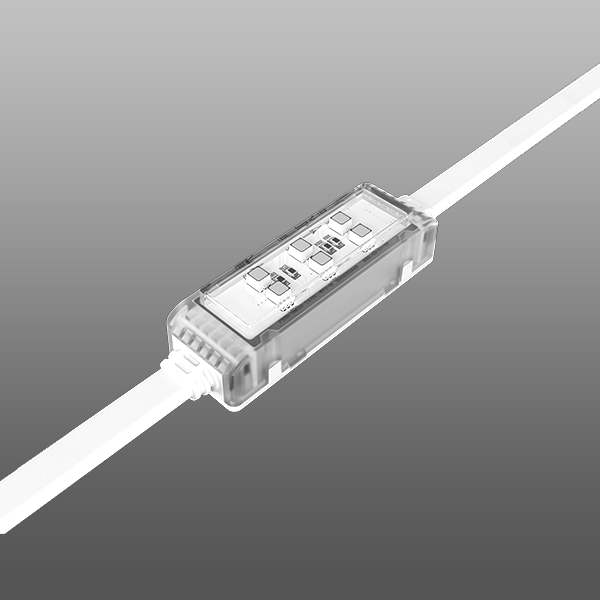

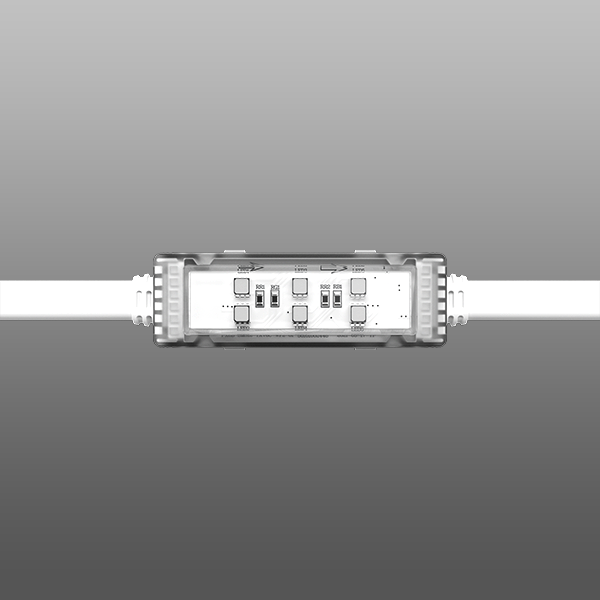

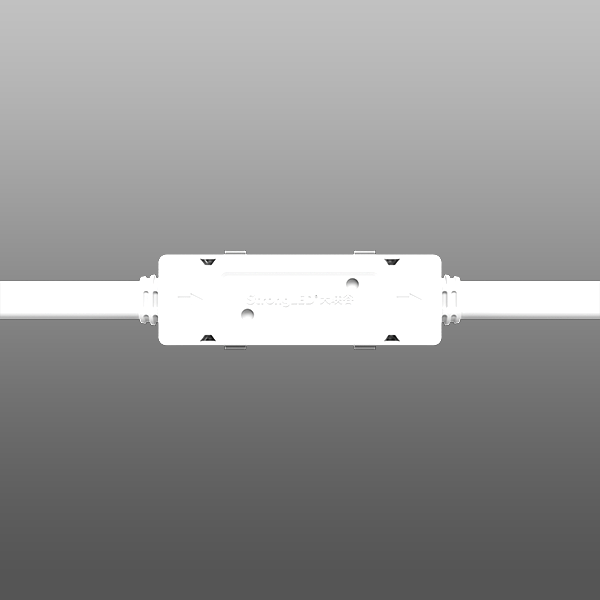

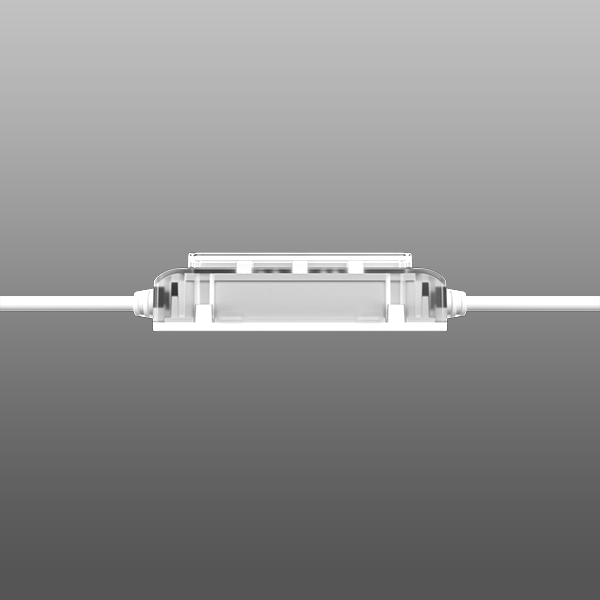

PX6B

• Small size single pixel LED lights, suitable for high pixel density

• LED pixel light array, usually used for building media, large-scale urban landscape and urban lighting.

• The Polymer Silica Gel material whole potting waterproof anti-static, the protection grade all reaches the IP 66.

• C24V power supply, ensure feed, effective signal transmission, low line loss.

• Constant current drive, built in PWM grayscale control, grayscale level 25665536.

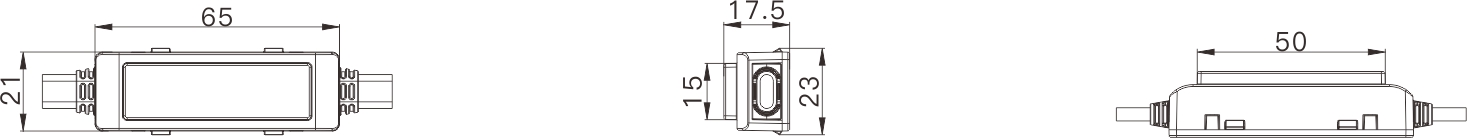

Dimension

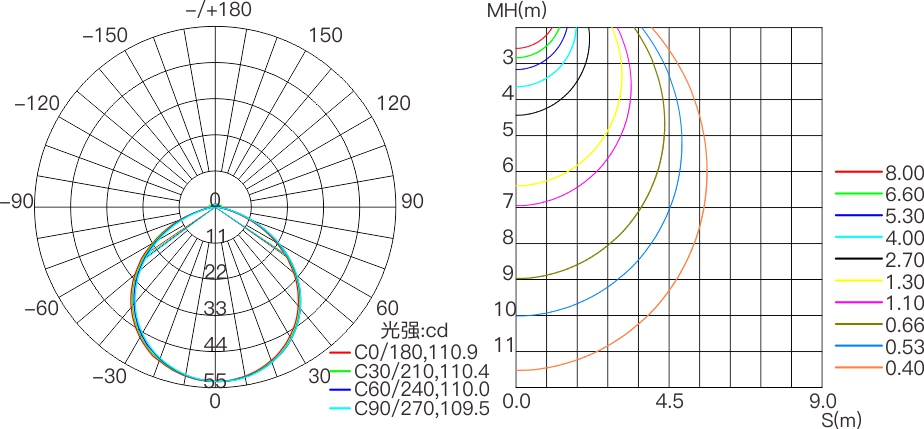

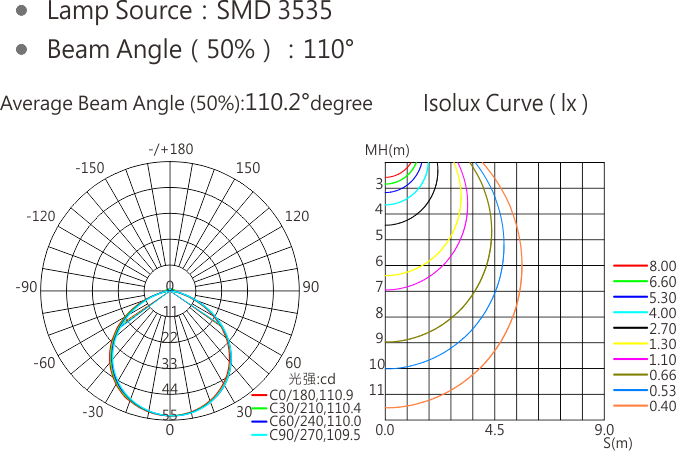

Photometric curve

Beam Angle

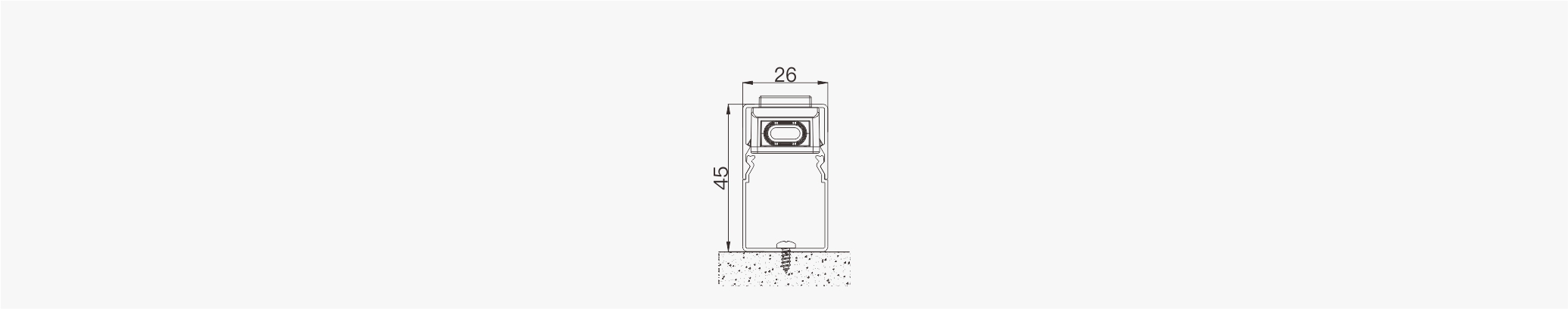

Installation

Features

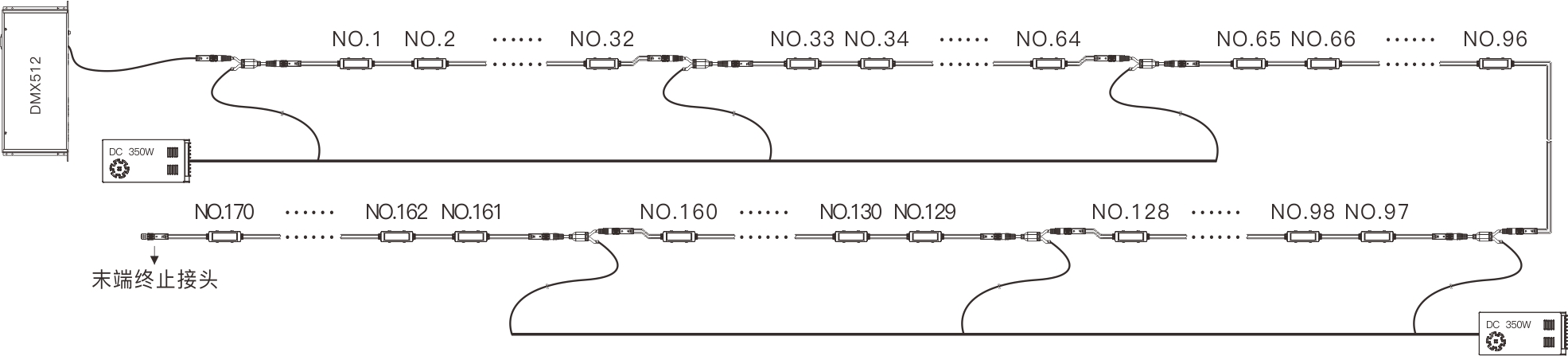

System Schematic Diagram
