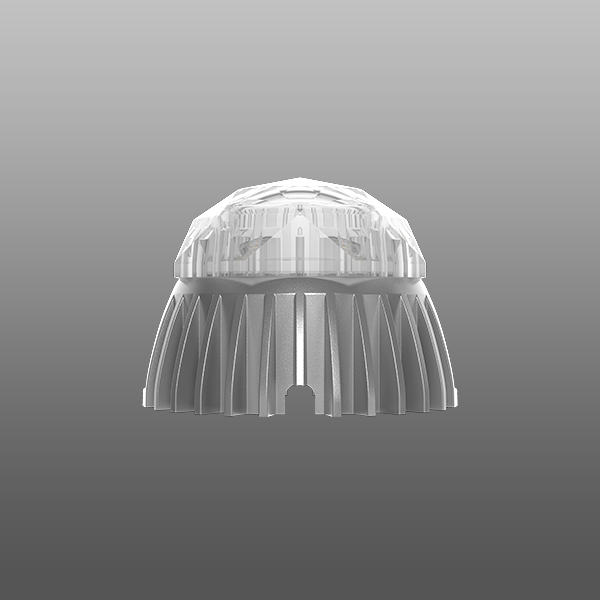

SP3B

• Small size and High Brightness Single Pixel LED lamp, suitable for low pixel density LED pixel lamp array, usually used in combination with architectural glass curtain wall truss structure, display pattern color change effect.

• The structure of the lamps and lanterns waterproof, anti-static, protective grade up to Ip 66.

• Appearance can be customized according to the color of the curtain wall, so that products better into the building.

• DC24V power supply, ensure feed, effective signal transmission, low line loss.

• Constant current drive, built-in PWM grayscale control, grayscale level 256/65536.

• SP3 pedestal is aluminum alloy structure, SP3B pedestal is plastic PPO structure.

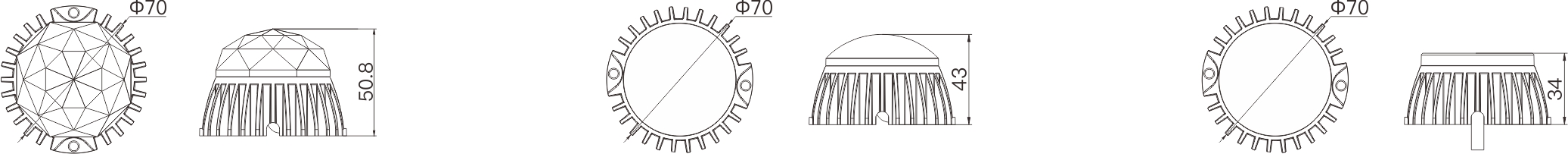

Dimension

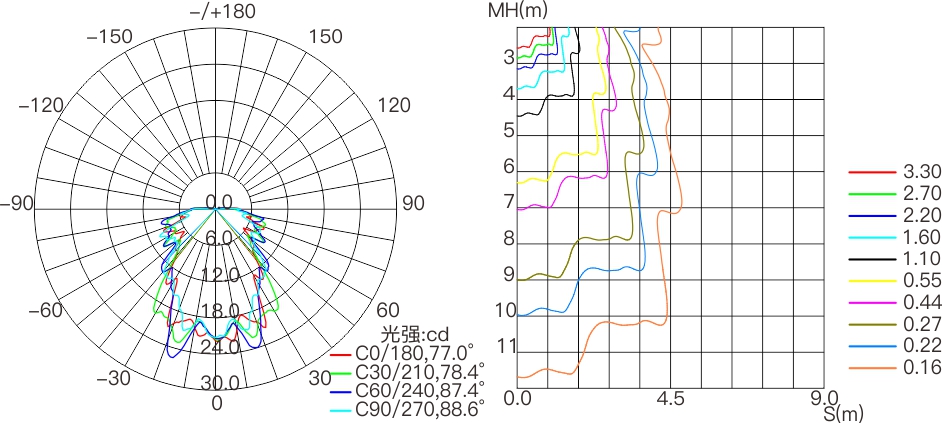

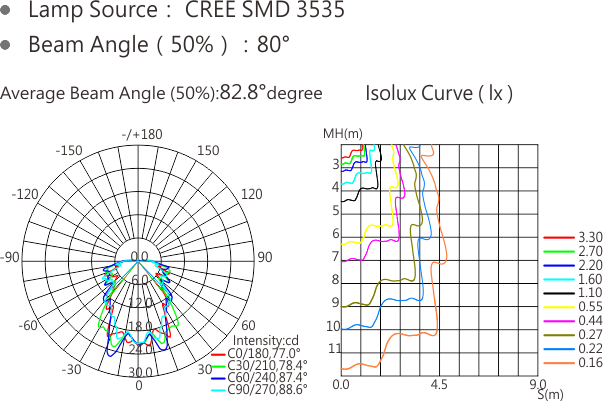

Photometric curve

Beam Angle

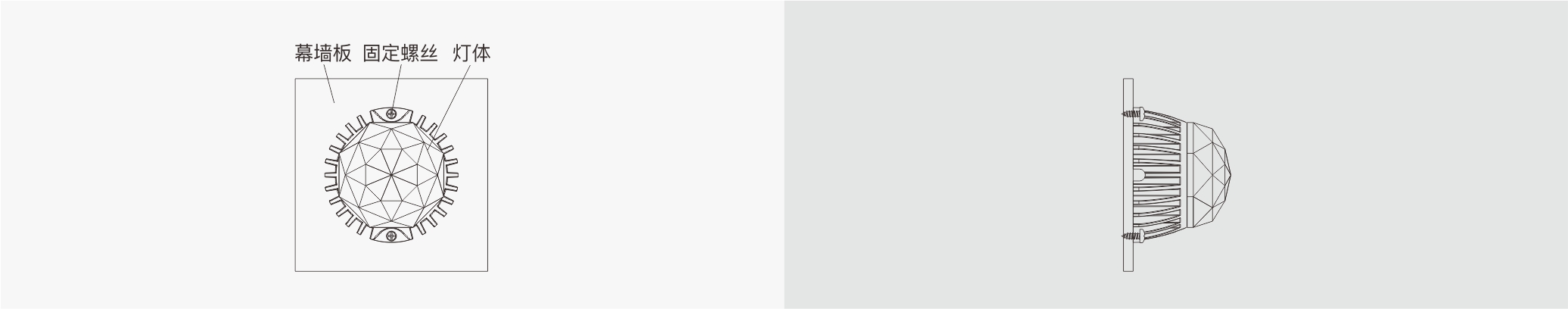

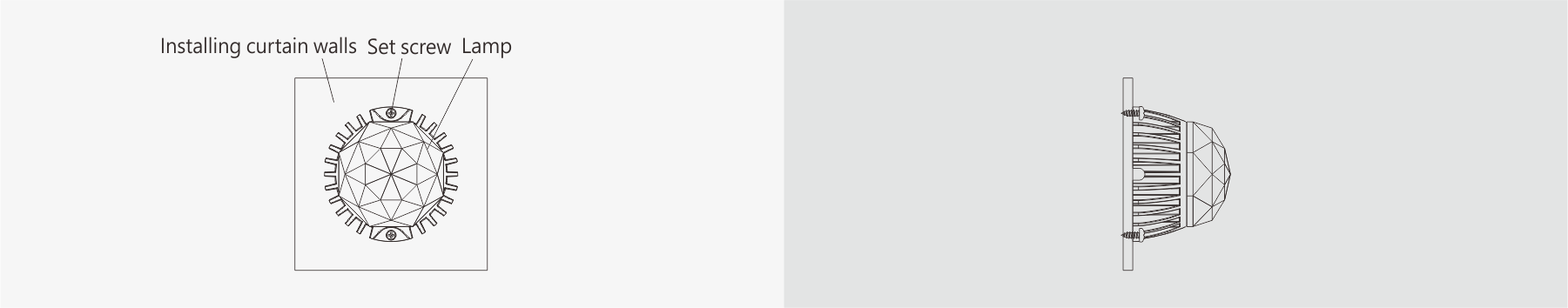

Installation

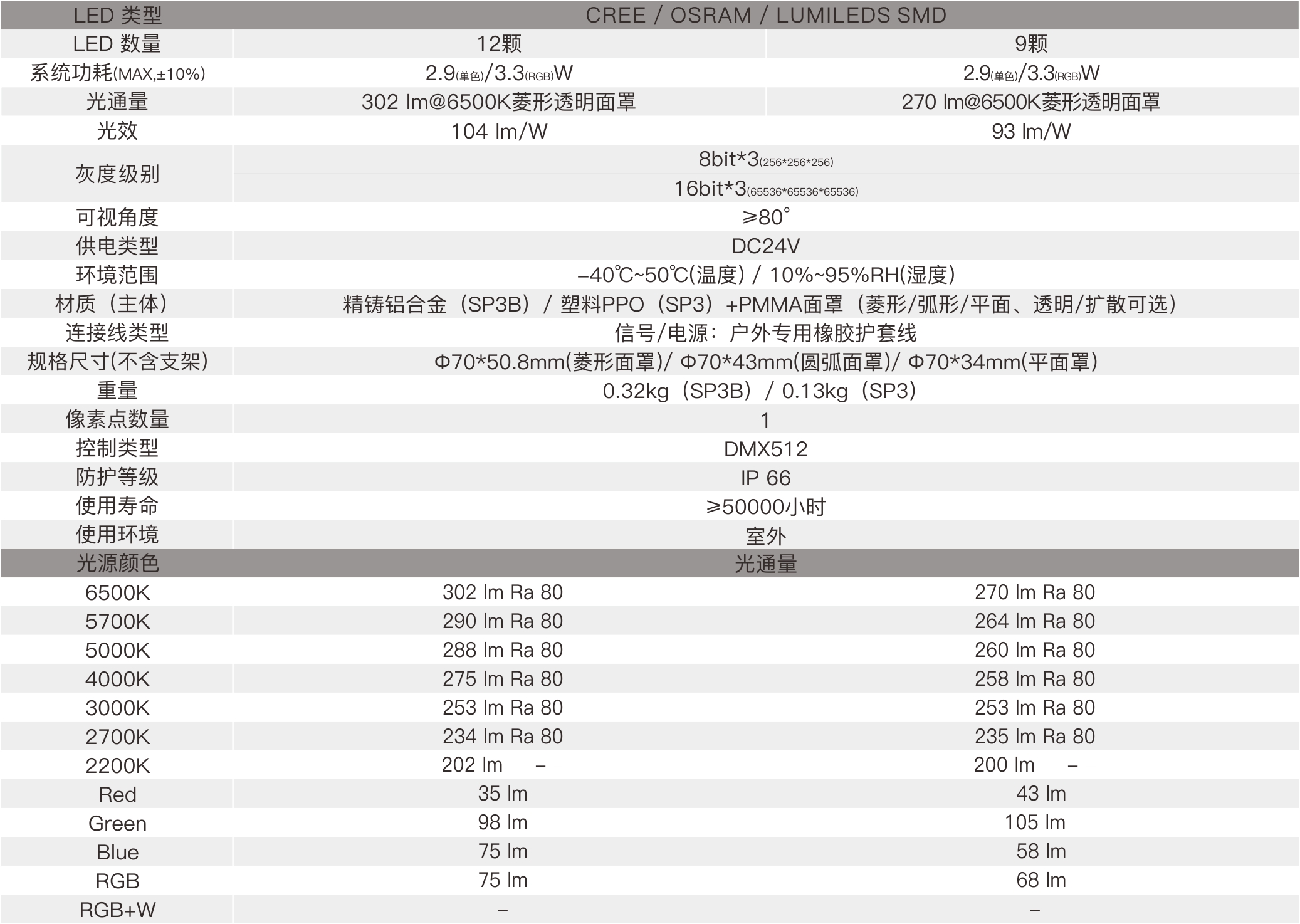

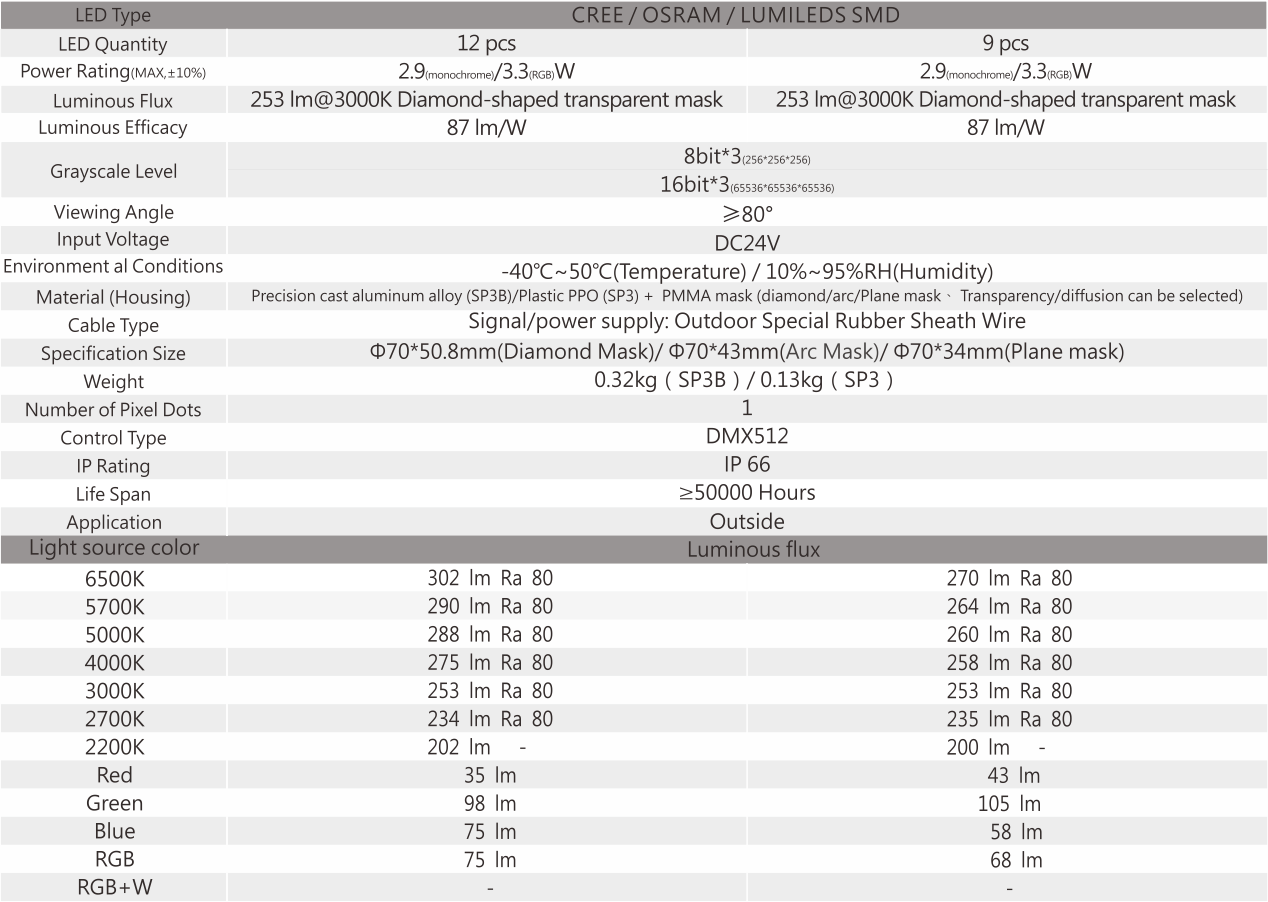

Features

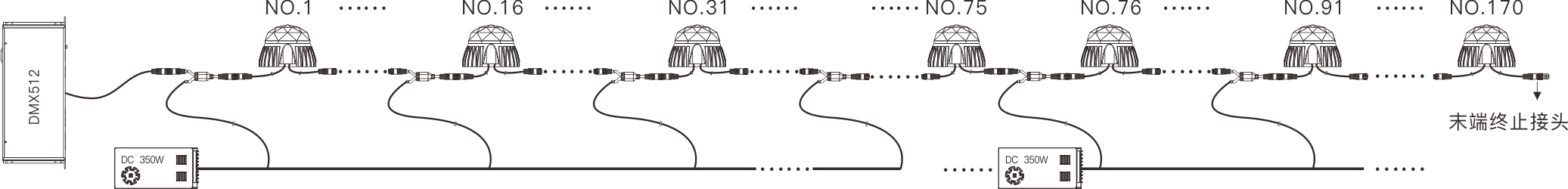

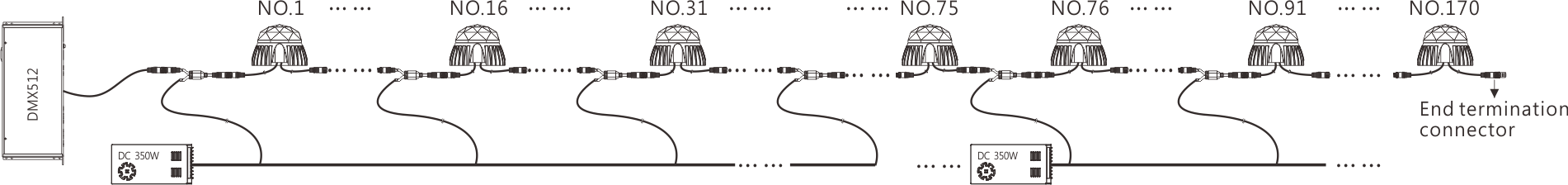

System Schematic Diagram
