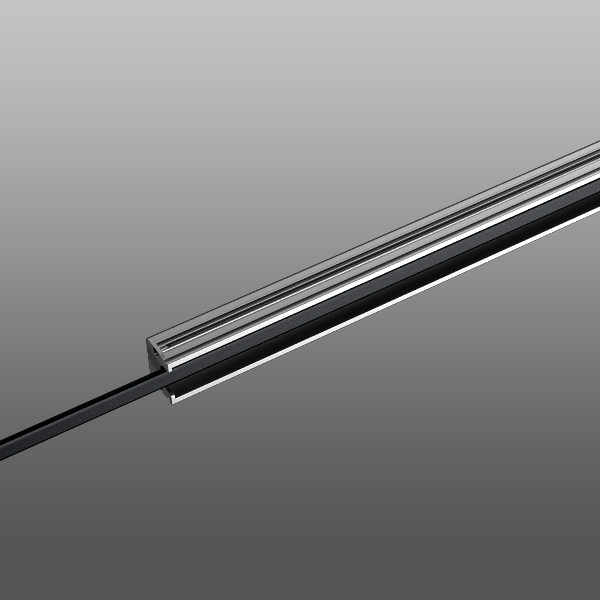

CX1A

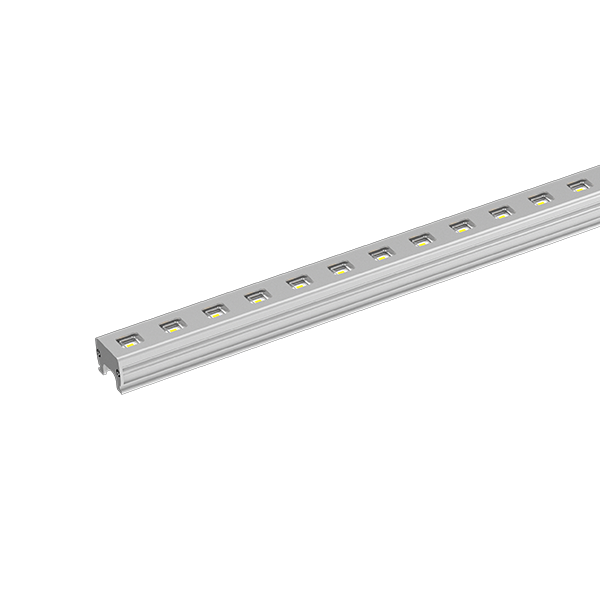

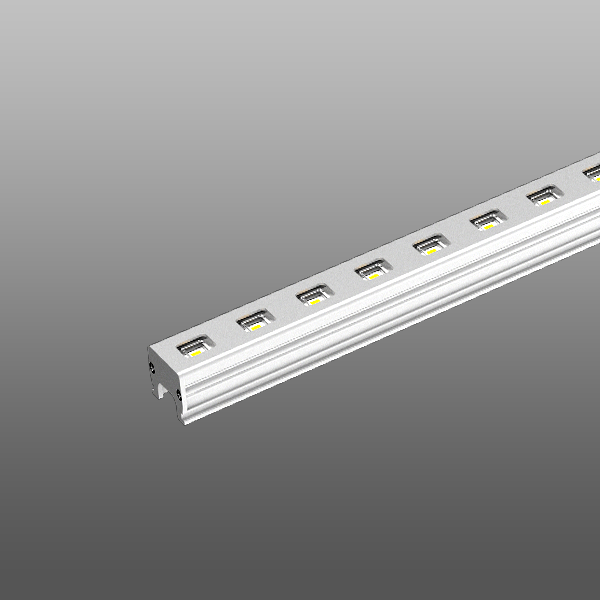

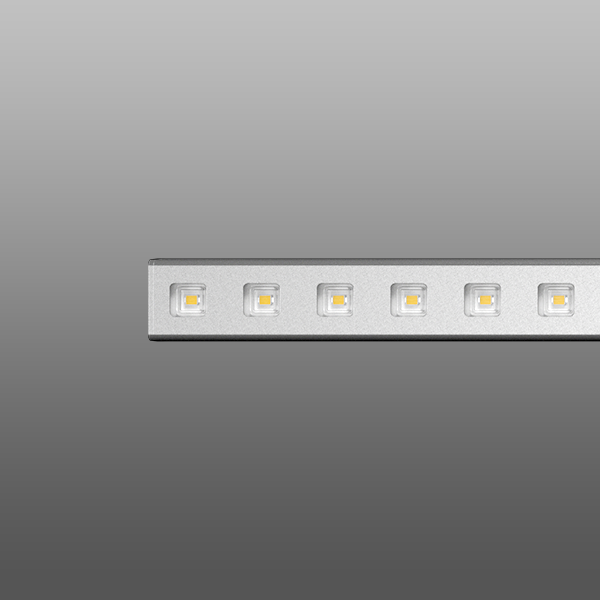

• High brightness LED video pixel line light.

• Perforated aluminum cover design, flat surface for rainwater self-cleaning, reducing internal UV aging and blocking external impact.

• Optical-grade PMMA LED cover prevents direct rainfall and reduces LED aging.

• The interior is made of high quality polyurethane potting process, and the protection level can reach IP66.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

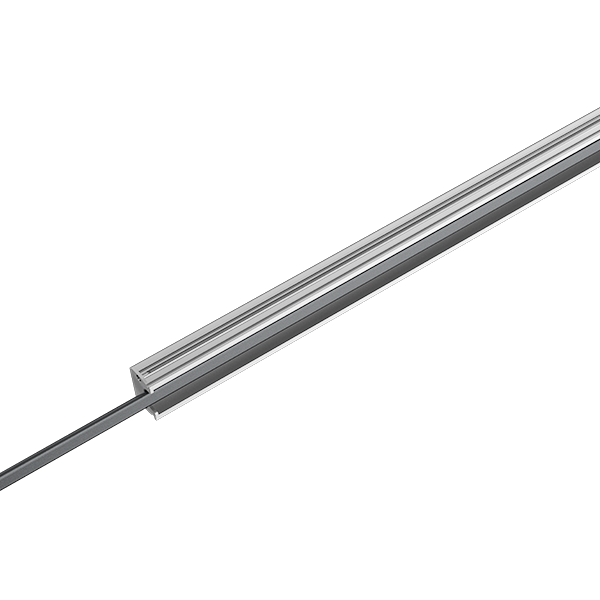

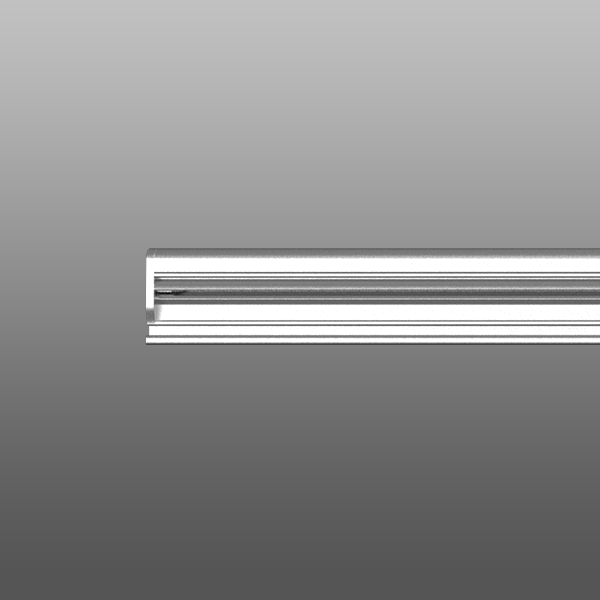

• The bottom concealed wire outlet makes the whole more neat and tidy after installation.

• DC24V power supply ensures effective transmission of power and signal and low line loss.

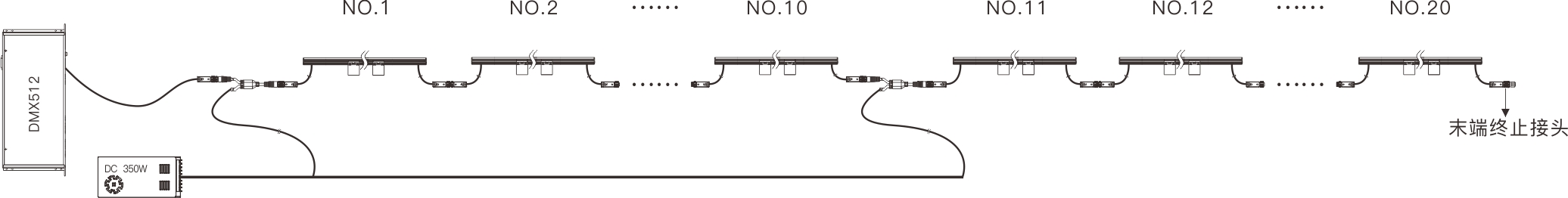

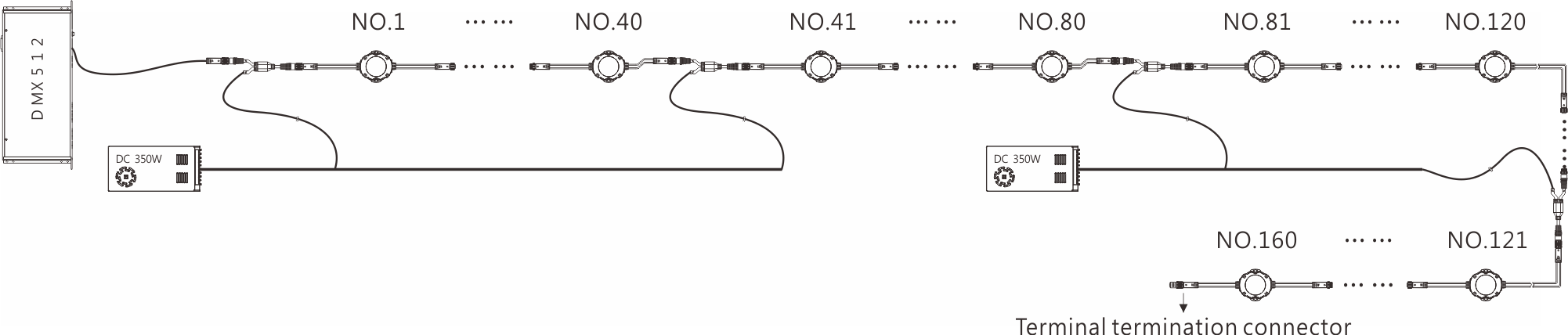

• A single power circuit can be connected 10 meters in series, reducing wiring and difficulty in construction.

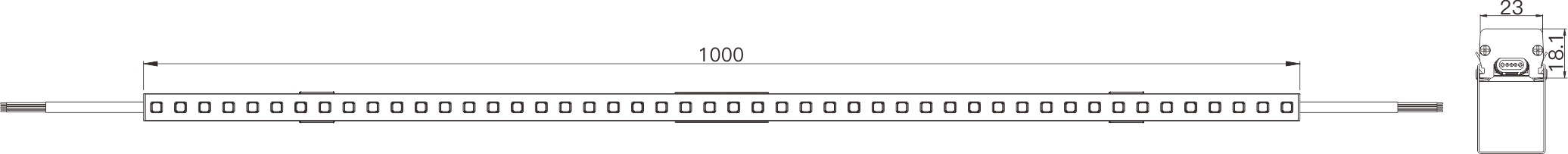

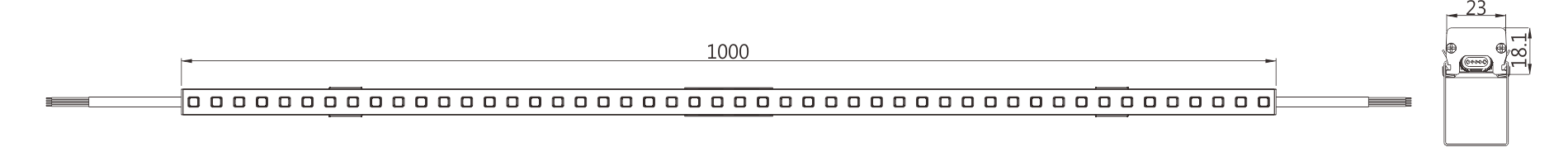

 Dimension

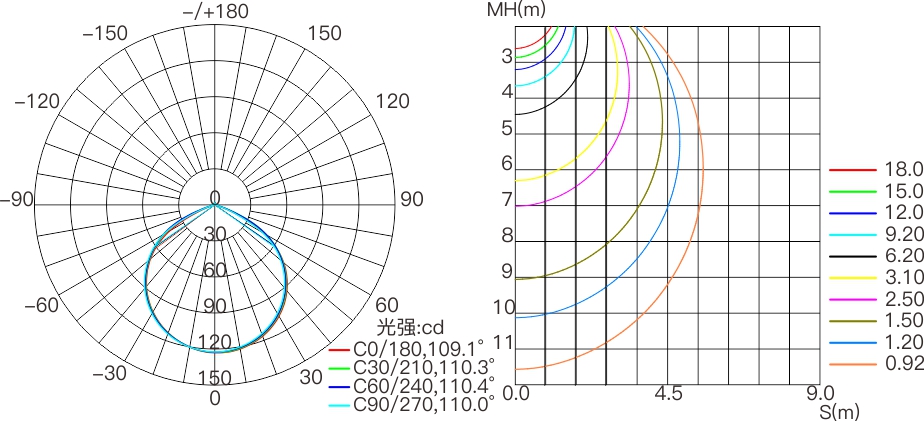

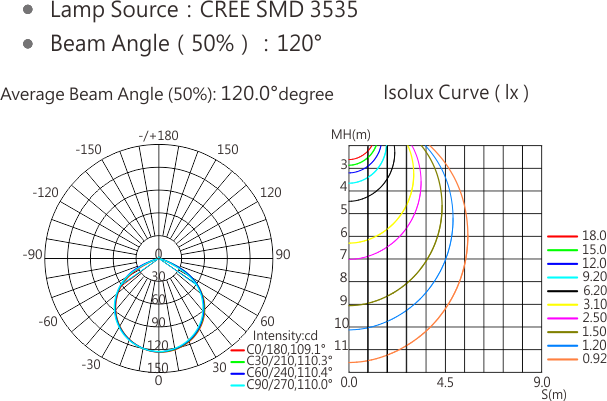

Photometric curve





 Beam Angle

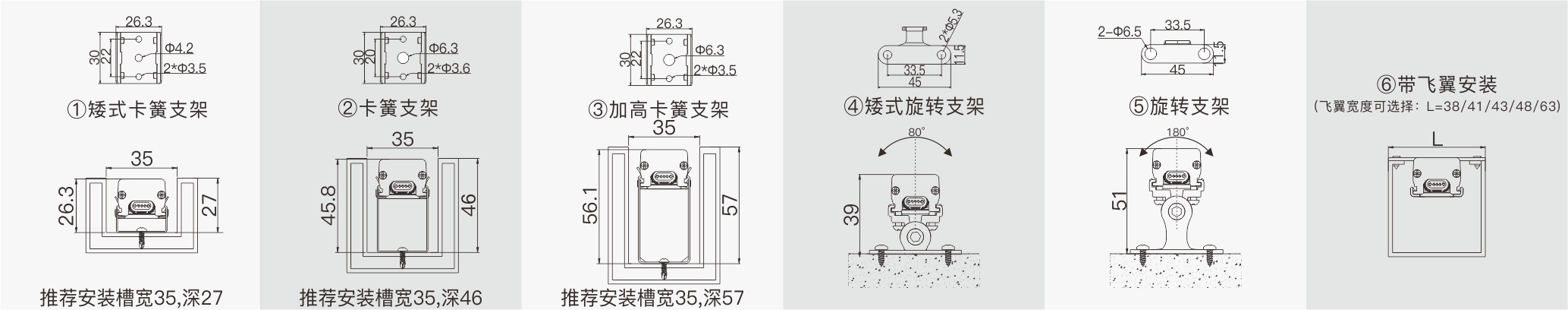

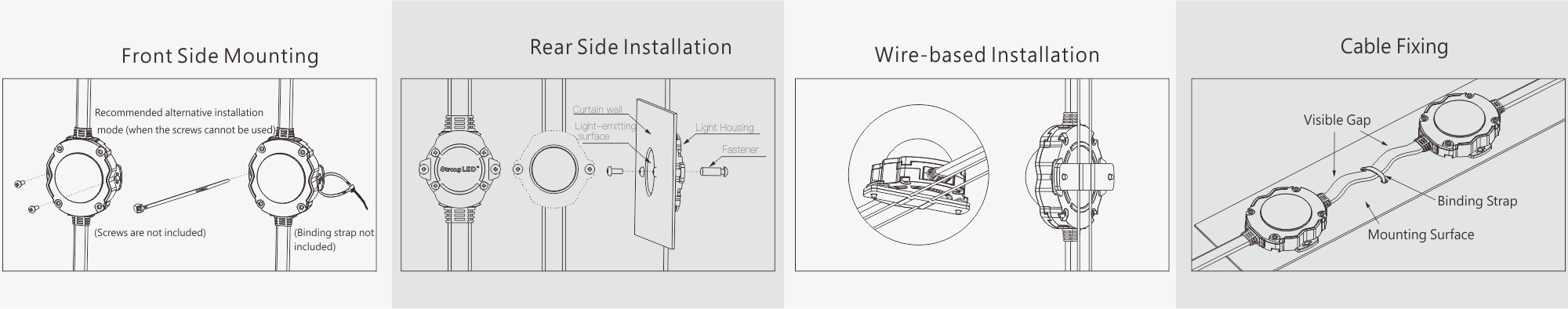

Installation
