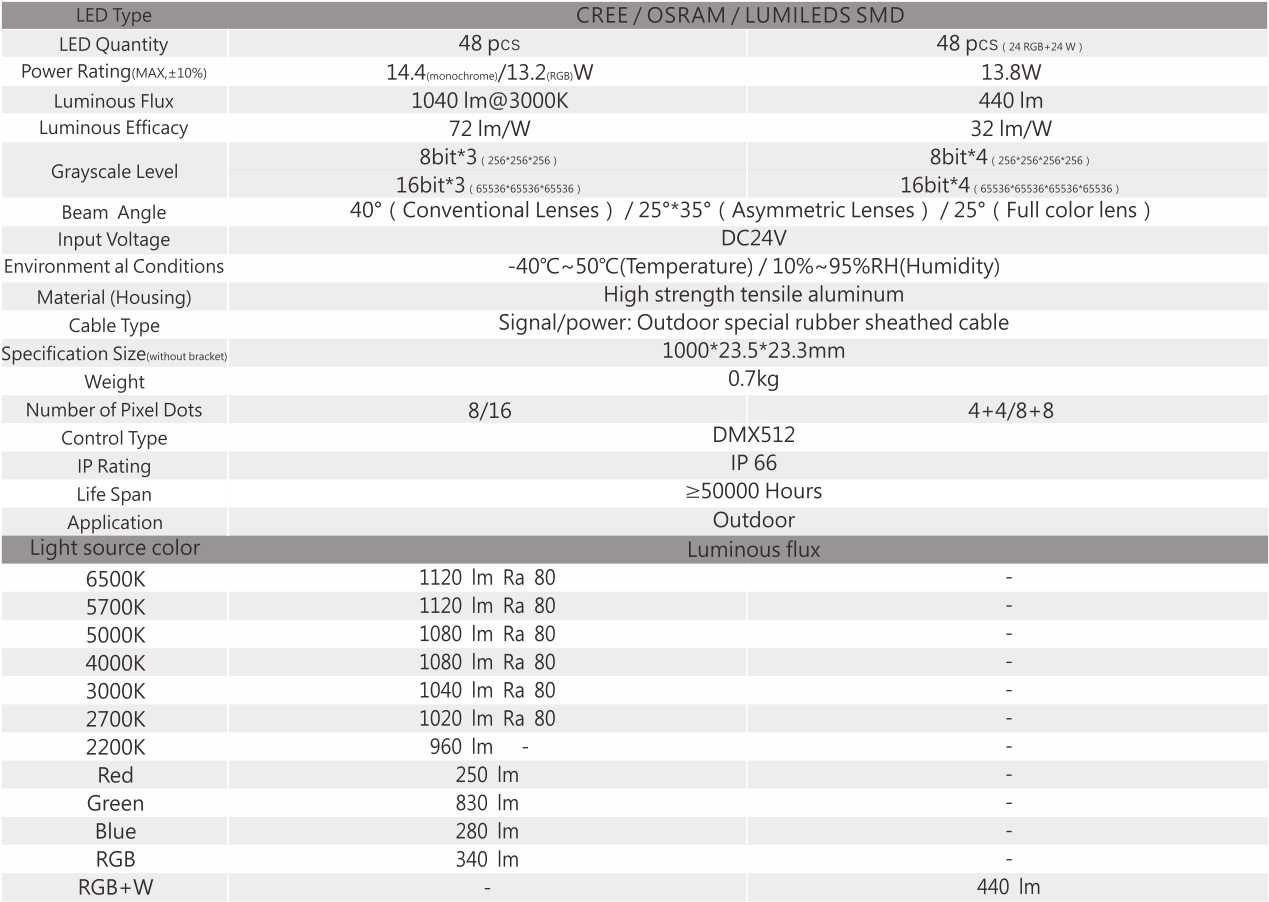

CX2A

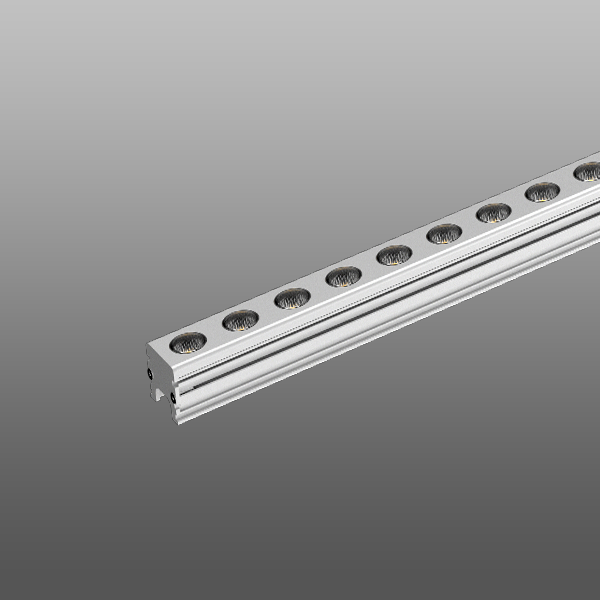

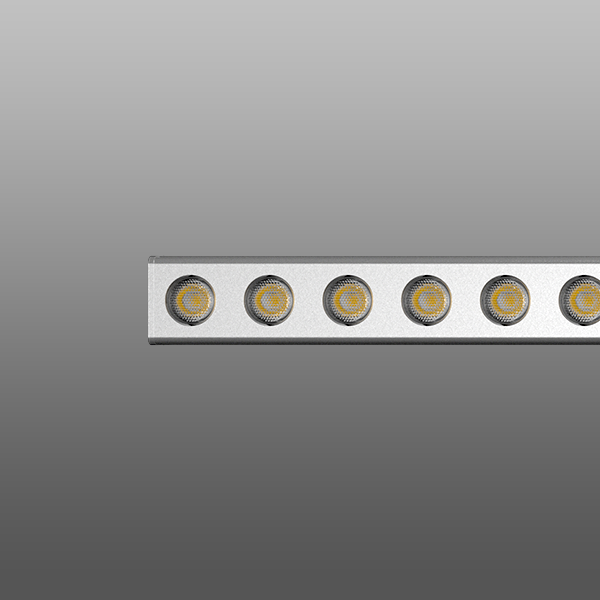

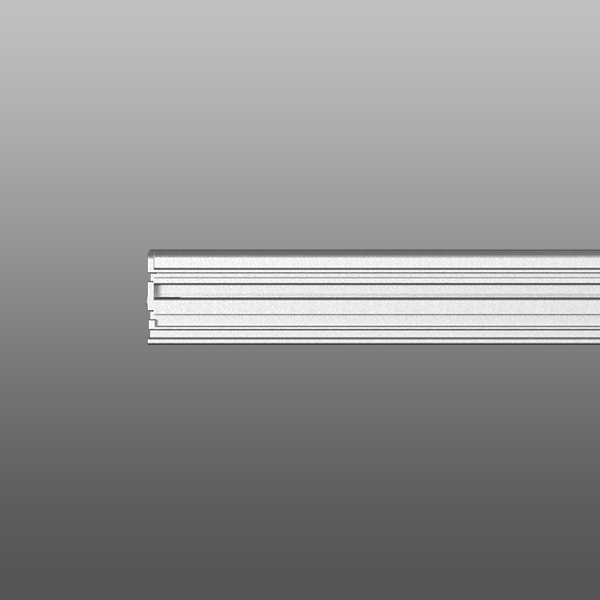

• High brightness LED small power linear wall washer light, wall washing height up to 1~2.5m Perforated aluminum cover design, flat surface, can realize rainwater self-cleaning, reduce internal UV aging, blocking external impact.

• Modular anti-glare baffle plate, can realize quick disassembly and installation on site.

• High-quality polyurethane encapsulation technology is used inside, and the protection level can reach IP 66.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

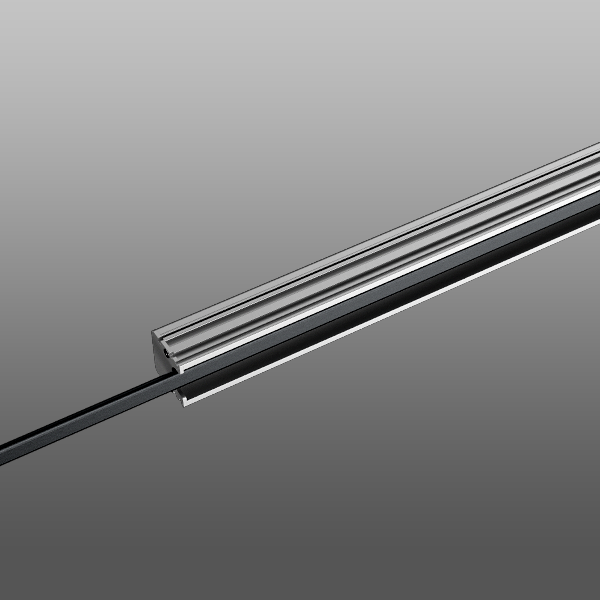

• The bottom concealed wire outlet makes the whole more neat and tidy after installation.

• DC24V power supply ensures effective transmission of power and signal and low line loss.

• Single power circuit can be connected 10 meters in series, reducing wiring and wiring, and reducing construction Difficult construction.

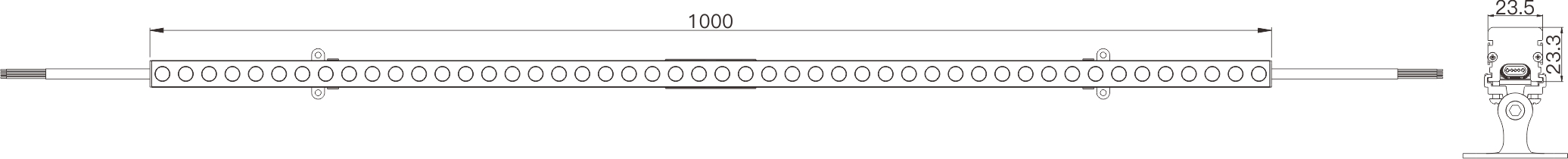

Dimension

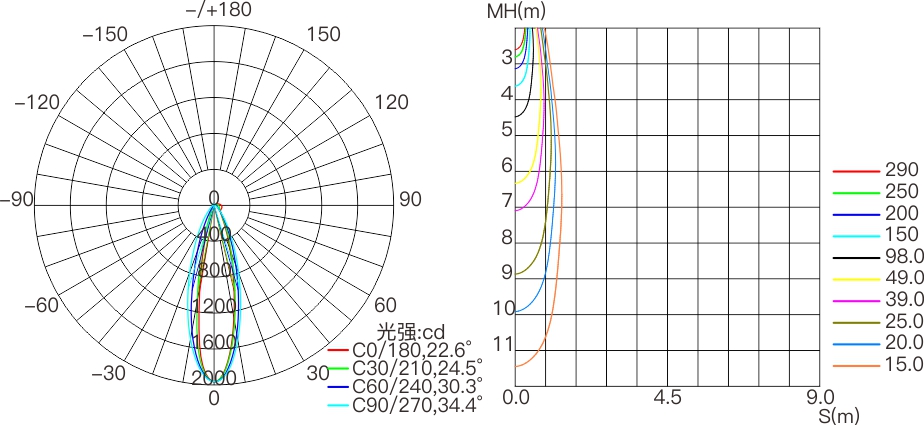

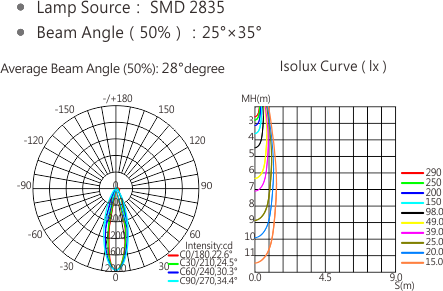

Photometric curve

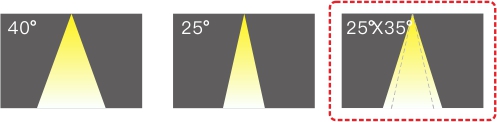

Beam Angle

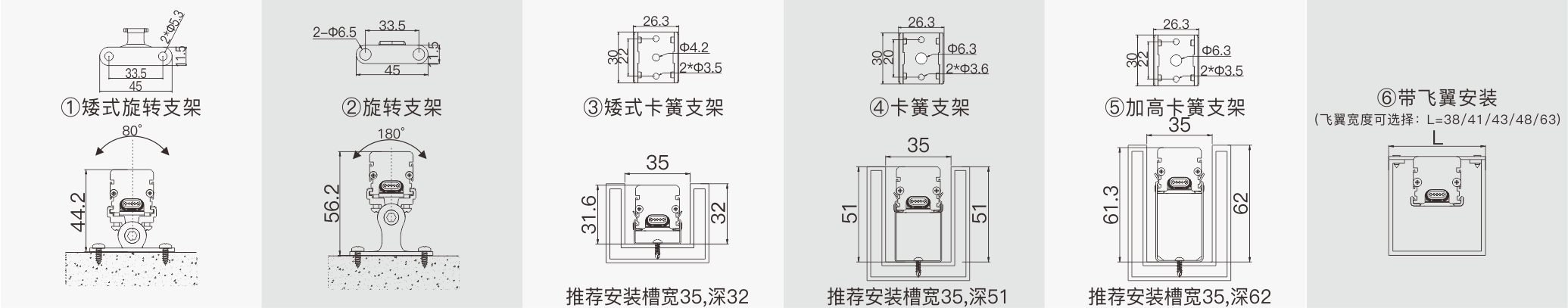

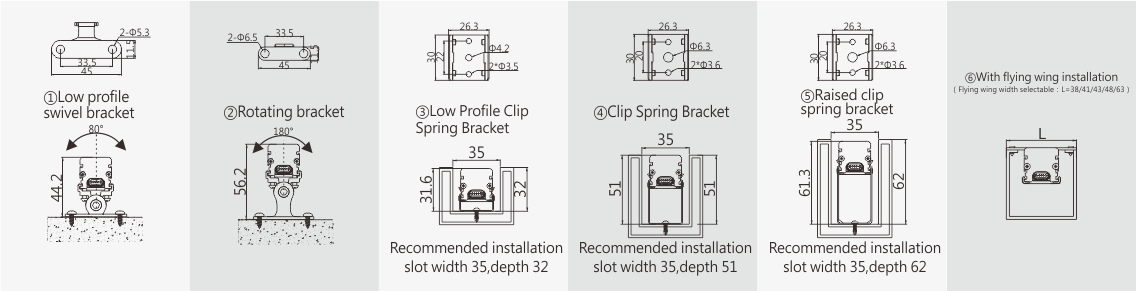

Installation

Features

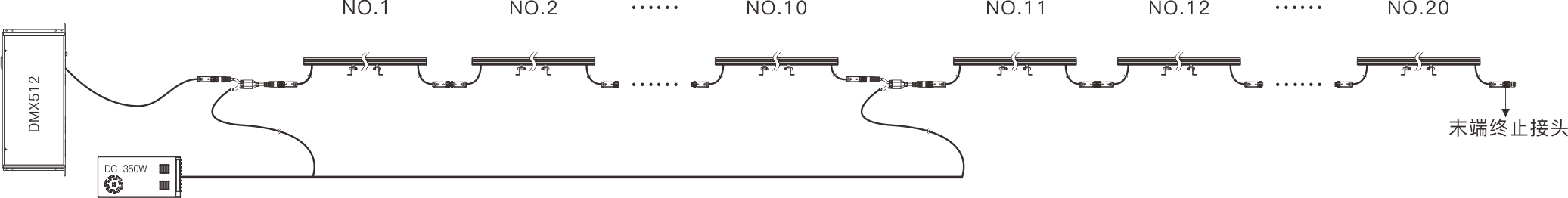

System Schematic Diagram
