CX4A

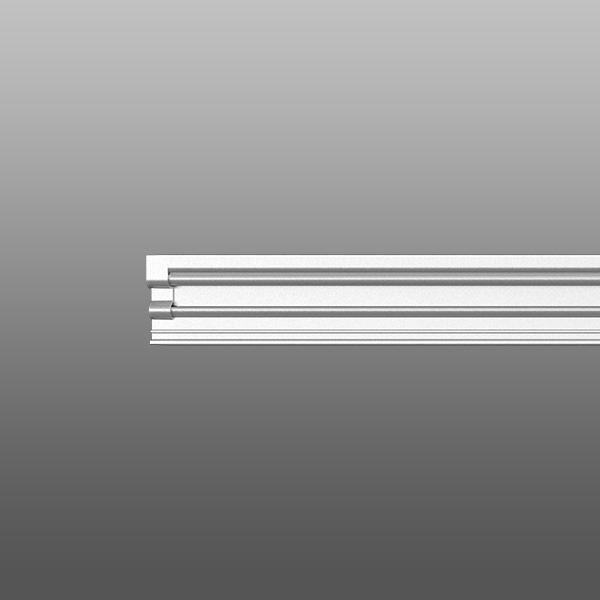

• High Brightness LED video Pixel Line Lamp.

• Highly transparent toughened glass surface, bright light color, can achieve seamless docking.

• Internal use of high-quality polyurethane encapsulation process, protection grade up to IP66.

• Appearance can be customized according to the color of the curtain wall, so that products better into the building.

• The bottom of the hidden line, after the installation of the overall more clean.

• DC24V power supply, ensure feed, effective signal transmission, low line loss.

• A single power circuit can be connected in series for 10 meters, reducing wiring, wiring, reducing the difficulty of construction.

Dimension

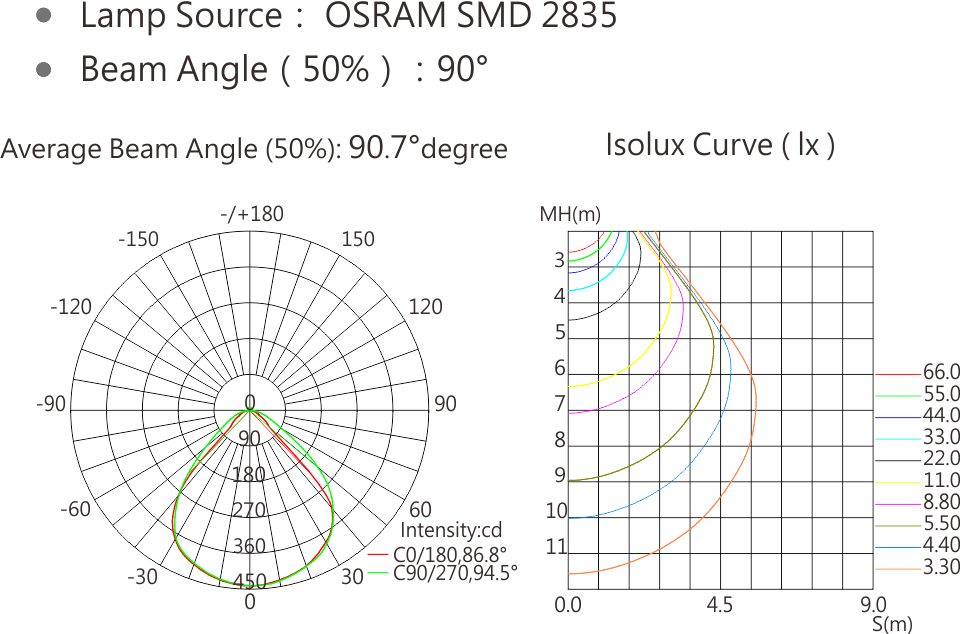

Photometric curve

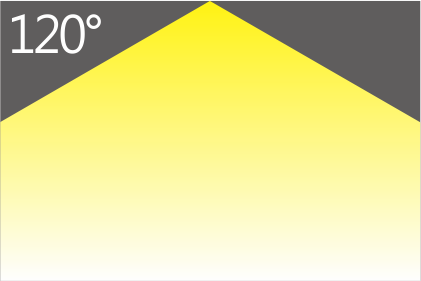

Beam Angle

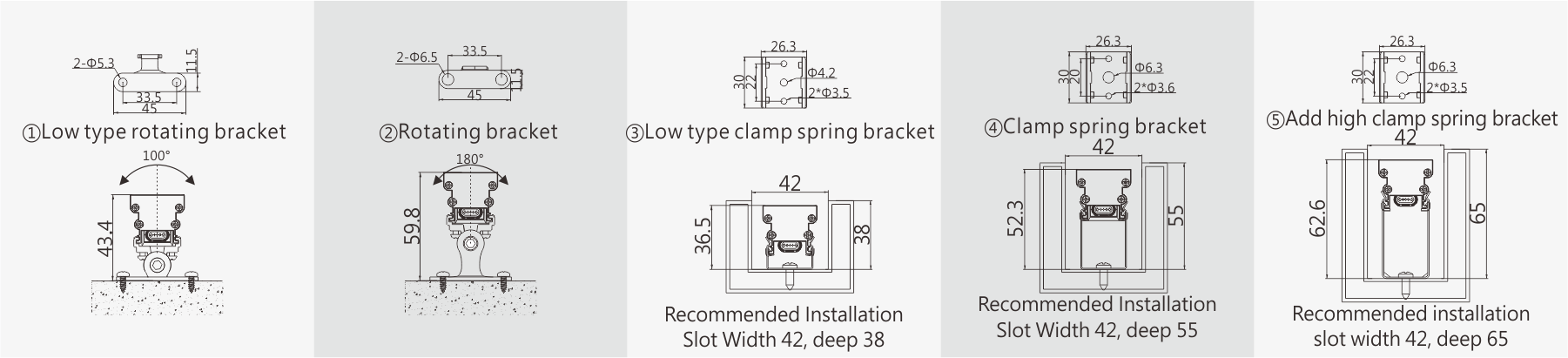

Installation

Features

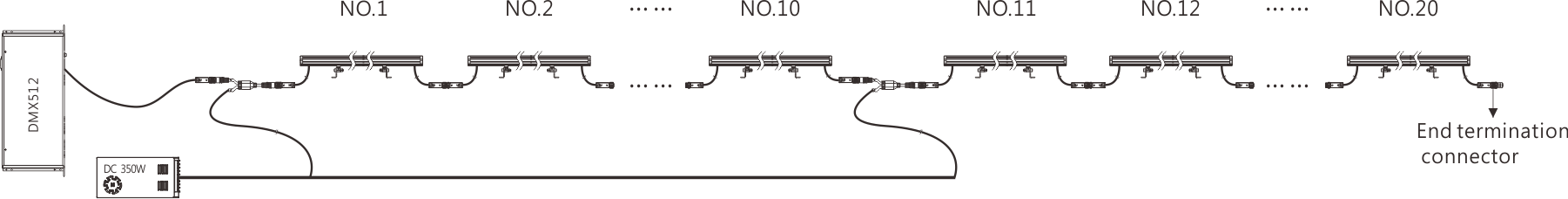

System Schematic Diagram
