LW-1103C

• Simple installation structure for easy construction, ensuring secure and stable fixture mounting.

• The luminaire body utilizes high-strength, high-thermal-conductivity aerospace-grade titanium-aluminum alloy for enhanced stability.

• Free from installation restrictions, supports discontinuous splicing, reducing installation difficulty and saving lighting costs.

• The light source delivers highly consistent color and brightness, paired with custom-designed asymmetric optical lenses for high light efficiency utilization.

• Uniform andsmooth illumination with no flickering visible on smartphone recordings.

• Wide-area illumination with minimal brightness variation between top and bottom of the lit surface, ensuring strong uniformity.


  Application
  Ideal for outdoor building facades, bridges, ancient monument floodlighting, and wall washing applications.


  Optionals

  Color Temperature：2200K、2700K、3000K、3500K、4000K、5000K
  Length：1000mm、500mm、300mm
  Beam Angle：20°X35°

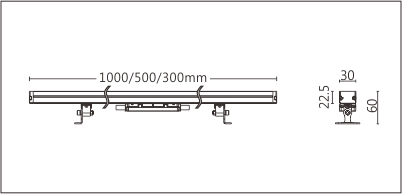

Dimension

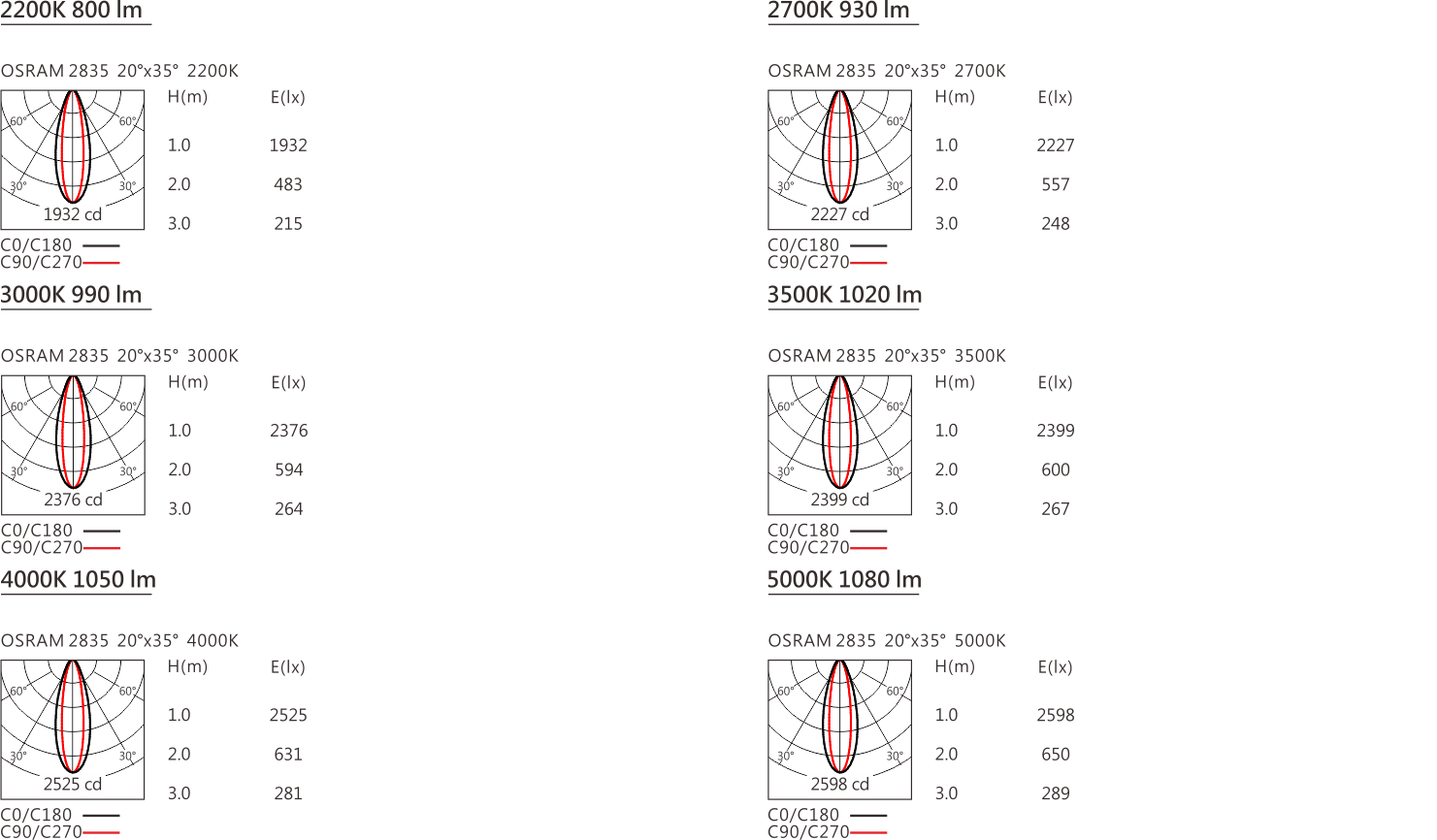

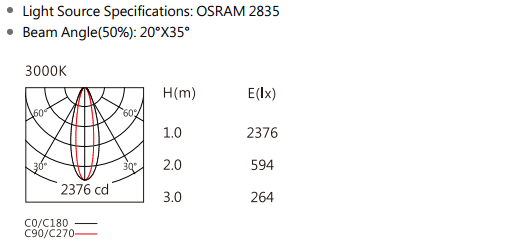

Photometric curve

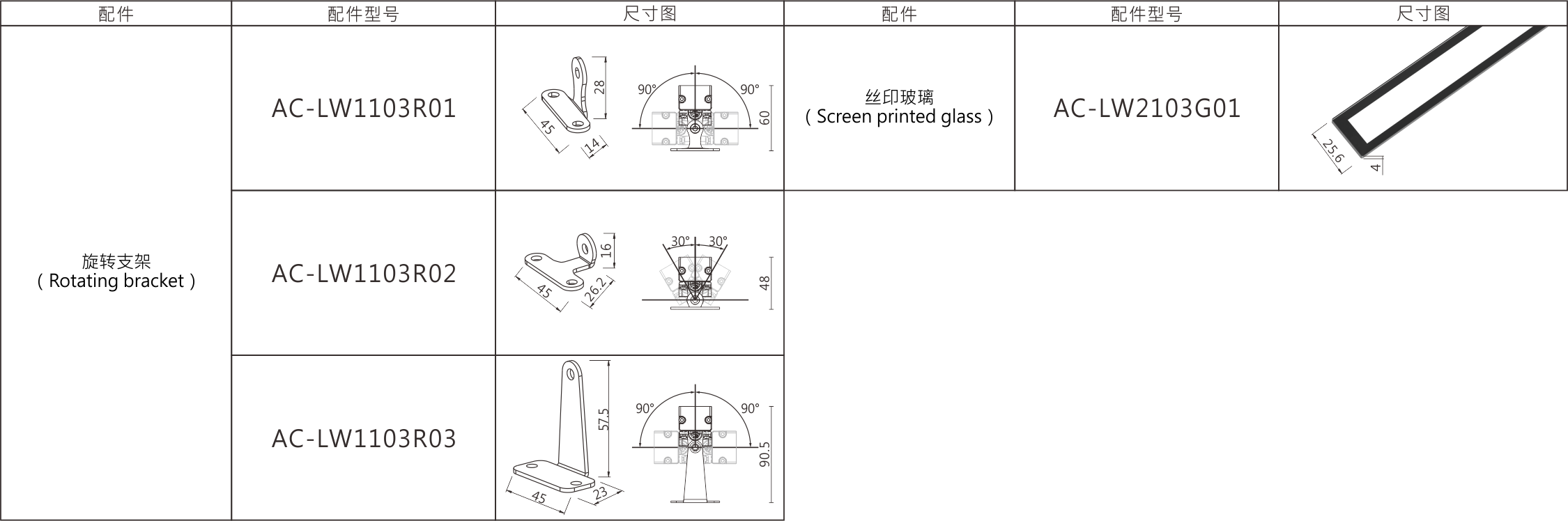

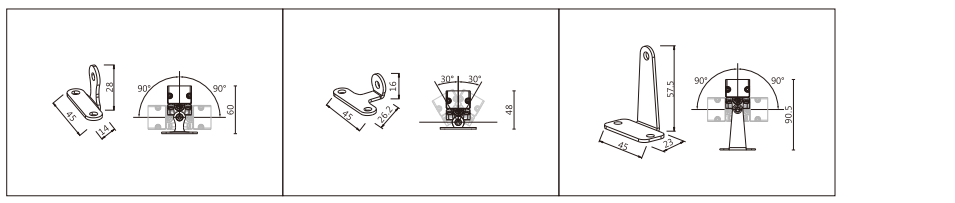

Accessories




Features

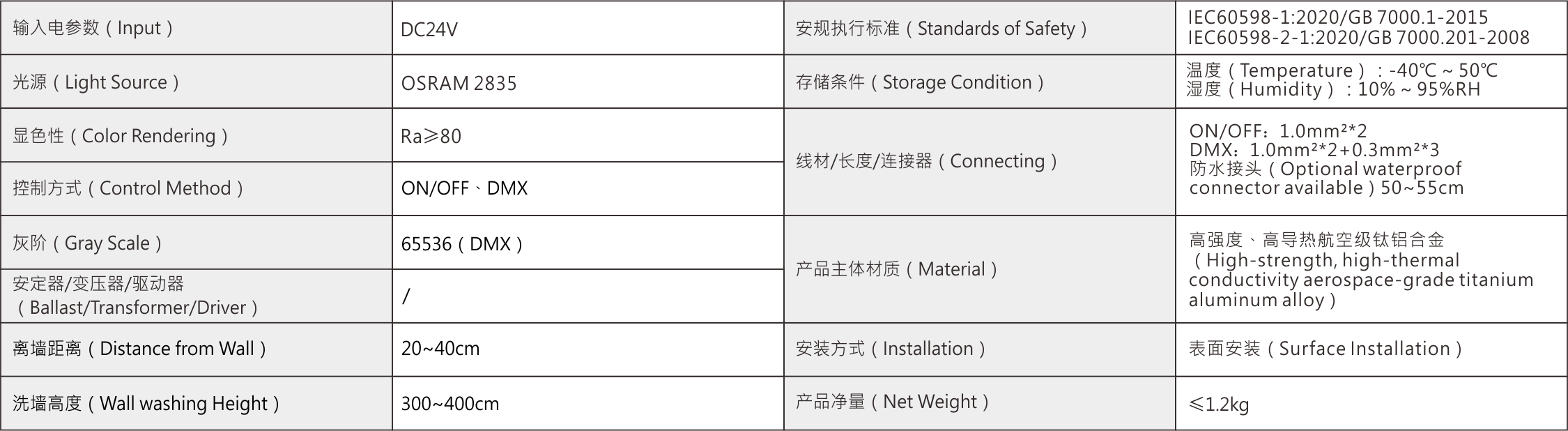

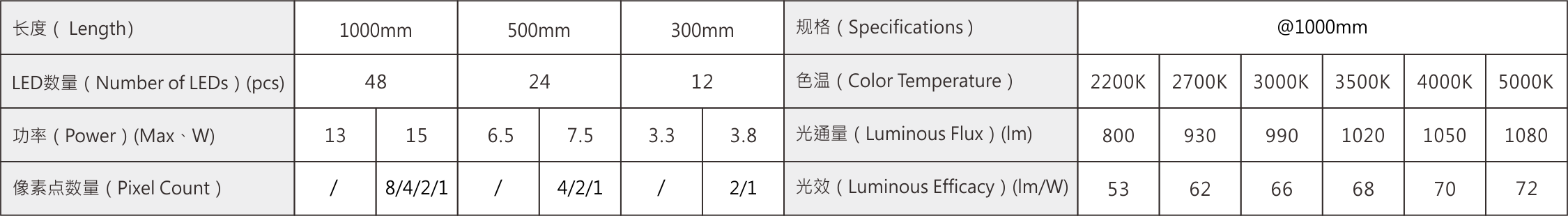

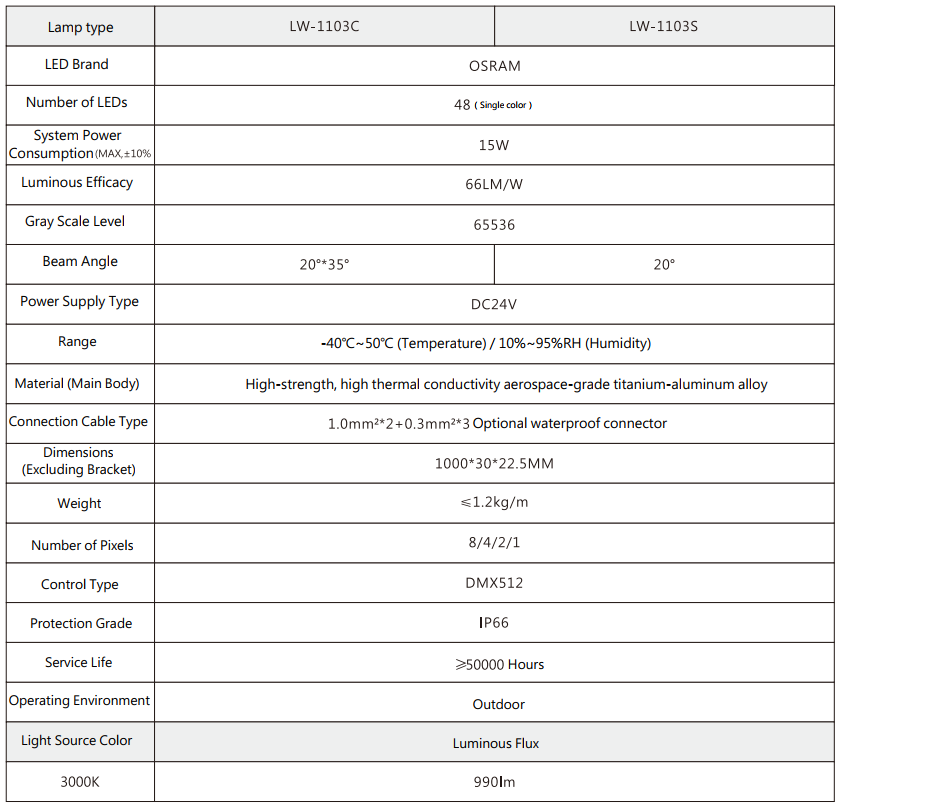

Length selection and Optical parameters
