LK1103N-24S3

• Simple mounting structure for easy installation, ensuring secure and stable fixture placement.

• The luminaire body is made of high-strength extruded aluminum for enhanced stability.

• Rotatable brackets or other fixed brackets are available to suit various outdoor engineering applications.

• Highly efficient light distribution angle ensures illumination within the effective range.

• Uniform and consistent color with high light efficiency utilization.

• Even and smooth brightness, flicker-free for smartphone recordinEven and smooth brightness, flicker-free for smartphone recording.



  Application
  Suitable for wall grazing illumination in outdoor applications such as building facades, bridges, and ancient architectural floodlighting.


  Optionals

  Color Temperature：3000K、4000K
  Length：1200mm、100mm、500mm
  Beam Angle：20°、30°、45°、60°、25°X45°

Dimension

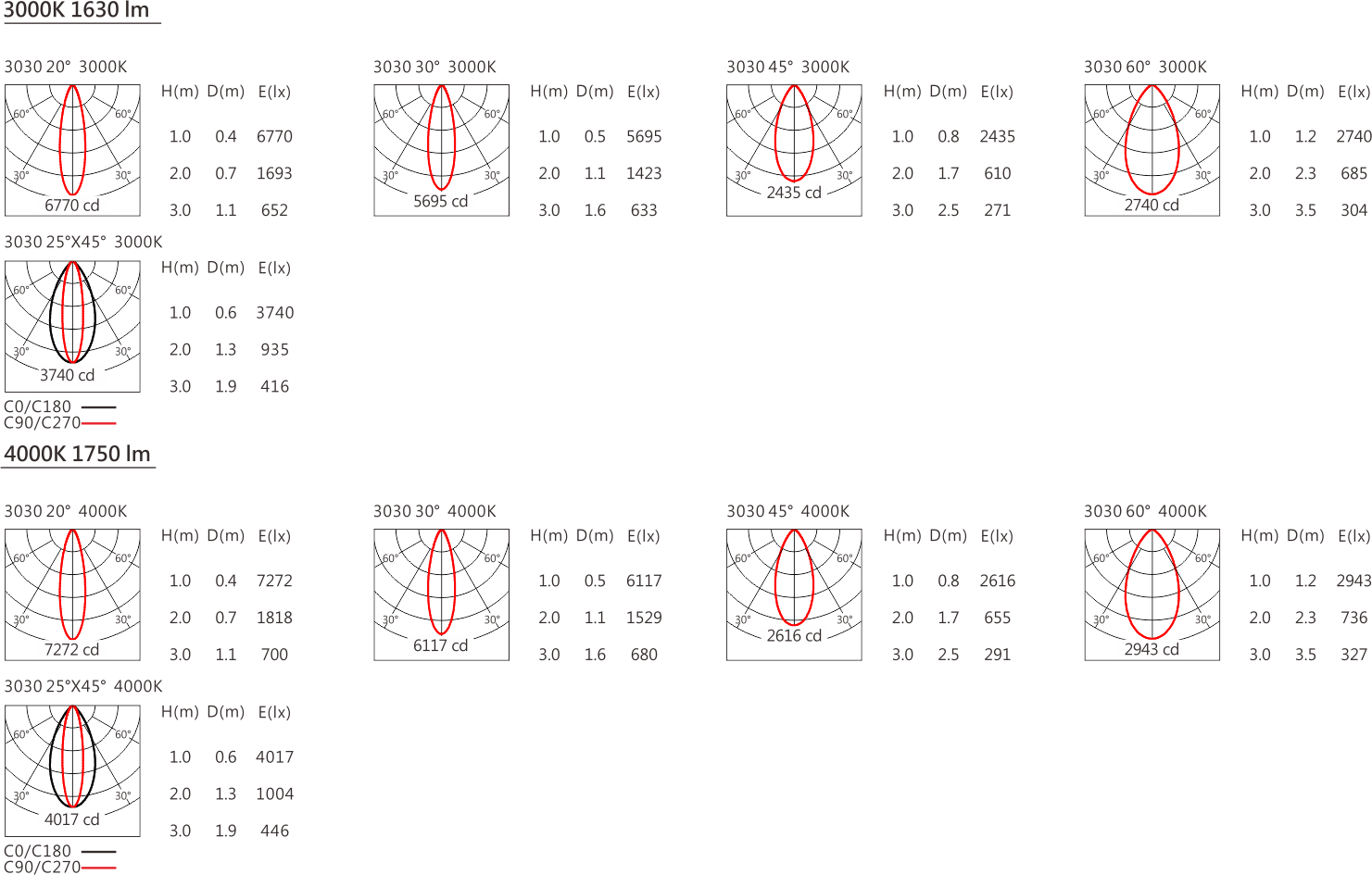

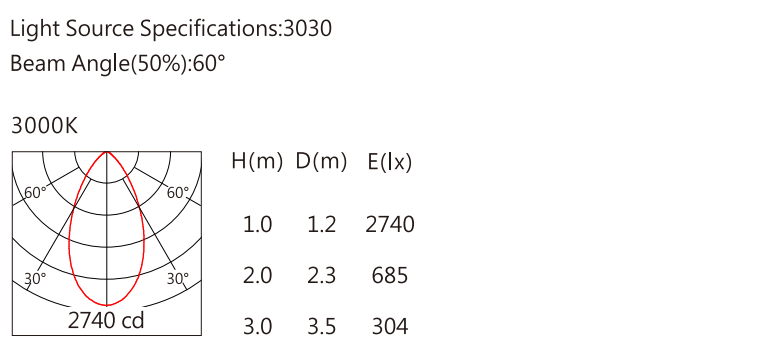

Photometric curve

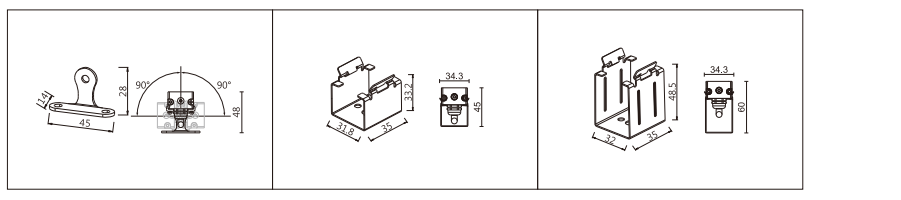

Accessories


Features

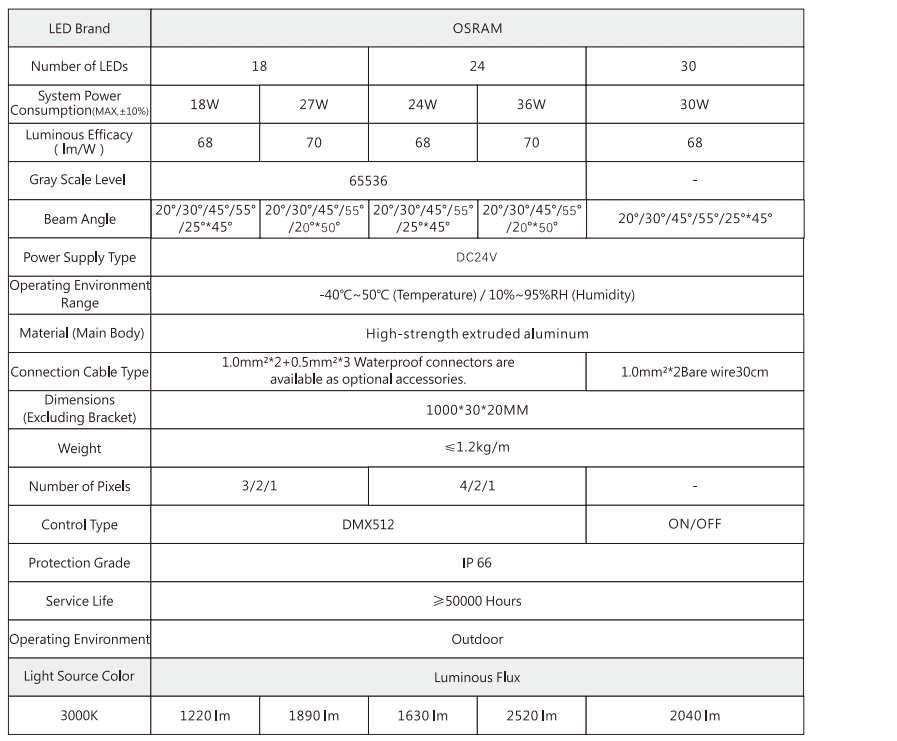

Length selection and Optical parameters
