LC-A310

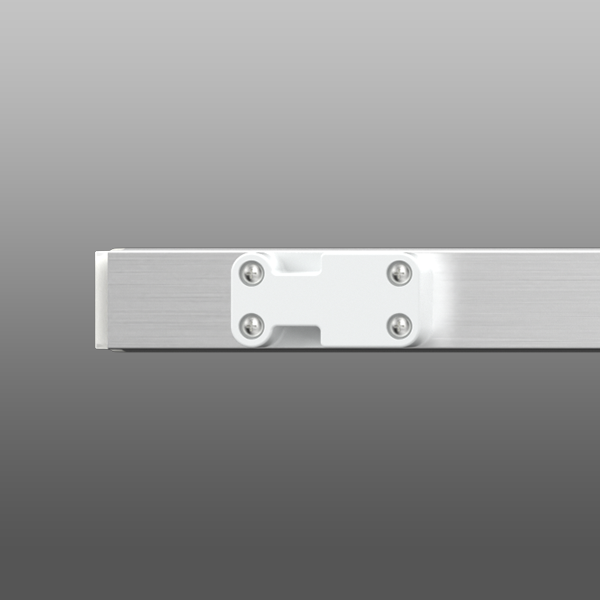

• Simple mounting structure for easy installation, ensuring secure and stable fixture placement.

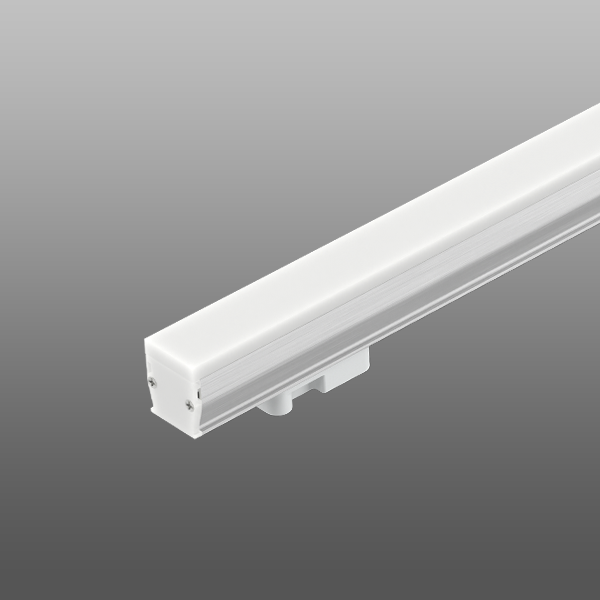

• Compact and elegant high-brightness LED linear media luminaire.

• Specifically designed for contour linear lighting in recessed slots.

• High-transmittance PC diffuser cover ensures uniform light mixing and seamless splicing.

• High-strength extruded aluminum structure with excellent heat dissipation.

• Fully potted with polymer silicone material for waterproof and anti-static protection.



  Application
  Ideal for outdoor building facades, bridges, ancient monument floodlighting, and wall washing applications.


  Optionals

  Color Temperature：2700K、3000K、3500K、4000K、5000K

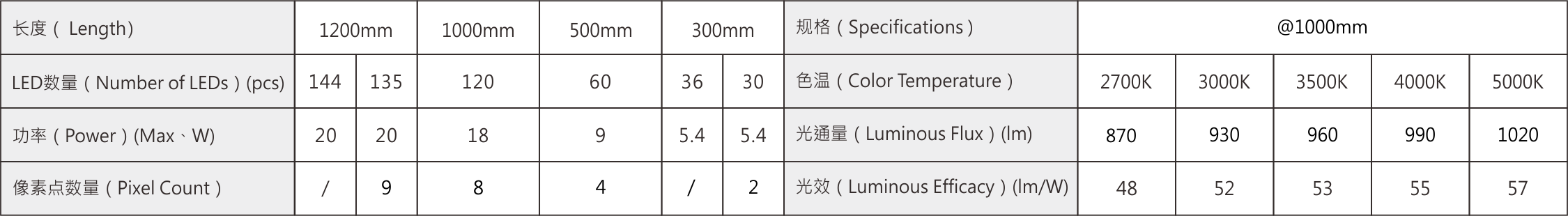

  Length：1200mm、1000mm、500mm、300mm
  Beam Angle：120°

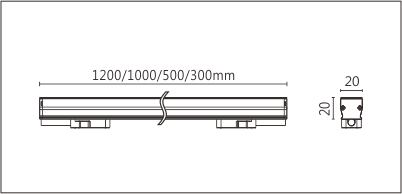

 Dimension

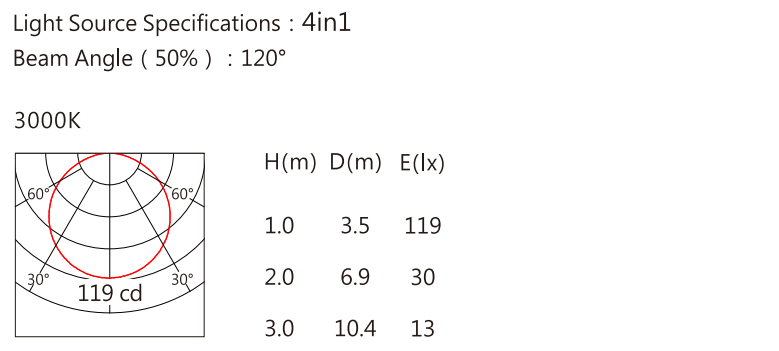

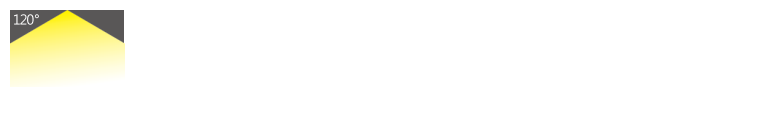

 Beam  Angle   Diagram

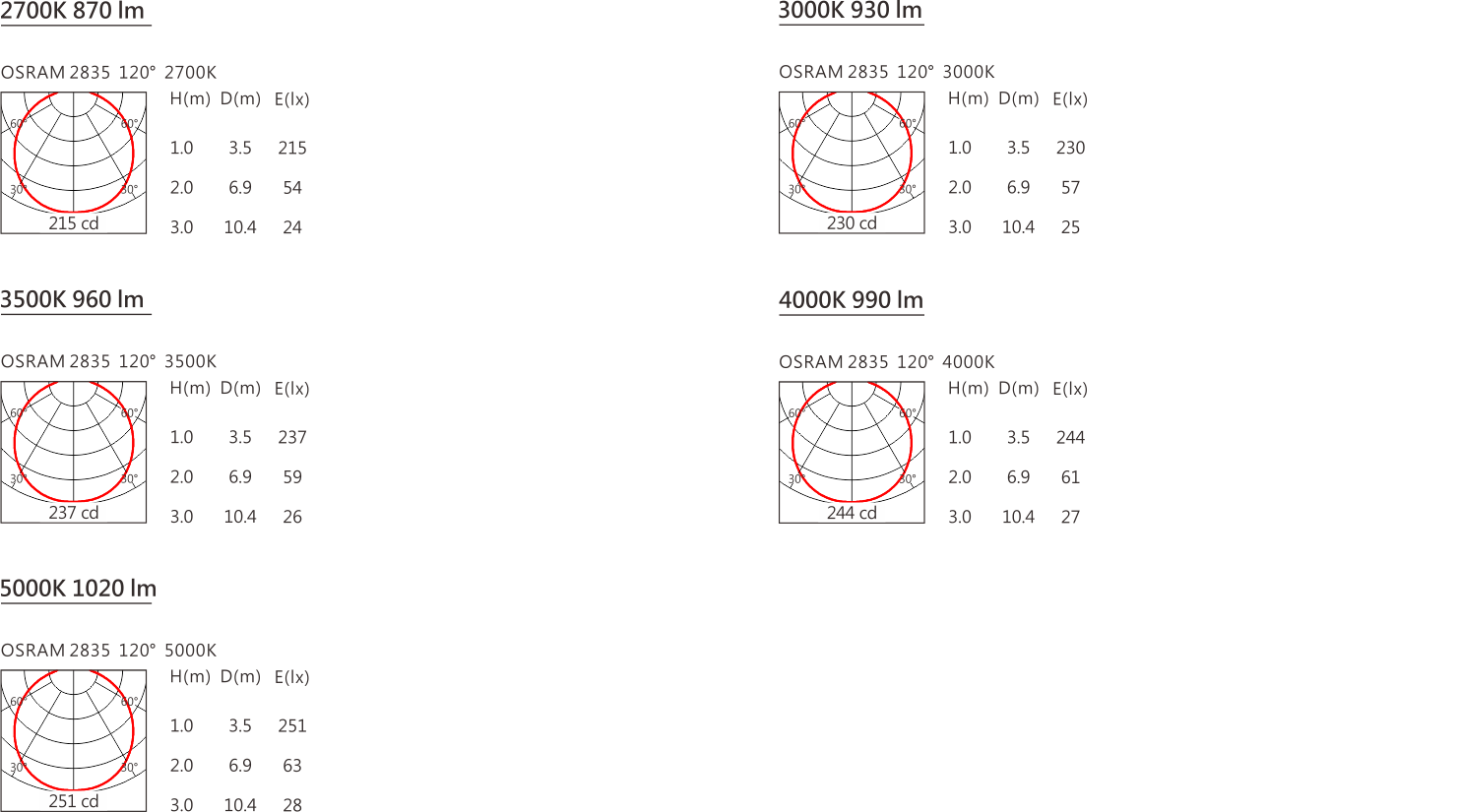

Photometric curve

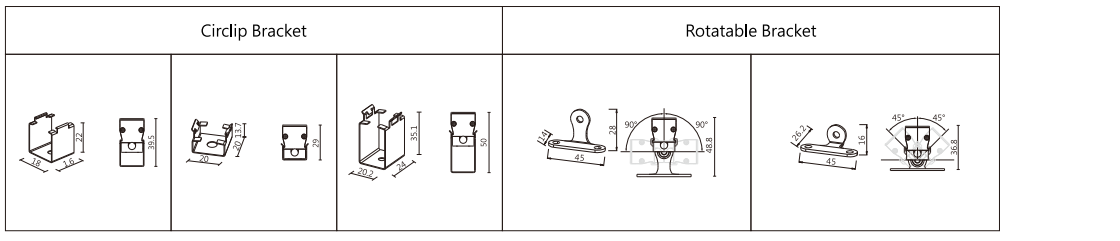

Accessories
