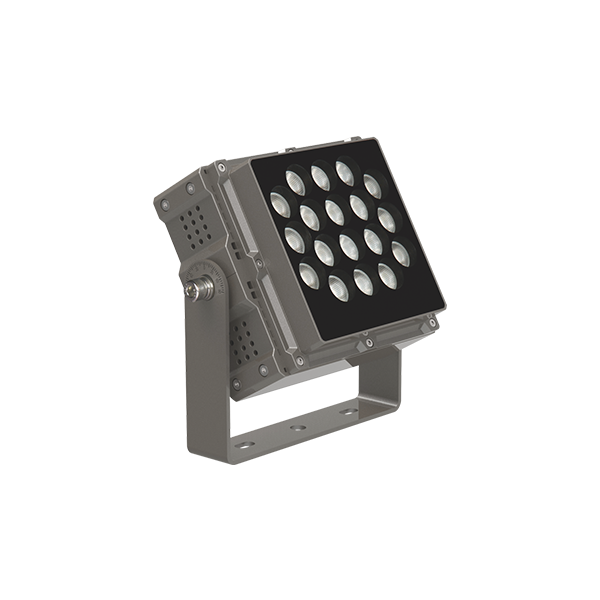

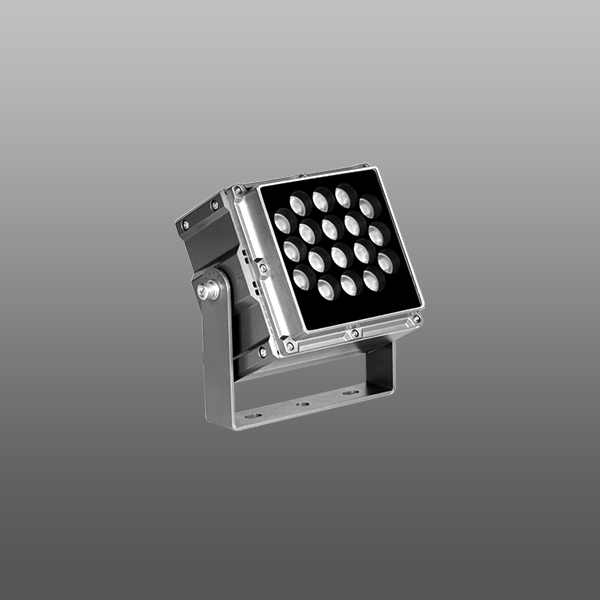

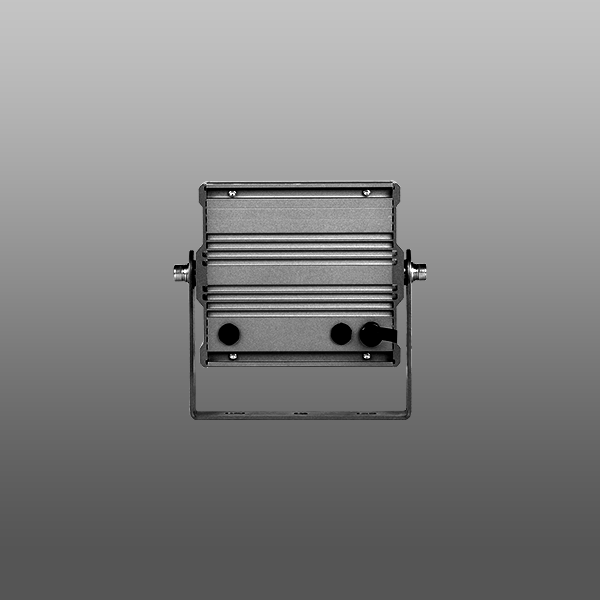

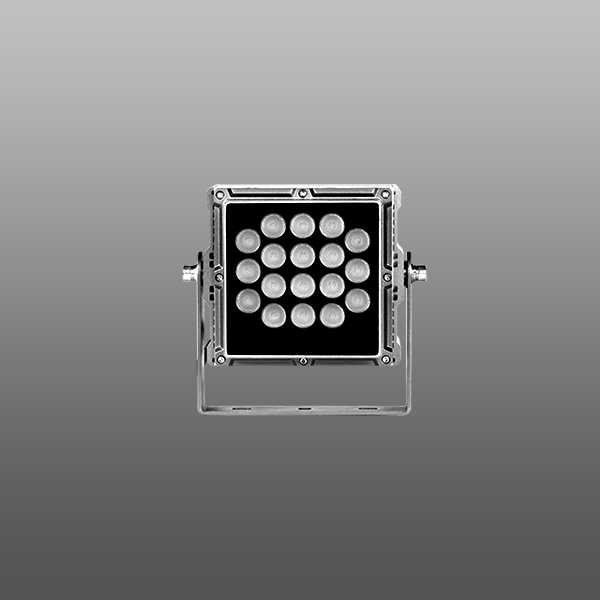

TF1D 1X1

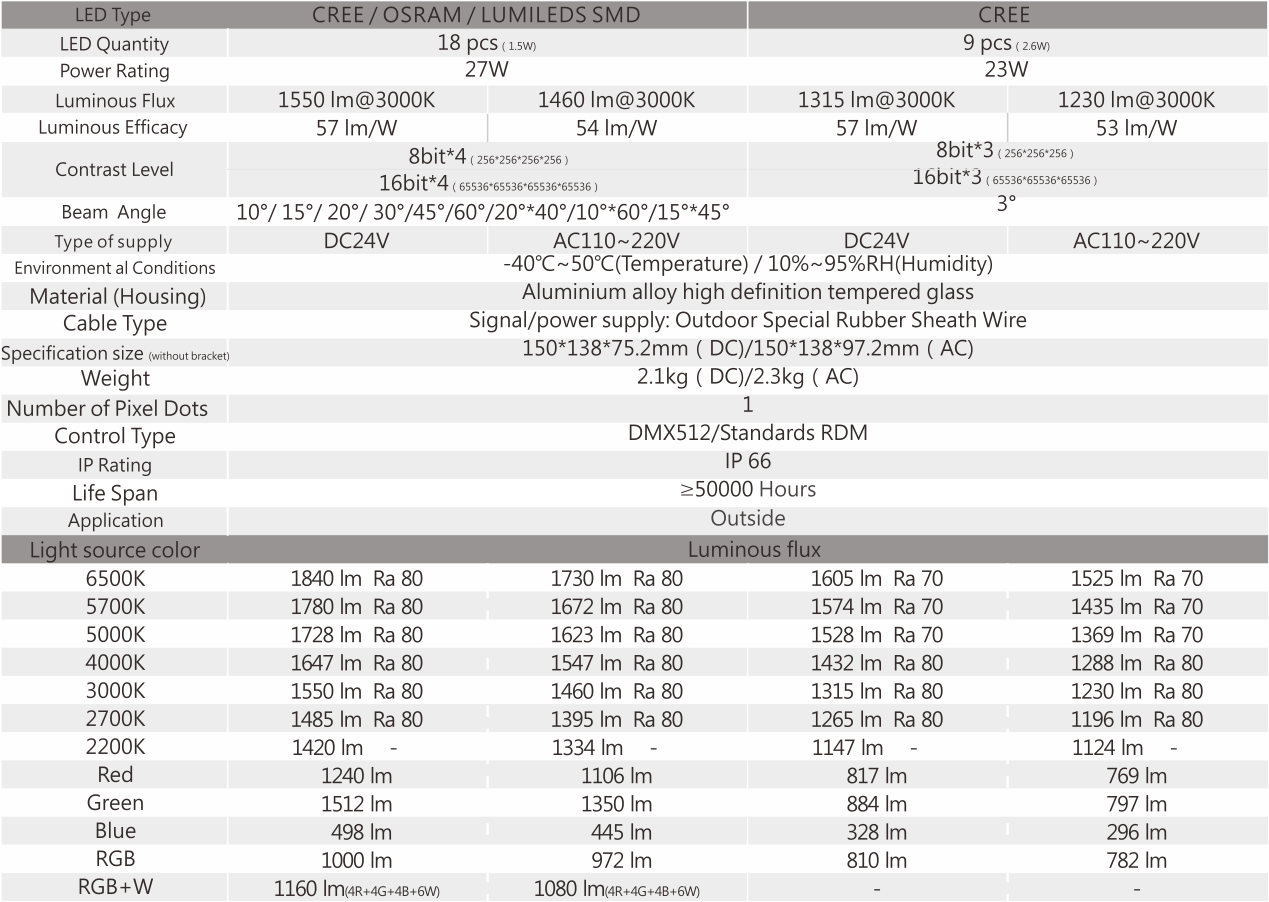

Power:23W~27W Beam Angle: 3°、10°、15°、20°、30°、45°、60°、20°*40°、10°*60°、15°*45° IP: 66 Color Temperature: 2200K~6500K




  • RGBW high-power projection lamp, suitable for outdoor high-grade, high-demand buildings, park landscape, ancient buildings floodlight use, good light mixing effect.

  • Alloy structure, two-way convection heat dissipation design, with good heat dissipation performance.

  • BUILT-IN CONSTANT-CURRENT DRIVE CIRCUIT: 1 Lamp high-efficiency Luminous; 2 wide voltage stability, improve the ability of anti-surge, avoid external supply voltage changes, resulting in flashing lamps.

  • Anti-glare honeycomb design.

  • Anti-glare angle up to 30 ° , a variety of luminous angle can be selected. AC110 ~ 220V or DC24V input.

  • Appearance can be customized according to the color of the curtain wall, so that products better into the building.

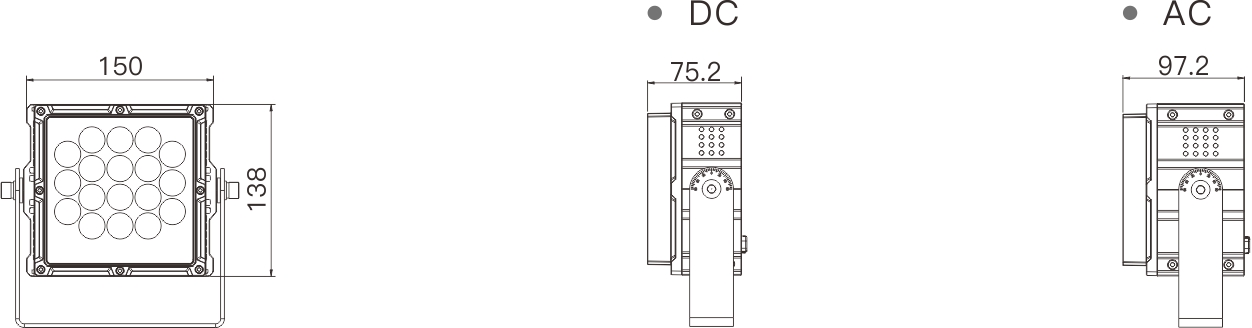

16836129897661081.jpg Dimension



TF1D 1×1 室外中文型录——产品尺寸圖.jpg

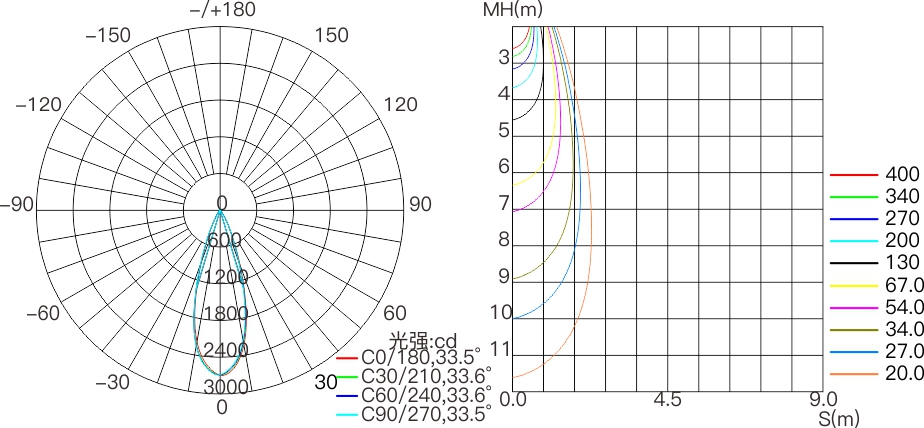

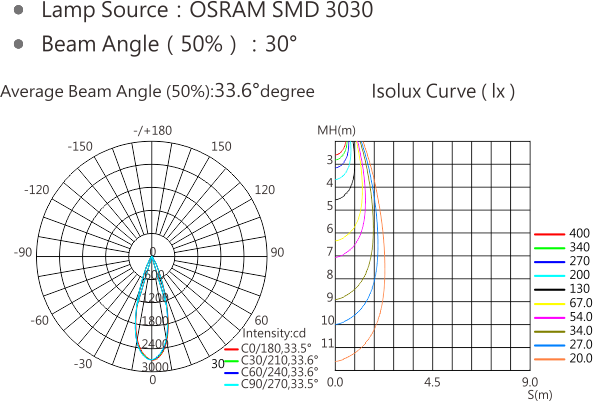

16836129897661081.jpg Photometric curve

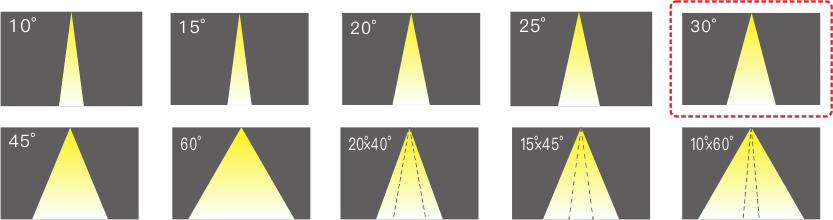

16836129897661081.jpg Beam Angle



TF1D 1×1 室外中文型录——光束角示意图.jpg

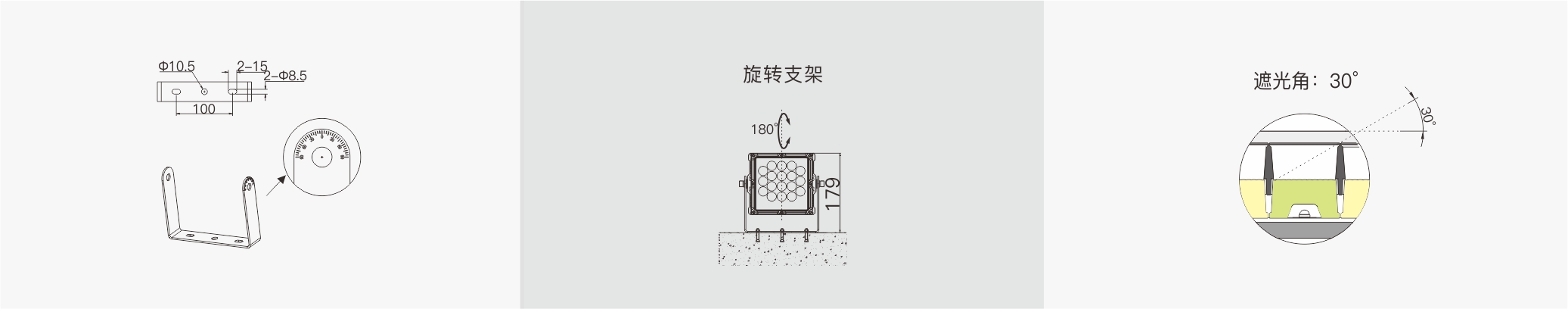

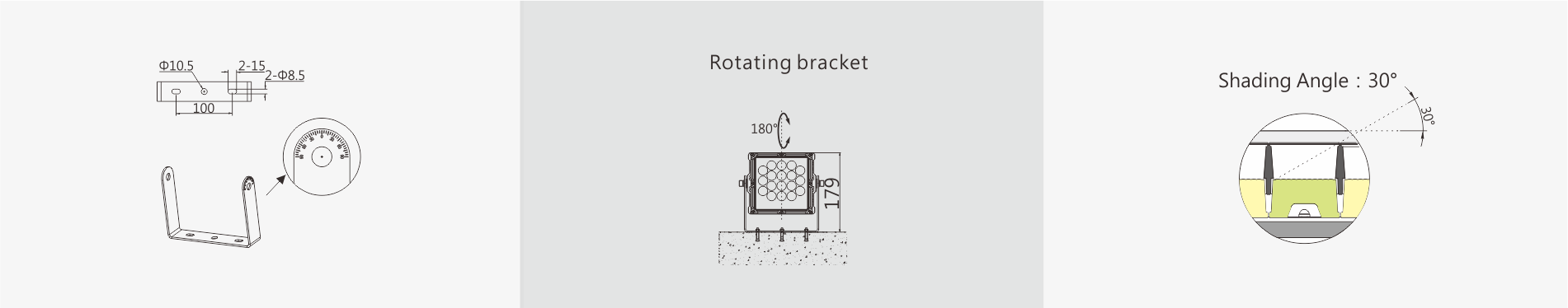

16836129897661081.jpg Installation

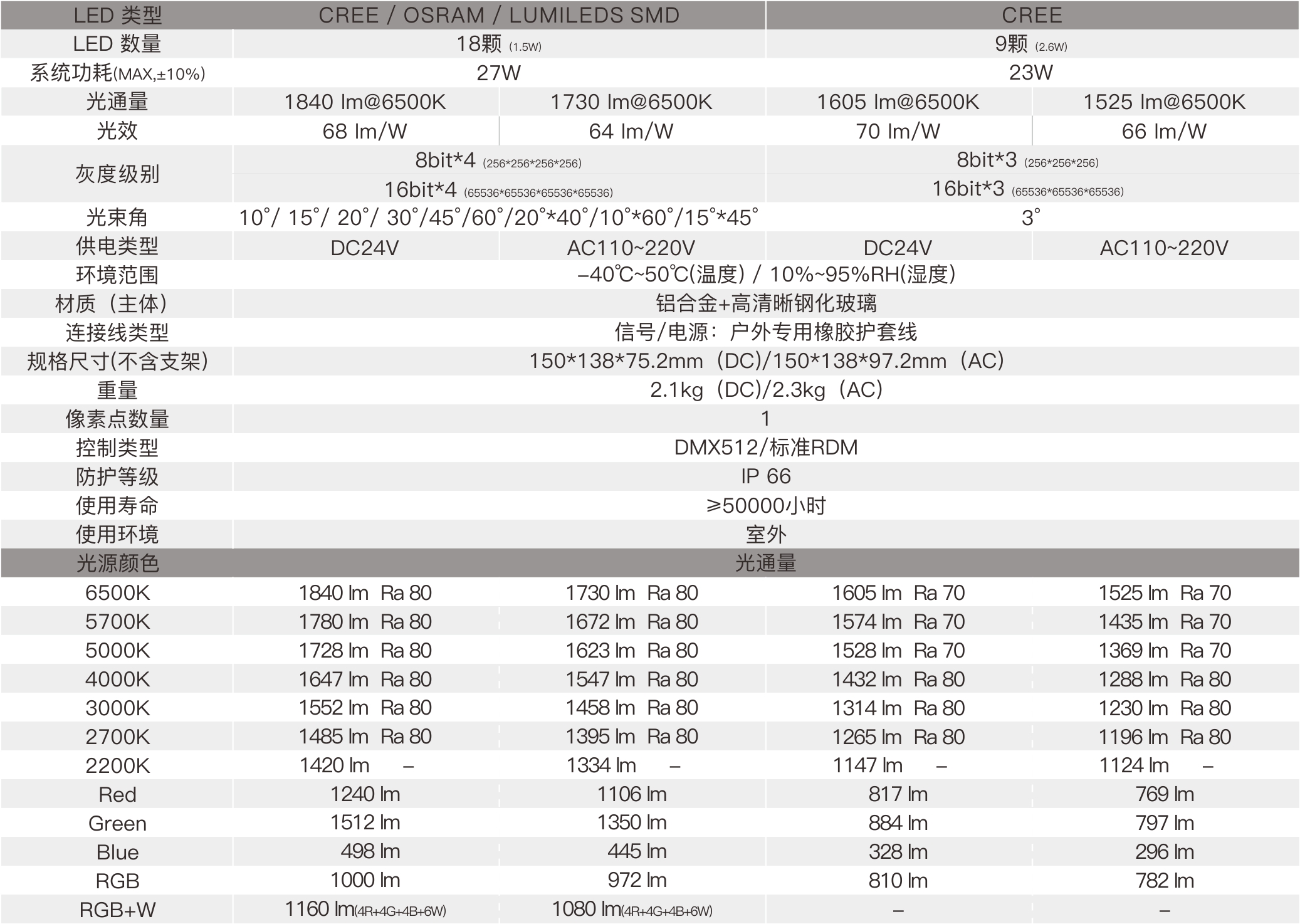

16836129897661081.jpg Features

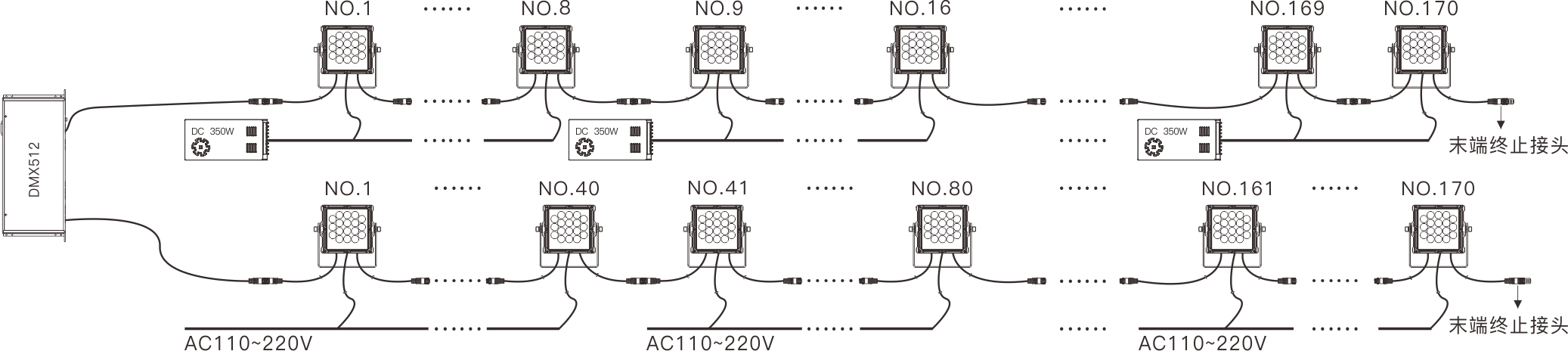

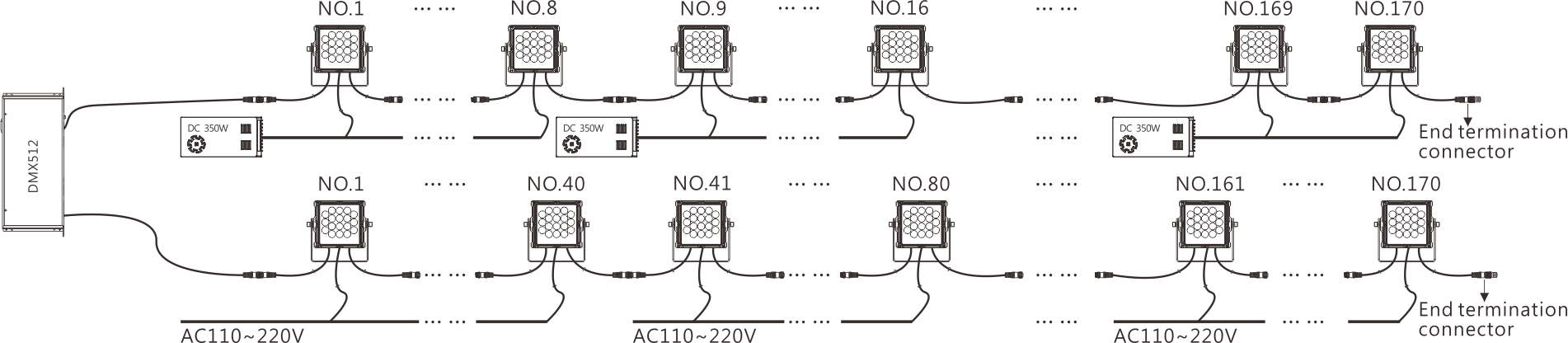

16836129897661081.jpg System Schematic Diagram
