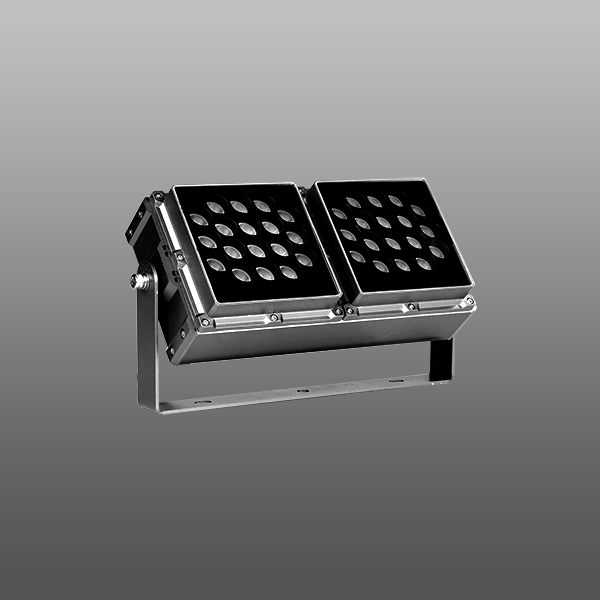

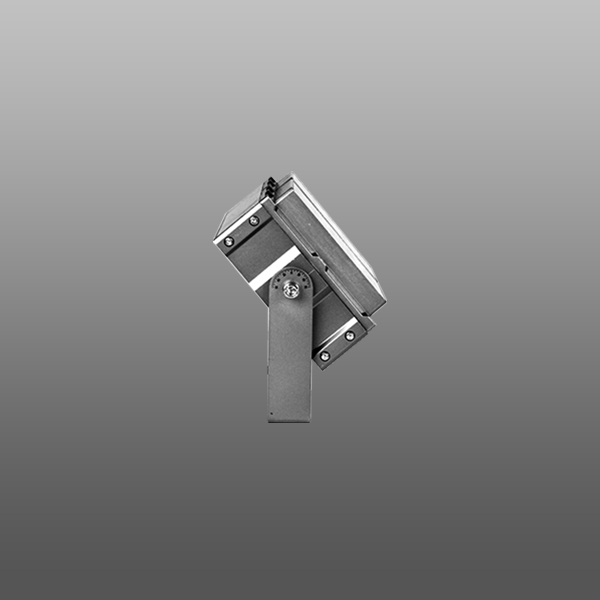

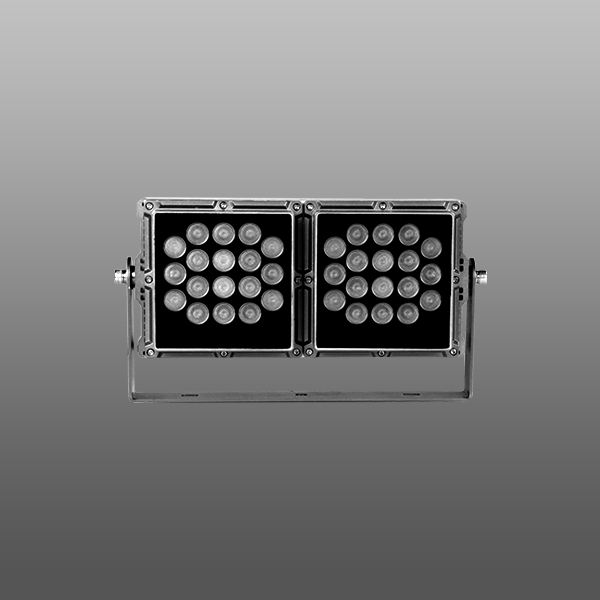

TF1D 1X2

• RGBW high-power projection lamp, suitable for outdoor high-grade, high-demand buildings, park landscape, ancient buildings floodlight use, good light mixing effect.

• Aluminum Alloy structure, two-way convection heat dissipation design, with good heat dissipation performance.

• BUILT-IN CONSTANT-CURRENT DRIVE CIRCUIT: 1 Lamp high-efficiency Luminous; 2 wide voltage stability, improve the ability of anti-surge, avoid external supply voltage changes, resulting in flashing lamps.

• Anti-glare honeycomb design.

• Anti-glare angle up to 30 ° , a variety of luminous angle can be selected. AC110 ~ 220V or DC24V input.

• Appearance can be customized according to the color of the curtain wall, so that products better into the building.

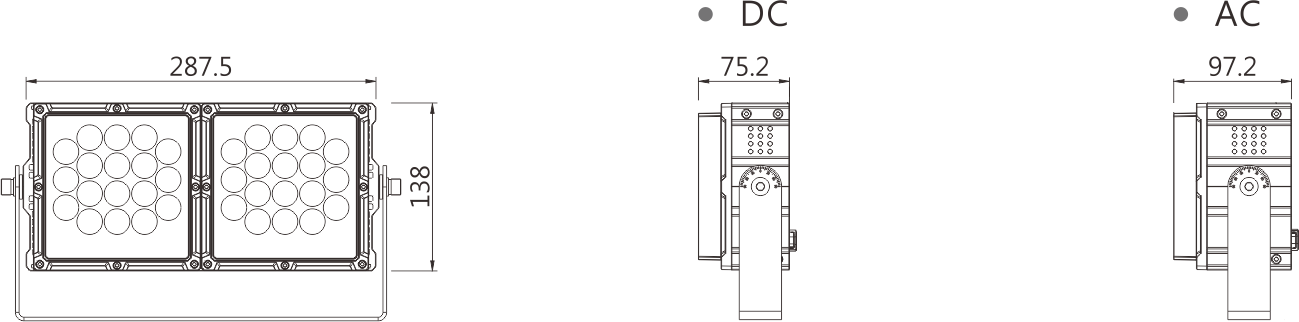

Dimension

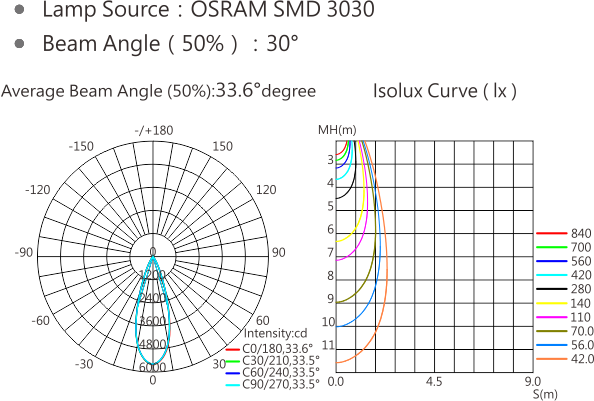

Photometric curve

Beam Angle

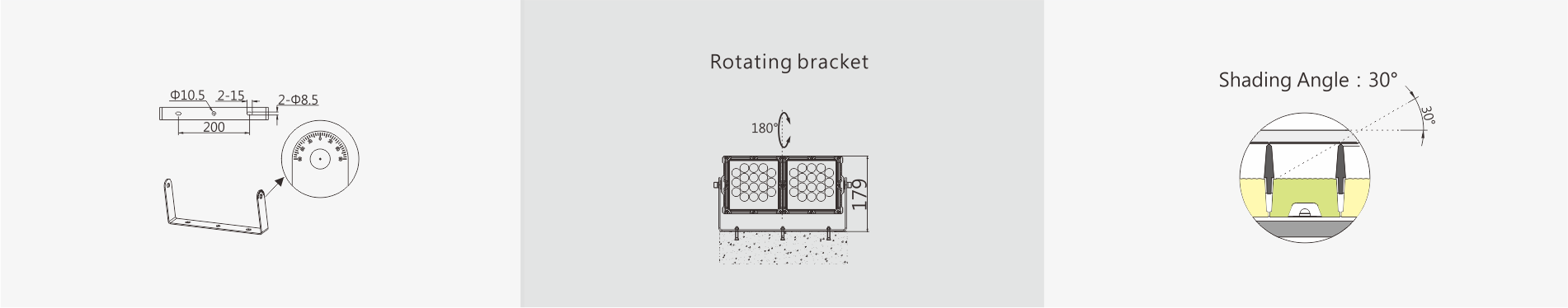

Installation

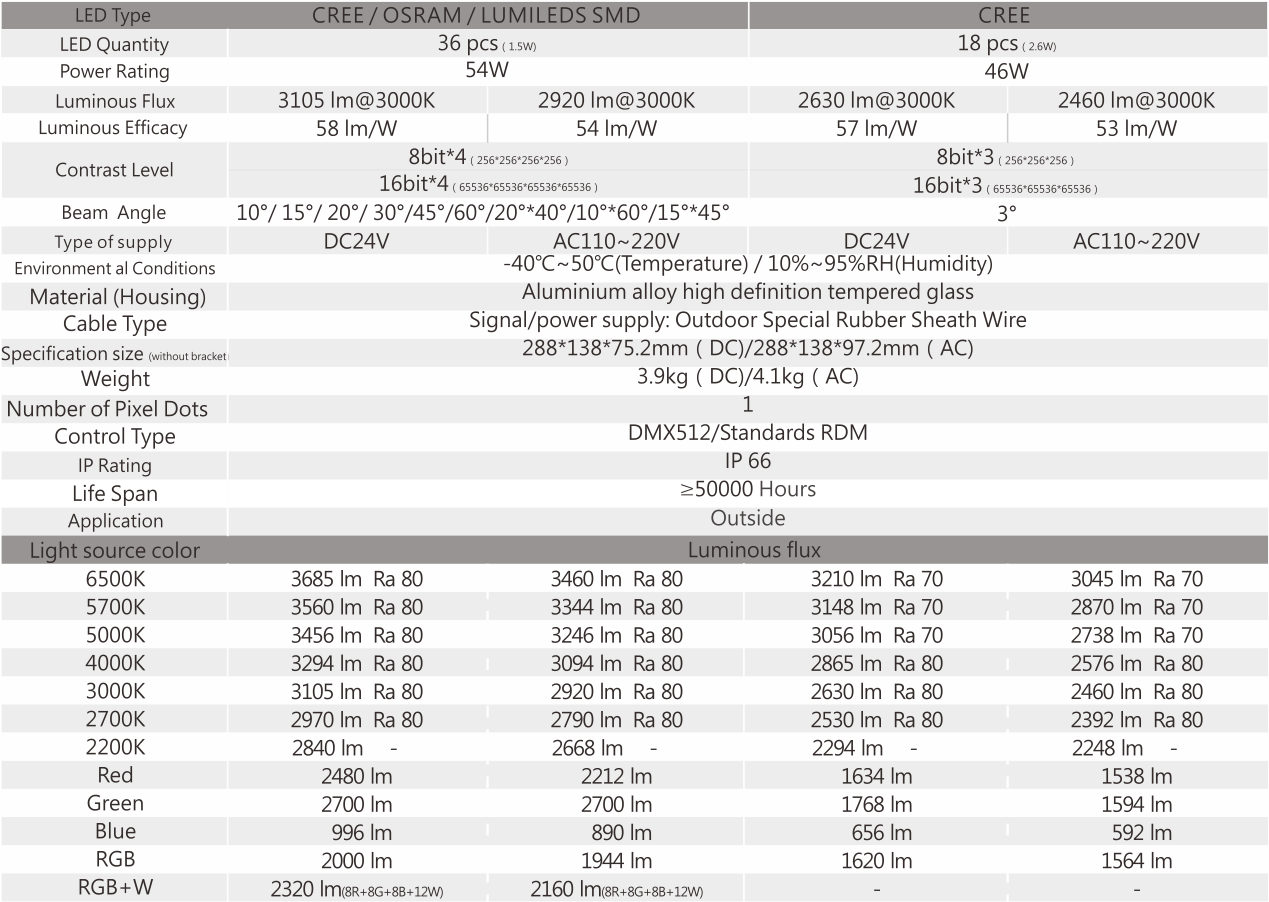

Features

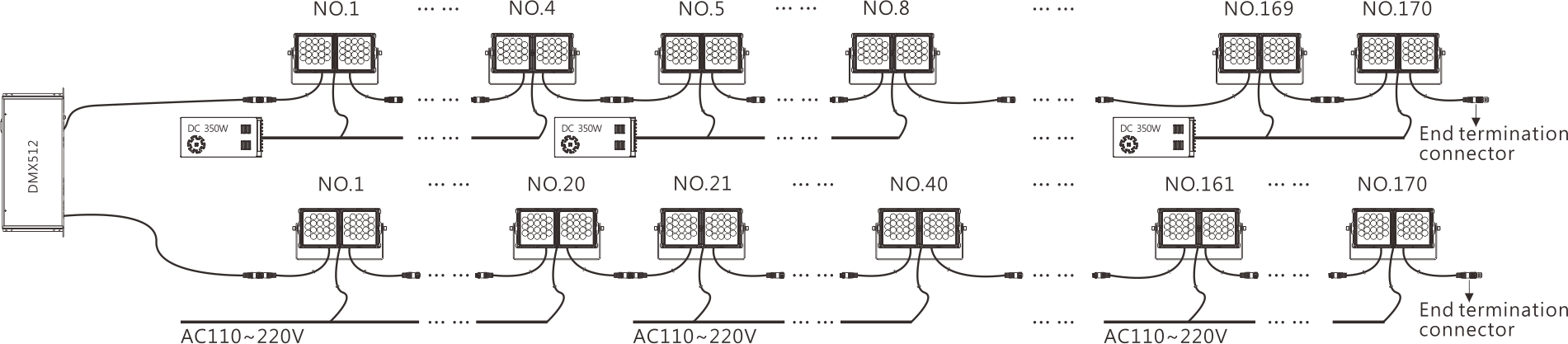

System Schematic Diagram
