TF1D 1X4

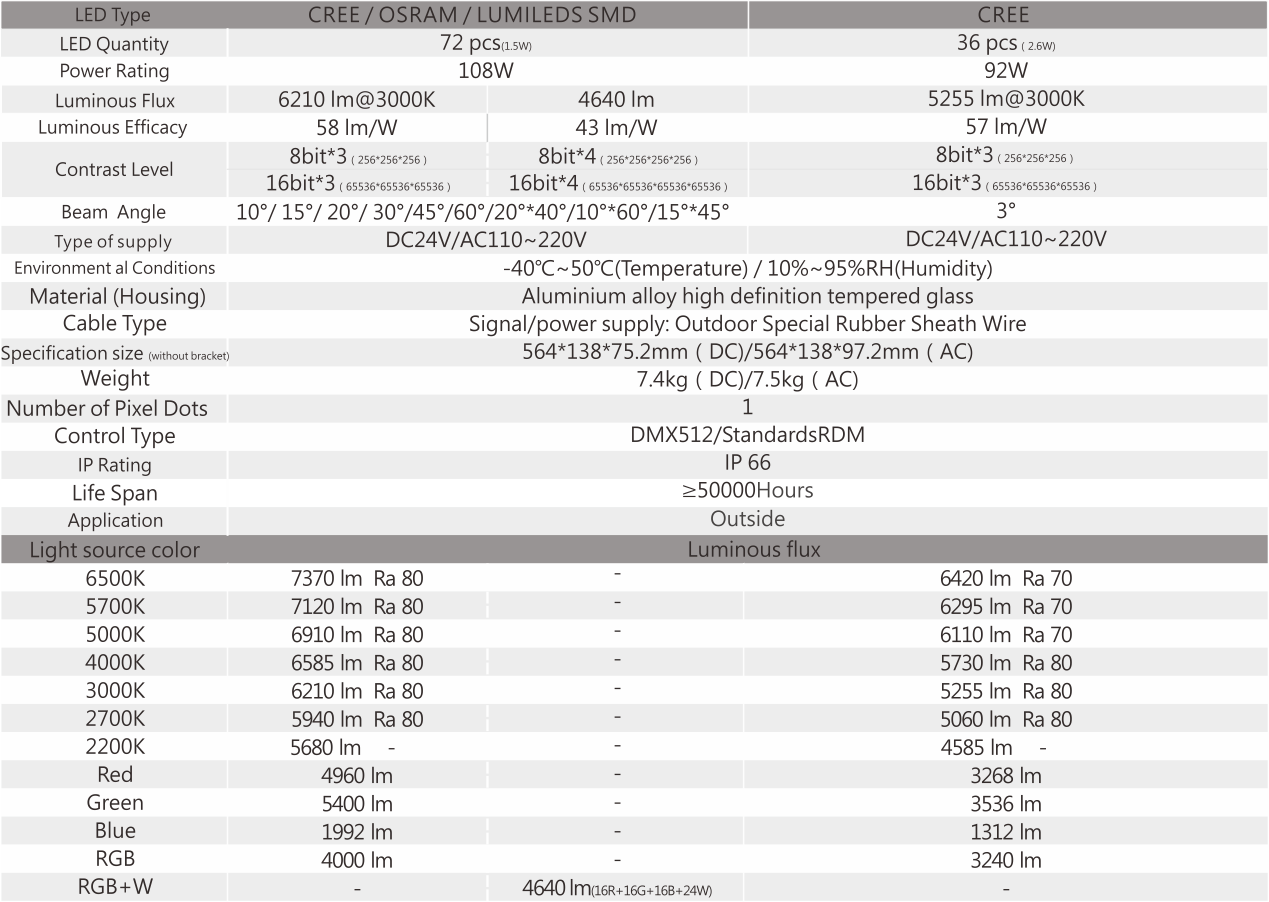

Power:92W~108W Beam Angle: 3°、10°、15°、20°、30°、45°、60°、20°*40°、10°*60°、15°*45° IP: 66 Color Temperature: 2200K~6500K




  • RGBW high-power projection lamp, suitable for outdoor high-grade, high-demand buildings, park landscape, ancient buildings floodlight use, good light mixing effect.

  • Aluminum Alloy structure, two-way convection heat dissipation design, with good heat dissipation performance.

  • BUILT-IN CONSTANT-CURRENT DRIVE CIRCUIT: 1 Lamp high-efficiency Luminous; 2 wide voltage stability, improve the ability of anti-surge, avoid external supply voltage changes, resulting in flashing lamps.

  • Anti-glare honeycomb design.

  • Anti-glare angle up to 30 ° , a variety of luminous angle can be selected. AC110 ~ 220V or DC24V input.

  • Appearance can be customized according to the color of the curtain wall, so that products better into the building.

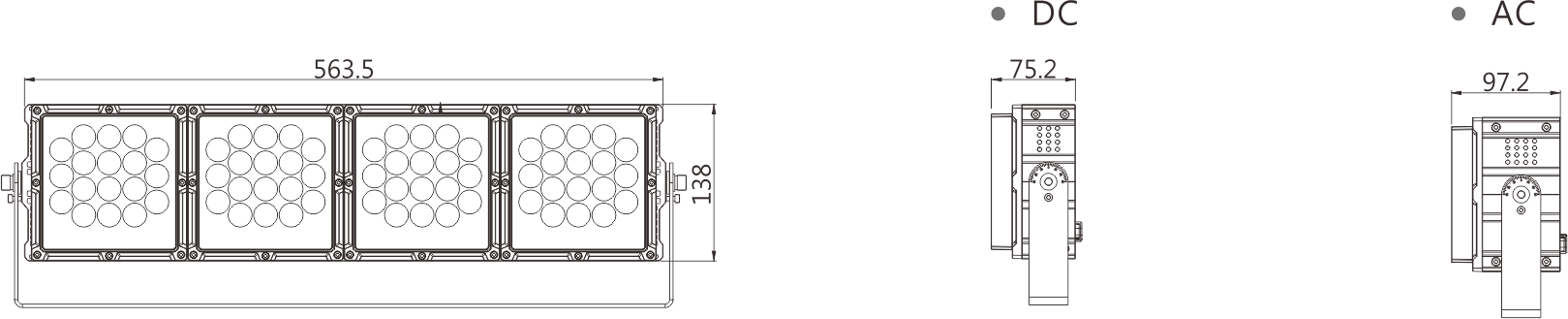

16836129897661081.jpg Dimension

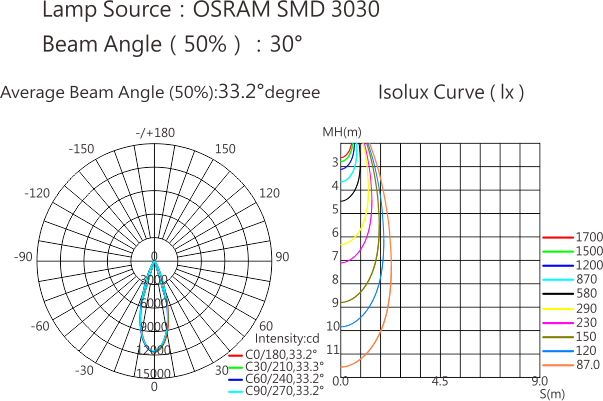

16836129897661081.jpg Photometric curve

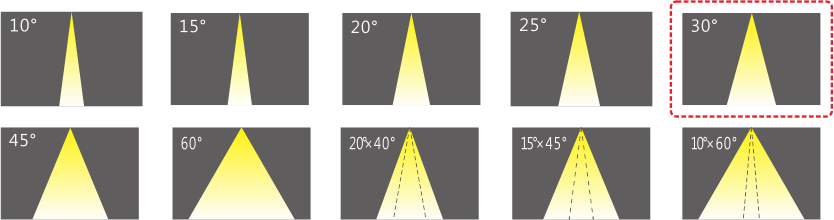

16836129897661081.jpg Beam Angle

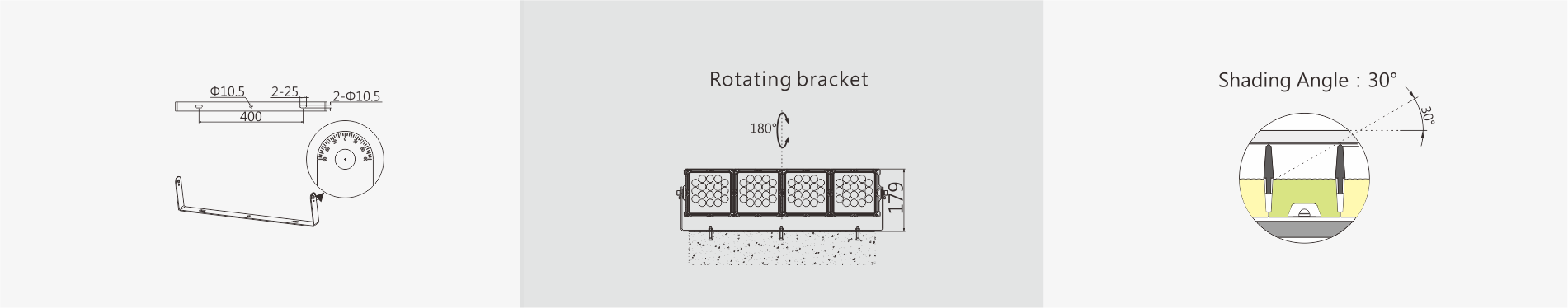

16836129897661081.jpg Installation






16836129897661081.jpg Features

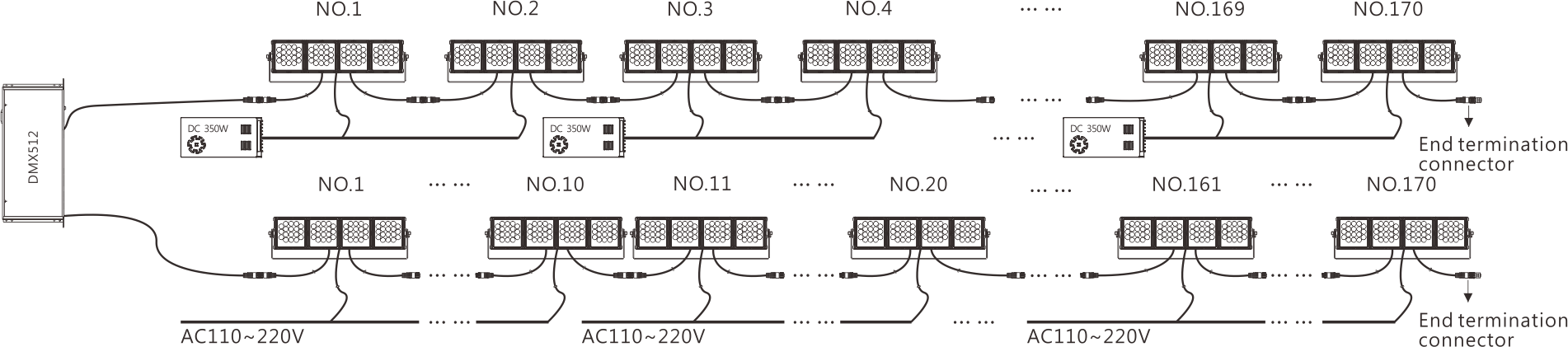

16836129897661081.jpg System Schematic Diagram
