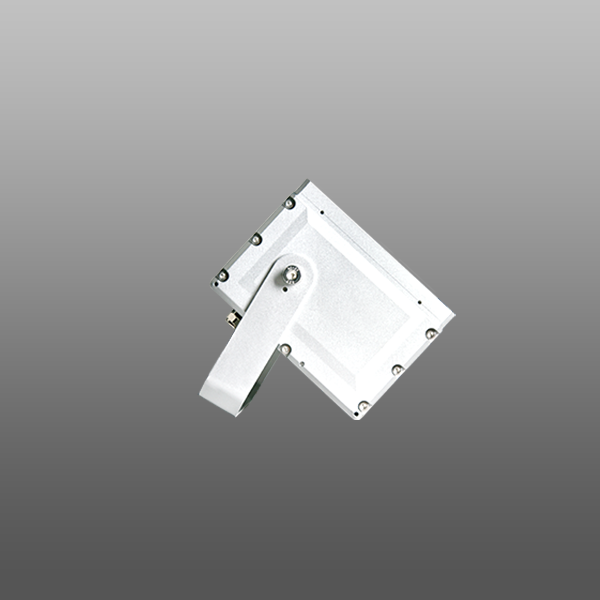

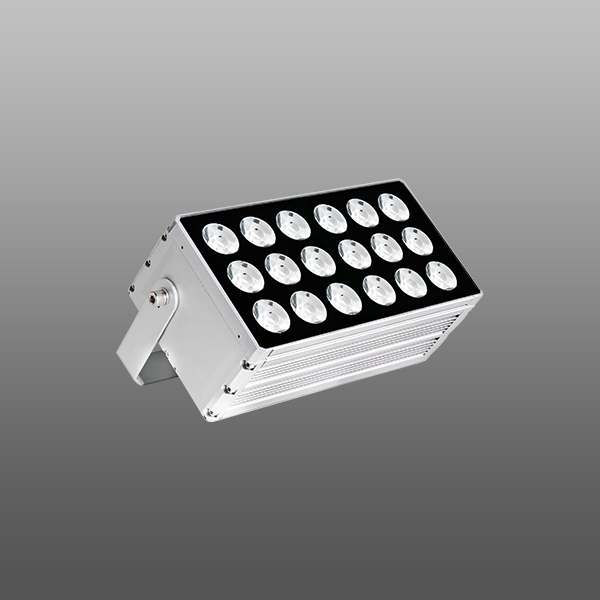

TF1K 1X2

• RGBW high-power projection lamp, suitable for outdoor high-grade, high-demand buildings, park landscape, ancient buildings floodlight use, good light mixing effect.

• Aluminum Alloy structure, two-way convection heat dissipation design, with good heat dissipation performance.

• Built in constant current drive circuit: ① The lamp high-efficiency Luminous; ② wide voltage stability, improve the ability of anti-surge, avoid external supply voltage changes, resulting in flashing lamps.

• According to customer demand can choose: (18 pcs) glass screen printing; (48 pcs) grid, round hole, honeycomb anti-glare accessories.

• AC110 ~ 220V or DC24V input.

• Appearance can be customized according to the color of the curtain wall, so that products better into the building.

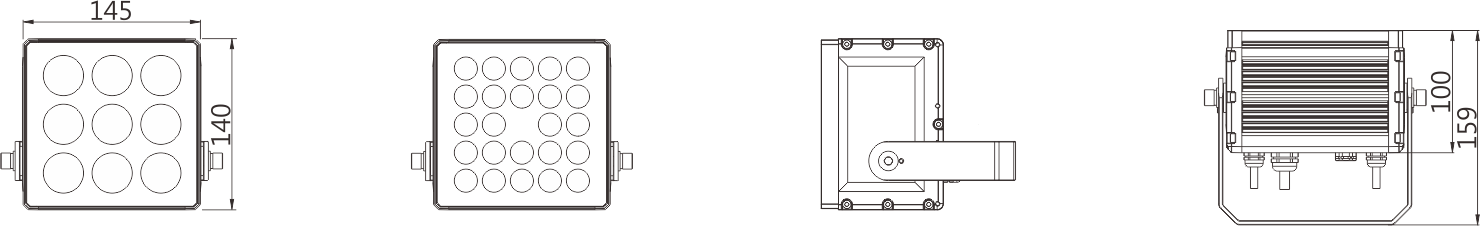

Dimension

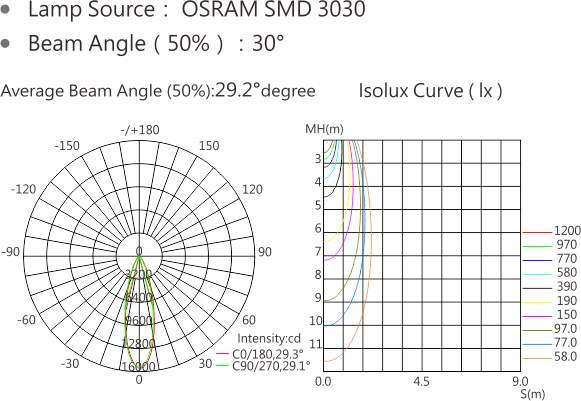

Photometric curve

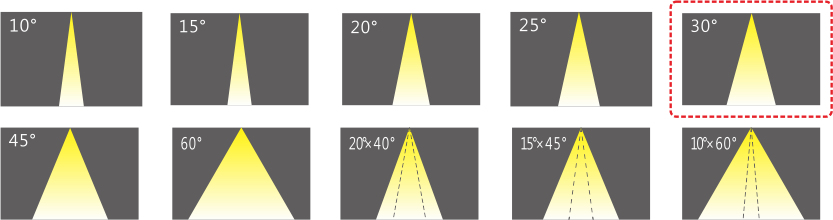

Beam Angle

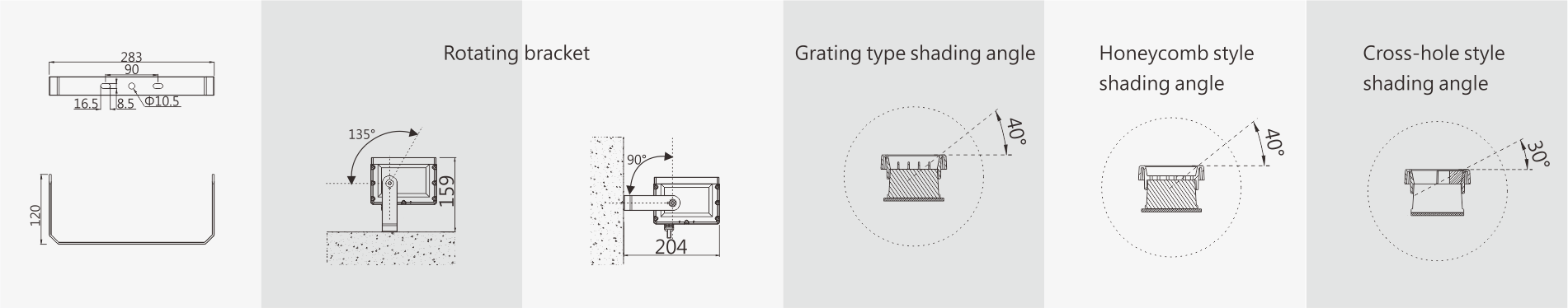

Installation

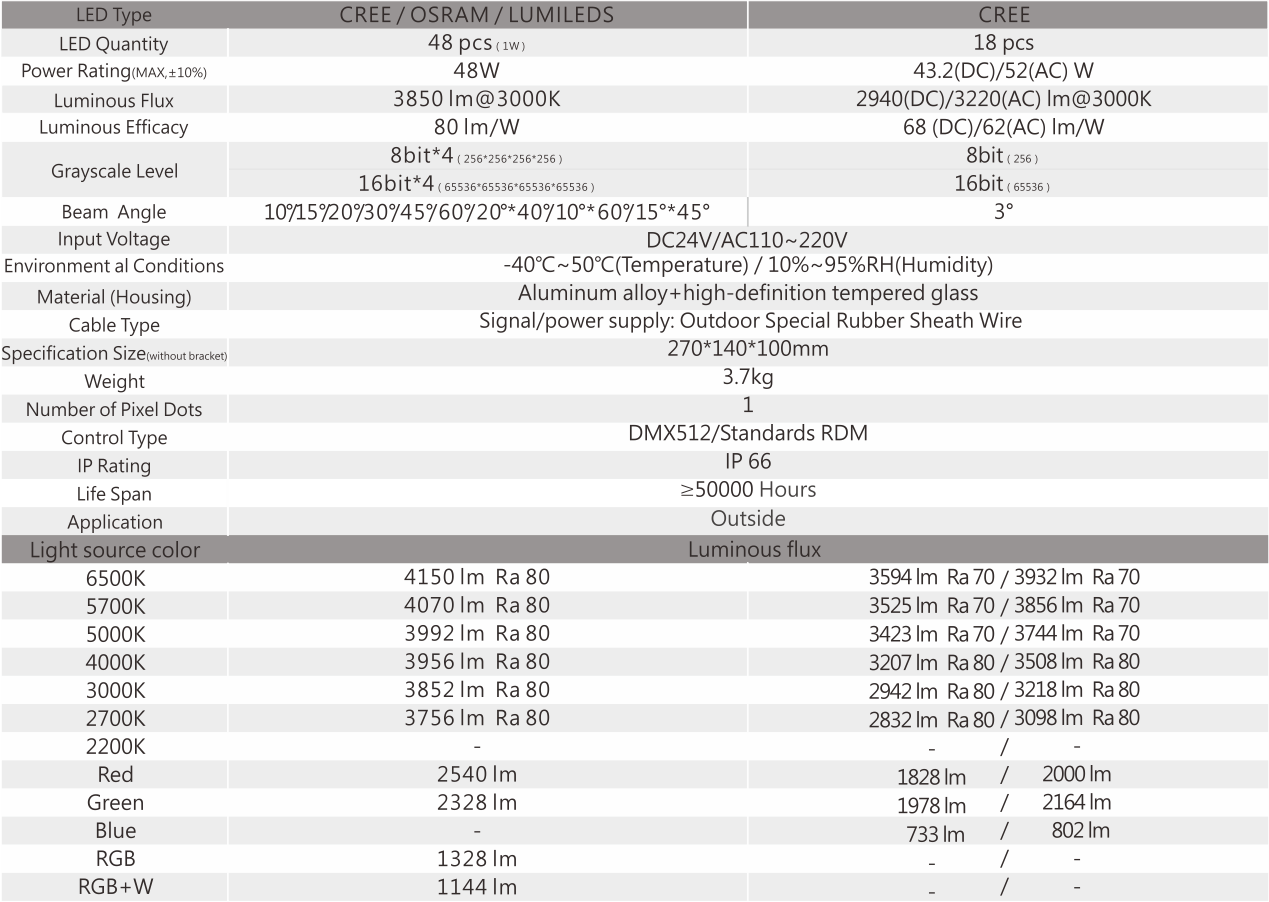

Features

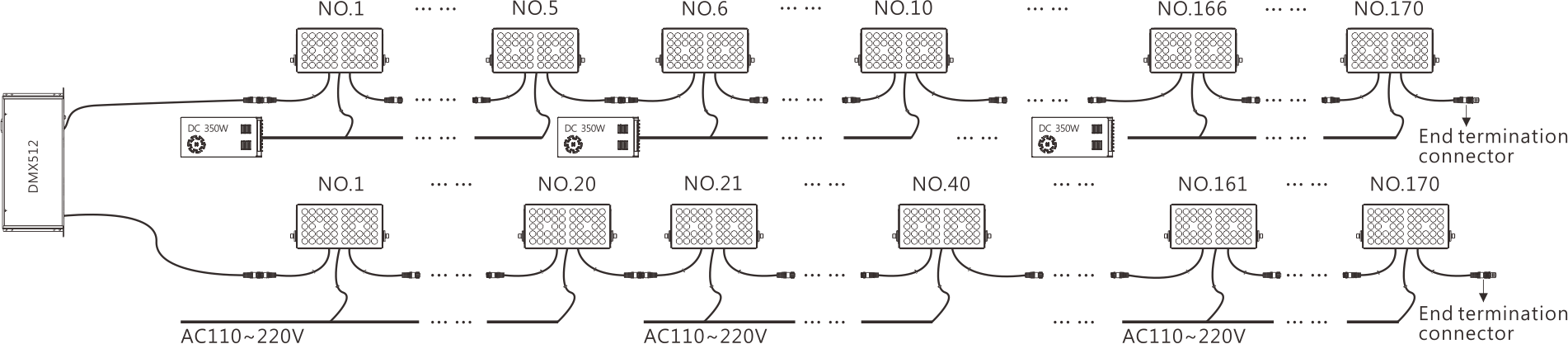

System Schematic Diagram
