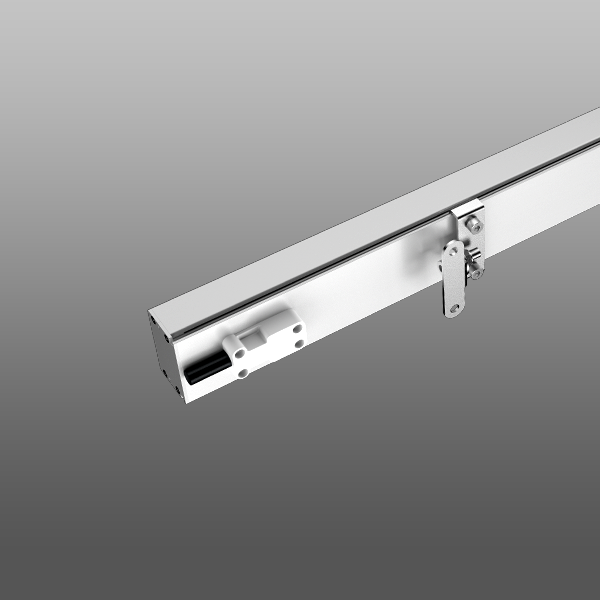

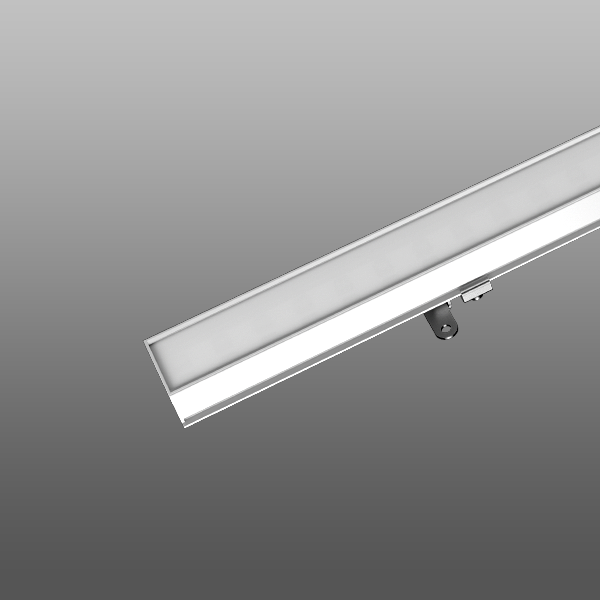

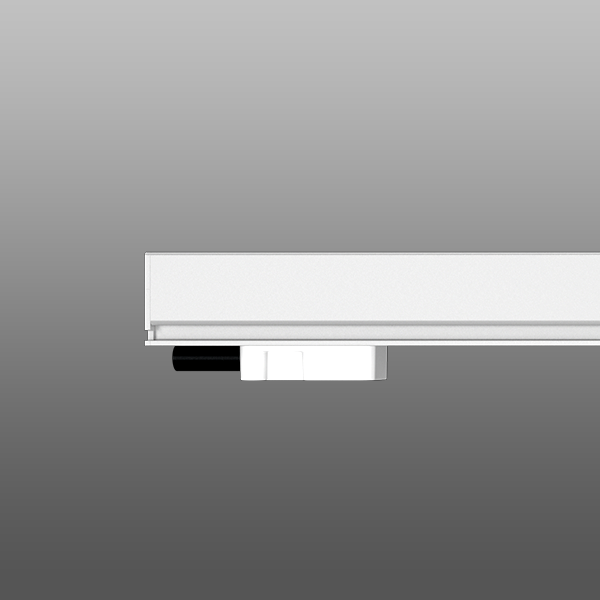

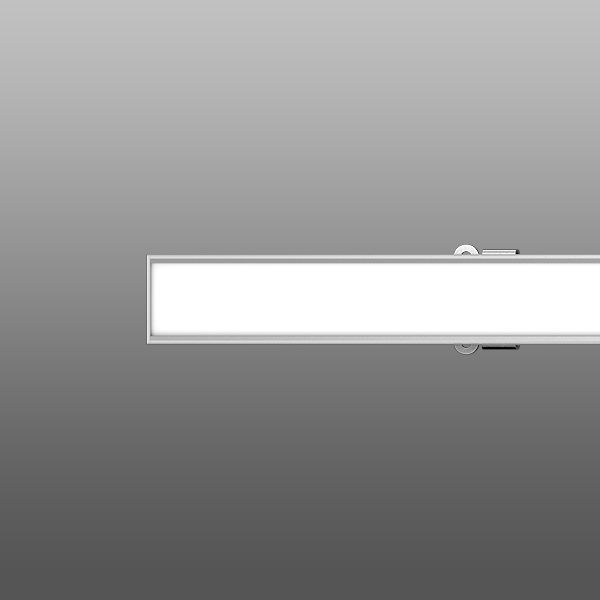

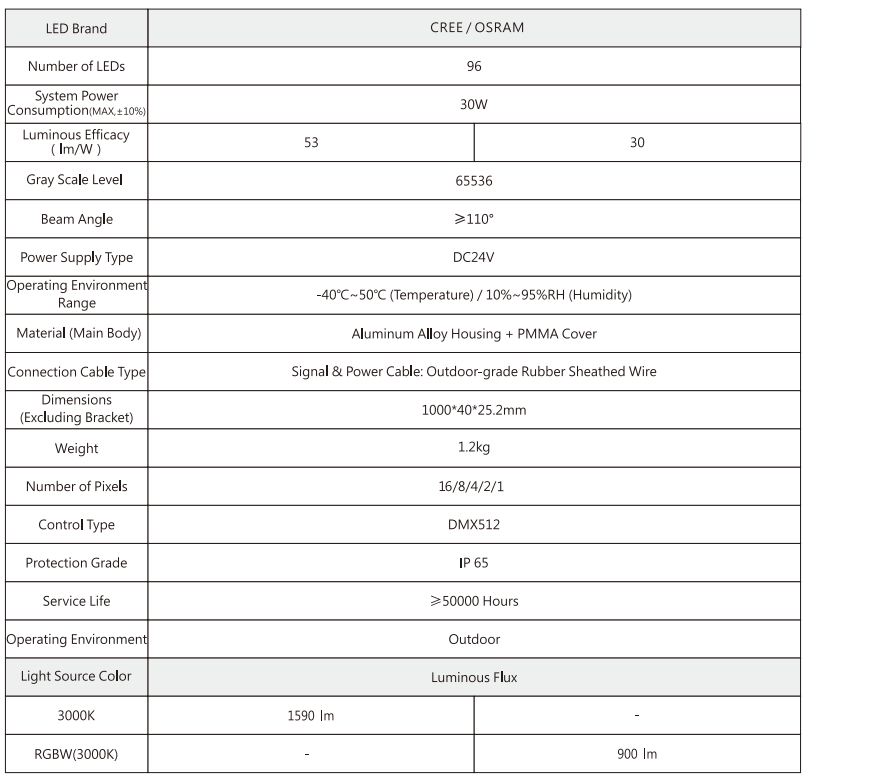

CV6A

• Strip LED lamps and lanterns are suitable for the display of animation, graphics, video and dynamic advertising on the facade of super-large buildings,video display and facade dynamic advertising display; can also be used for building.

• It can also be used in the outline of the building.

• The perforated aluminum cover design and flat surface can realize rainwater self-cleaning, reduce internal UV aging, and block external impact.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

• DC24V power supply ensures feeder, effective signal transmission and low line loss

• Constant current drive, built-in PWM grayscale control, grayscale level of 256/65536.

 Dimension

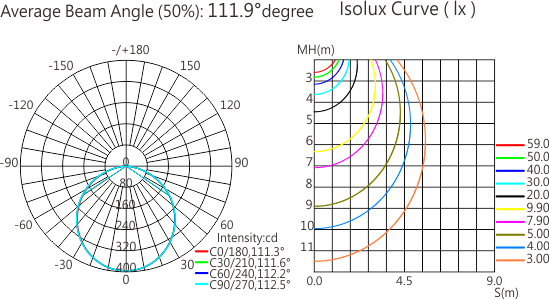

Photometric curve

 Beam Angle

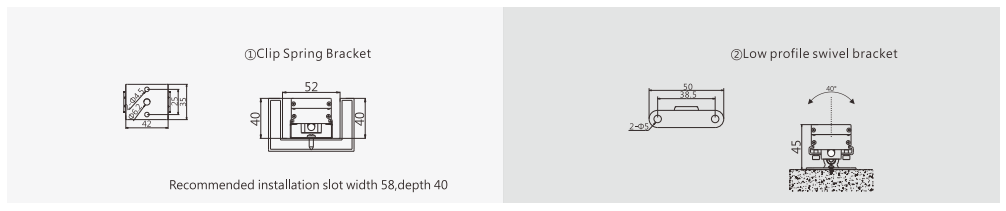

Installation
