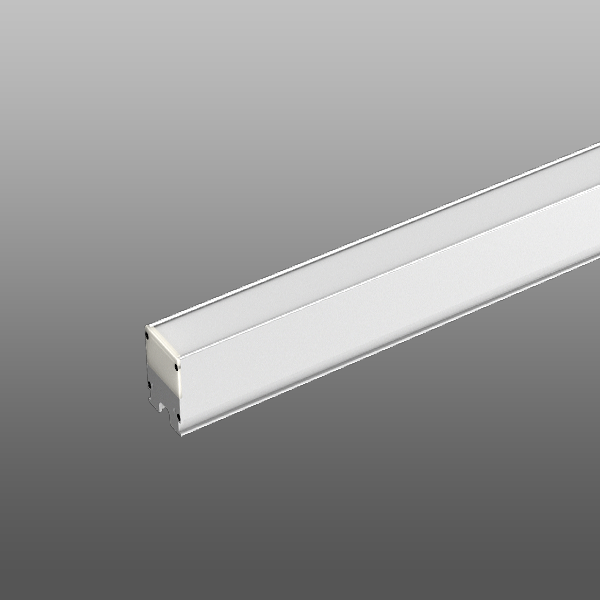

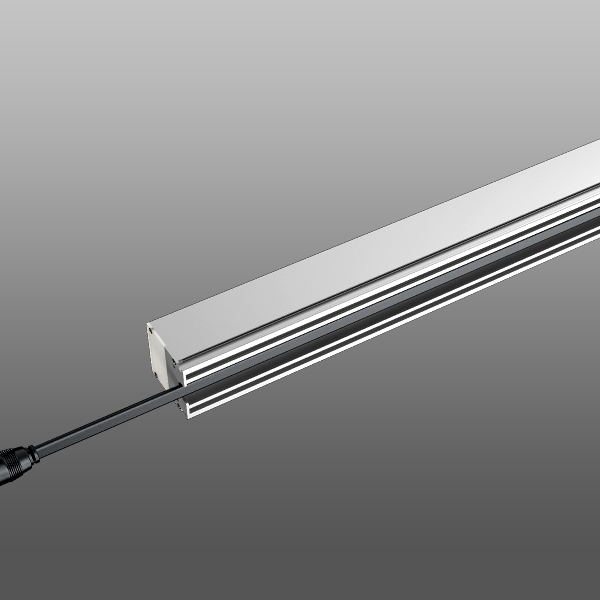

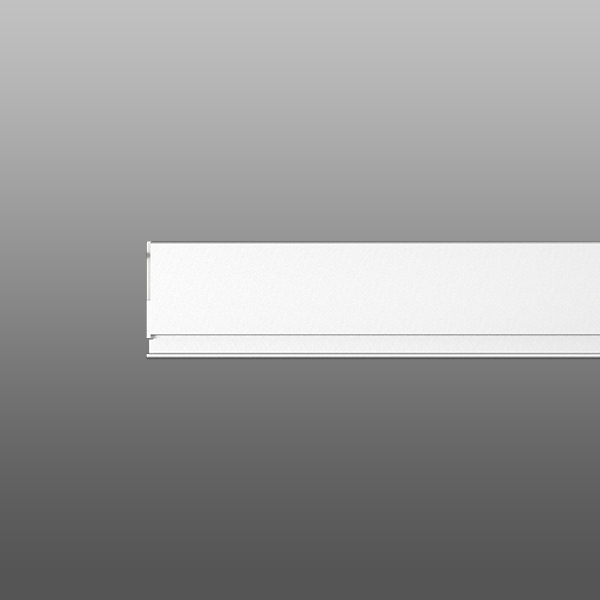

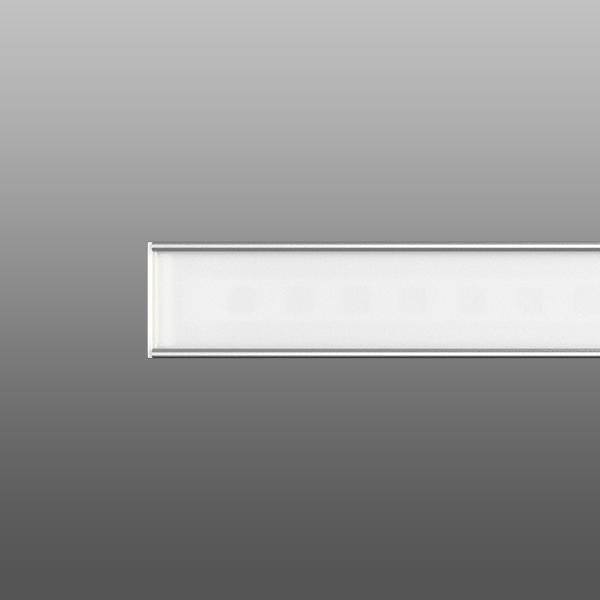

CX3B

• High brightness LED soft light pixel line light, soft light without dazzle.

• High transmittance PC/PMMA diffusion mask, evenly mixed light, can realize seamless docking.

• High-quality polyurethane potting process inside, protection level up to IP66.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

• The bottom concealed wire outlet makes the whole more neat and tidy after installation.

• DC24V power supply ensures effective transmission of power and signal and low line loss.

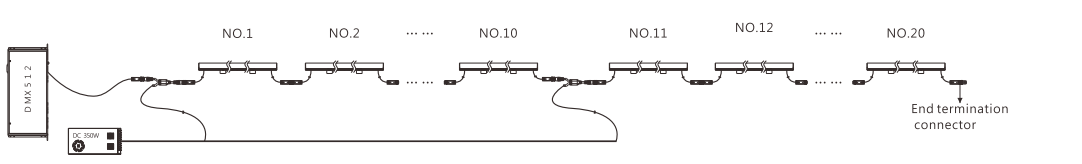

• Single power circuit can be connected 10 meters in series, reducing wiring and wiring, and reducing construction difficulty in construction.

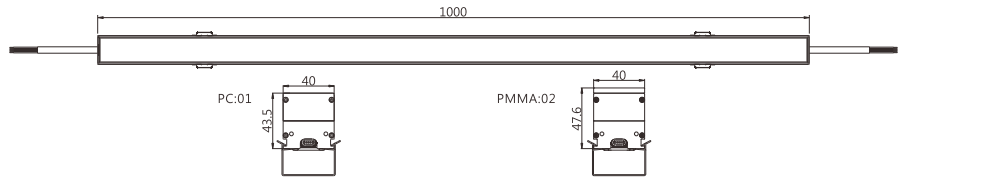

 Dimension

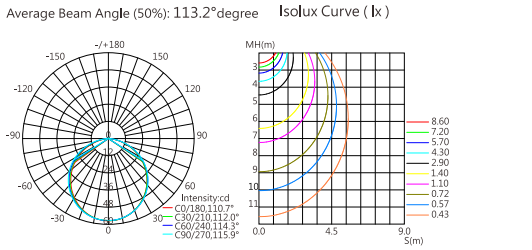

Photometric curve

 Beam Angle

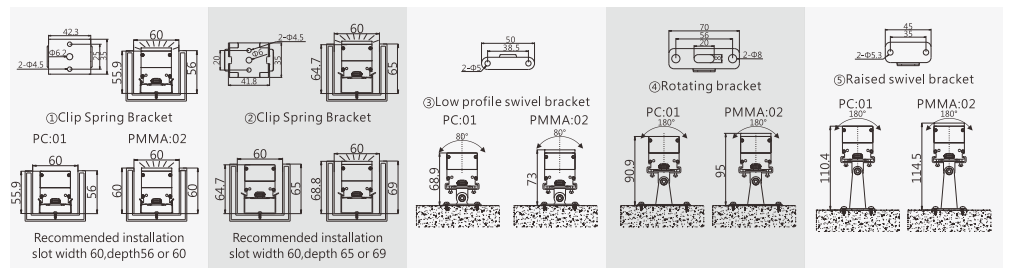

Installation
