HV4

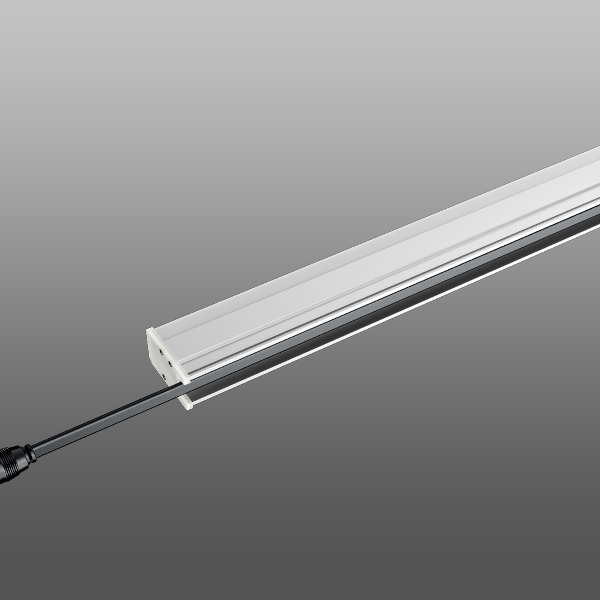

• Ultra-thin high-brightness LED pixel line lamp, suitable for large-scale building lighting that is contour lighting.

• Full transparent/matte mask for video display.

• Can Be combined into a light transmission screen, point spacing 20mm, light transmittance of more than 59% .

• DMX Control, with automatic addressing function.

• The simple and applicable installation structure can be conveniently combined with the curtain wall, and the light and delicate appearance makes your operation more convenient.

• Constant current drive, built-in PWM grayscale control, grayscale level 256665536. Protection level up to Ip 65

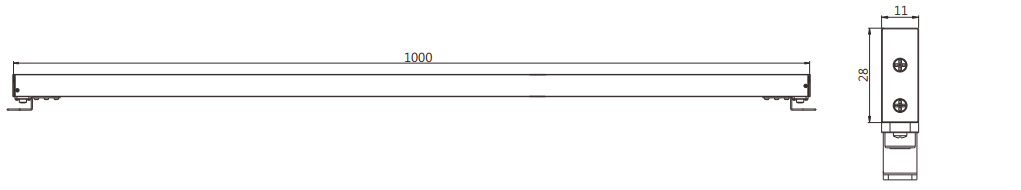

 Dimension

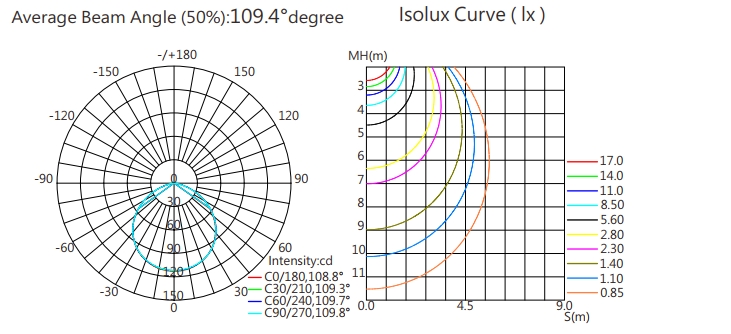

Photometric curve



 Beam Angle

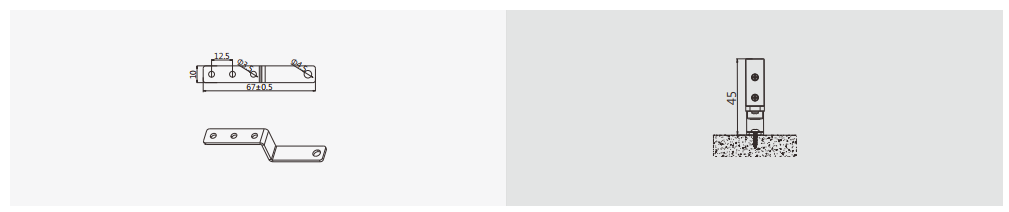

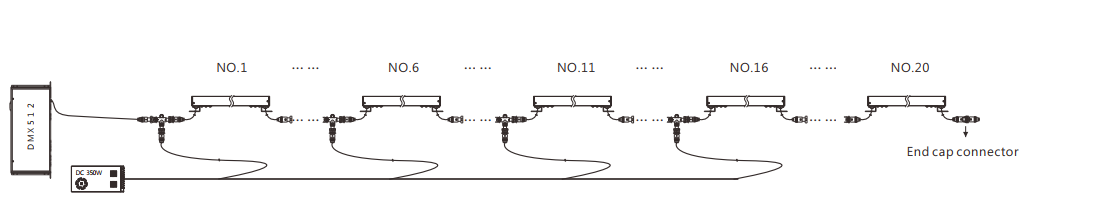

Installation
