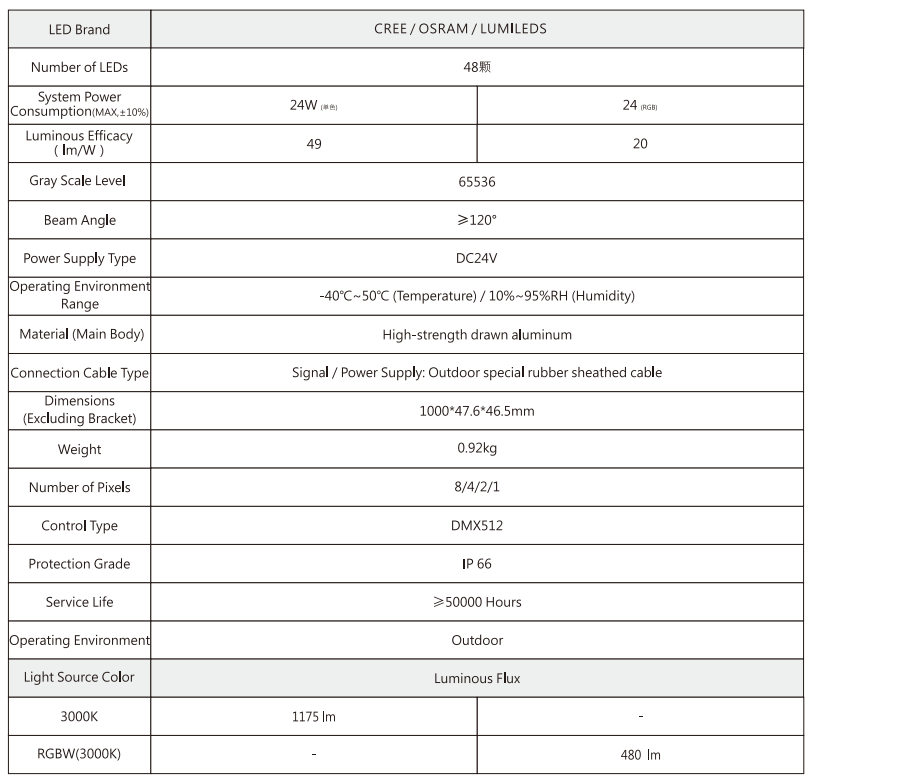

CX3D

• High Brightness LED soft Pixel Line Lamp, soft light without glare.

• PC Mask, even mixing light, can achieve seamless docking.

• Internal use of high-quality polyurethane encapsulation process, protection grade up to IP66.

• Appearance can be customized according to the color of the curtain wall, so that products better into the building.

• The bottom of the hidden line, after the installation of the overall more clean.

• DC24V power supply, ensure feed, effective signal transmission, low line loss.

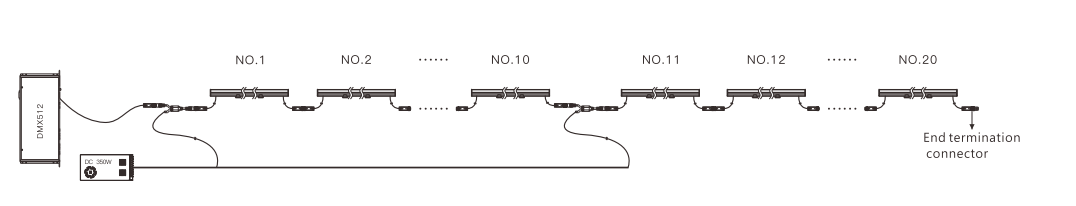

• A single power circuit can be connected in series for 10 meters, reducing wiring, wiring, reducing the difficulty of construction.

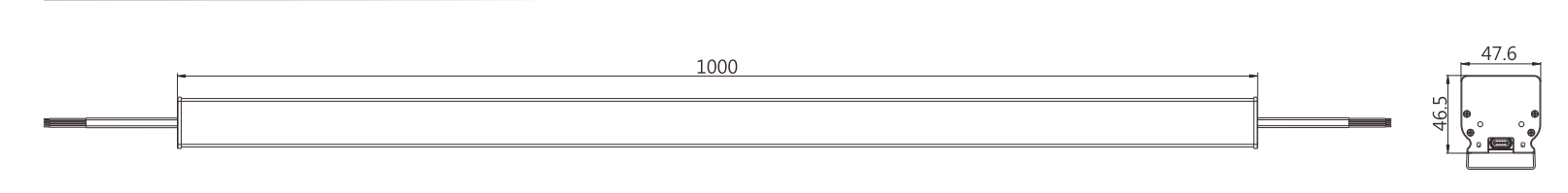

 Dimension

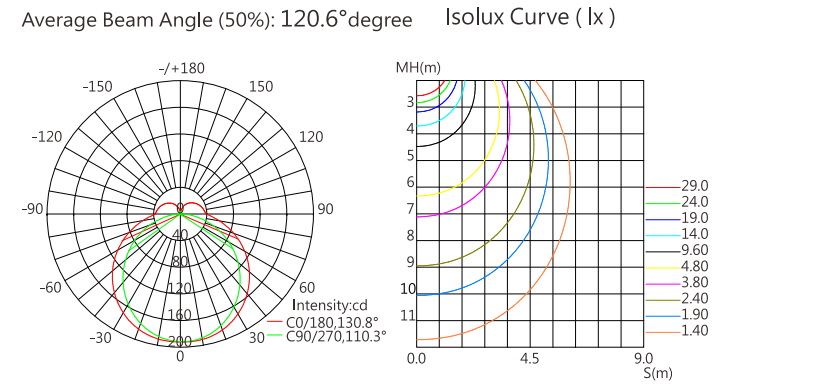

Photometric curve



 Beam Angle

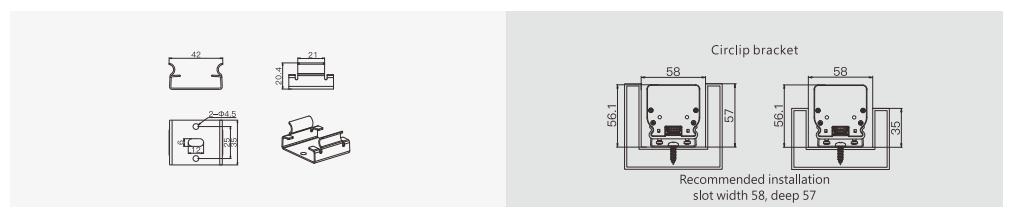

Installation
