CV5B

• Thin strip LED luminaires are suitable for the display of animation, graphics, video and dynamic advertising on the facade of super-large buildings, video display and facade dynamic advertising display; can also be used for building. It can also be used in the outline of the building.

• DMX control, with automatic addressing function.

• High-strength tensile aluminum profile structure, polymer silicone material overall encapsulation waterproof and anti-static.

• Anti-static,  Various installation and fixing methods are available, and the wind resistance level is over 10.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

• DC24V power supply ensures effective transmission of power and signal and low line loss.

• Constant current drive, built-in PWM grayscale control, grayscale level of 256/65536.

 Dimension

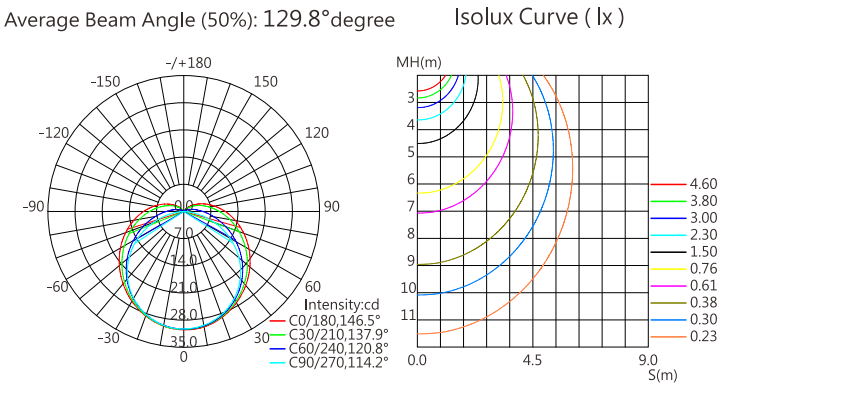

Photometric curve




 Beam Angle

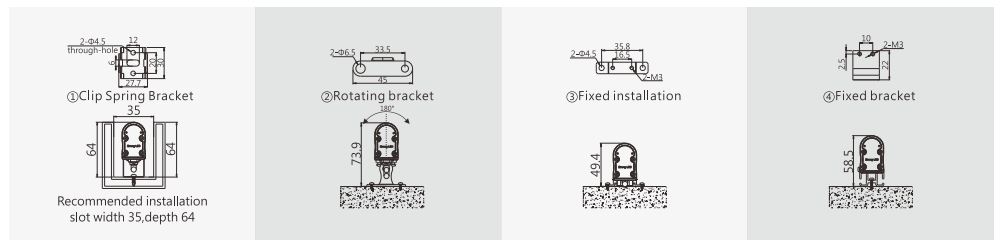

Installation
