CV8C

• Line light with high brightness LED as light-emitting element

• Wind-resistant grade up to 10 or more

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building

• DC24V power supply to ensure feeder, effective signal transmission and low line loss

• Constant current drive, built-in PWM grayscale control, grayscale level of 256/65536.

 Dimension

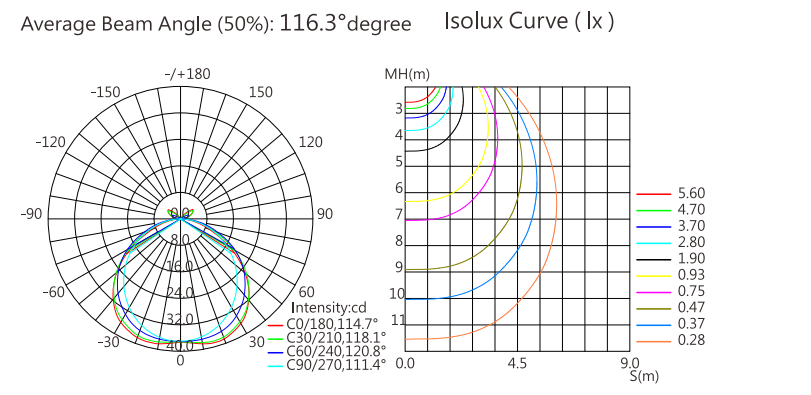

Photometric curve




 Beam Angle

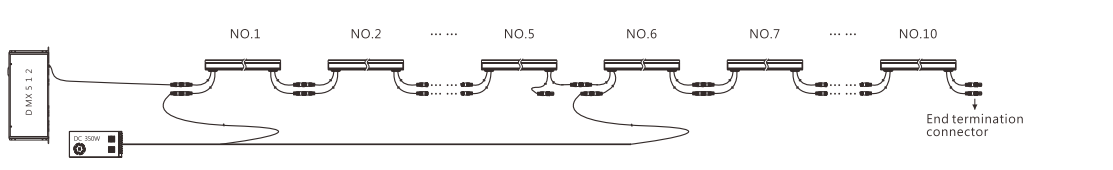

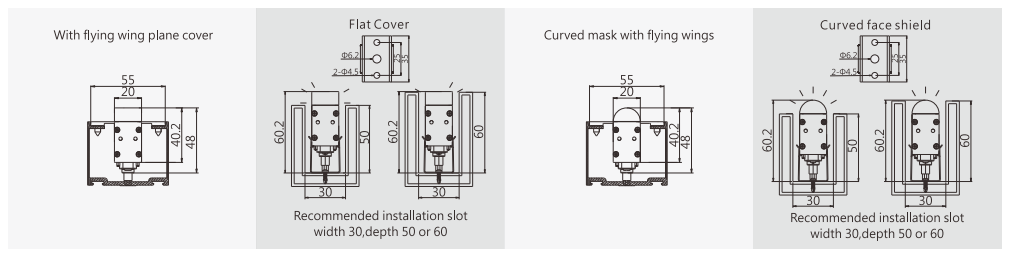

Installation
