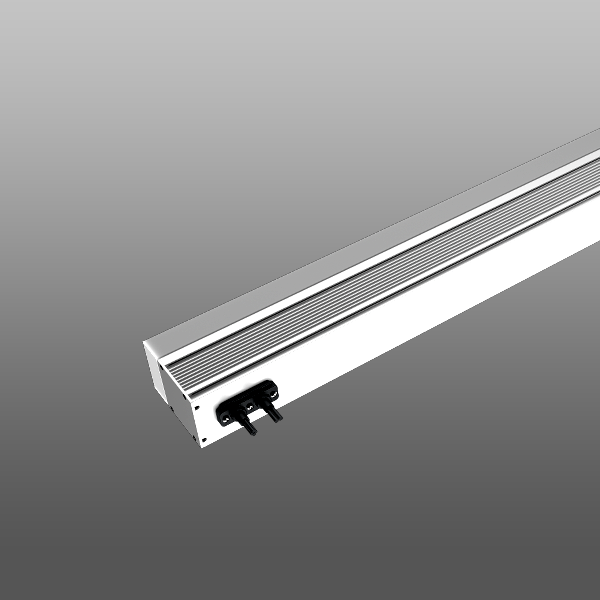

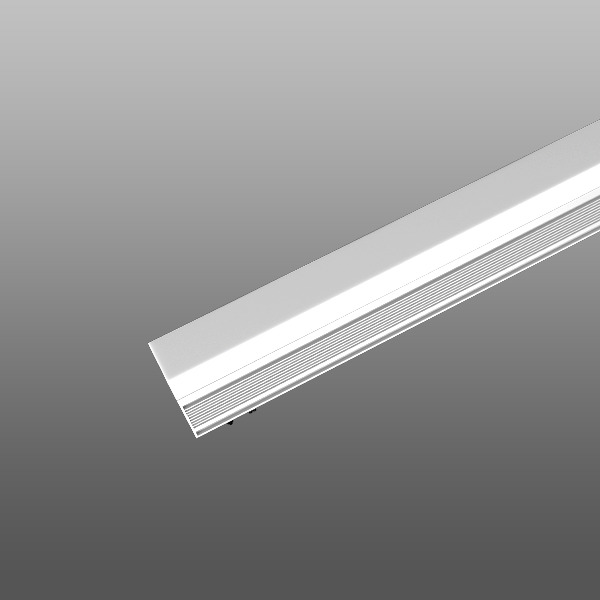

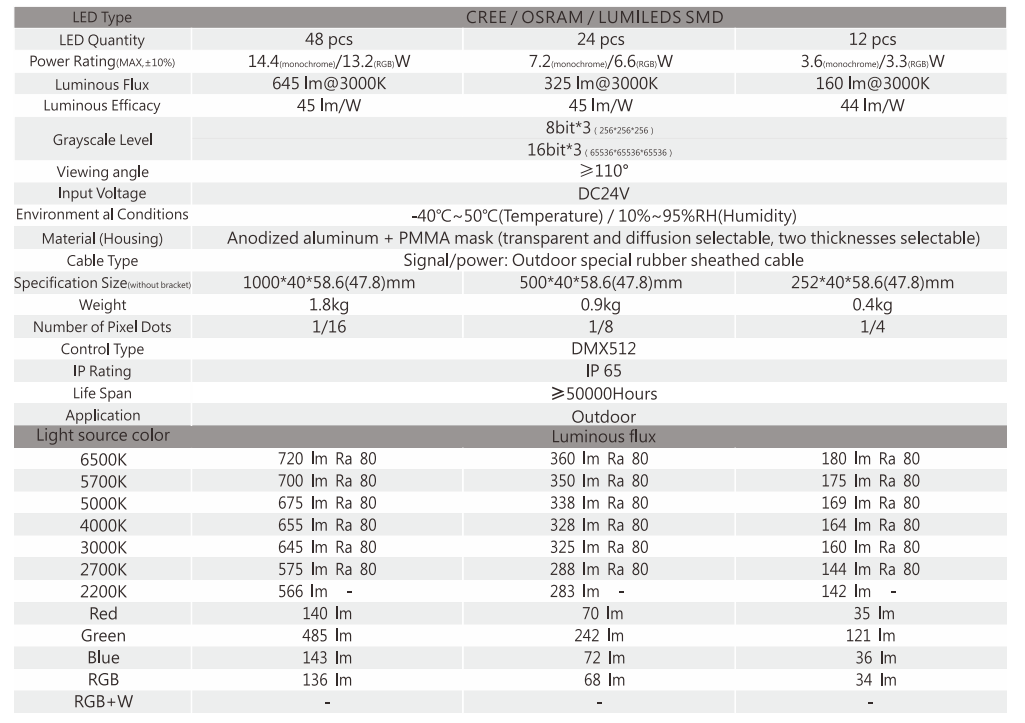

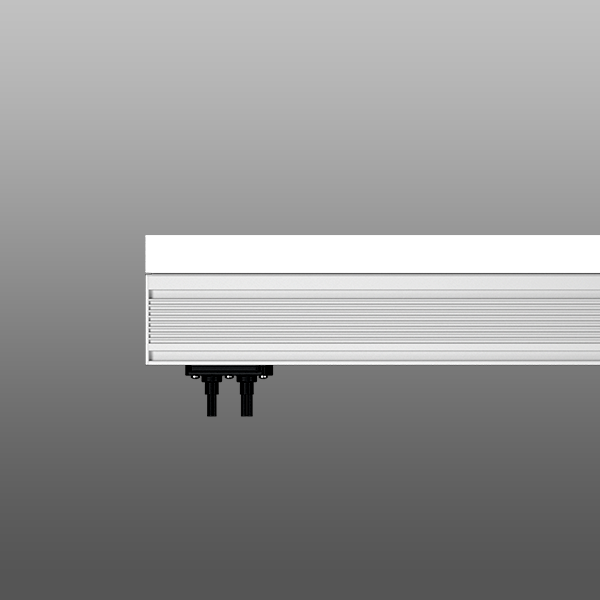

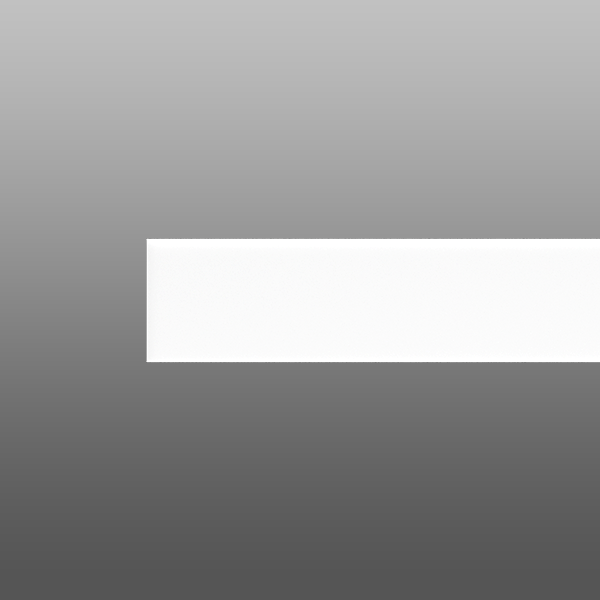

CV9C

• High brightness LED square contour line strip light.

• DMX control with automatic addressing function.

• The appearance can be customized according to the color of the curtain wall, so that the product can be better integrated into the building.

• DC24V power supply to ensure feeder, effective signal transmission and low line loss.

• Constant current drive, built-in PWM grayscale control, grayscale level of 256/65536.

• PMMA thickness is available in two options.

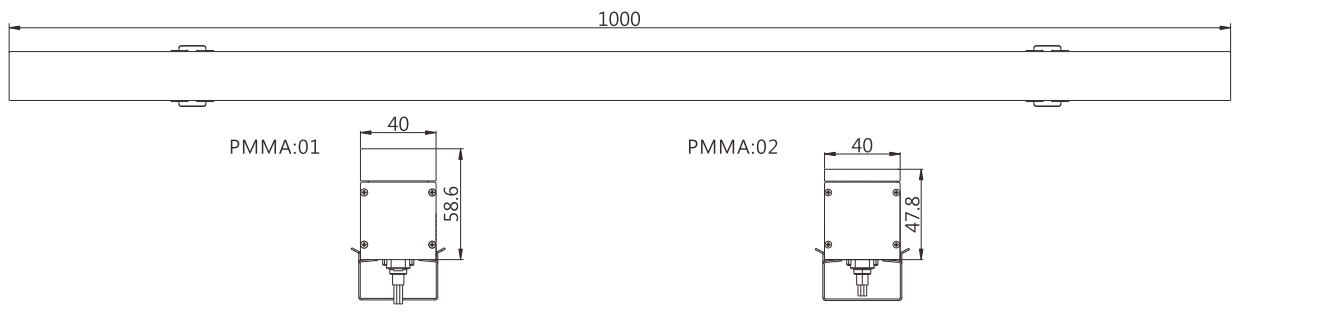

 Dimension

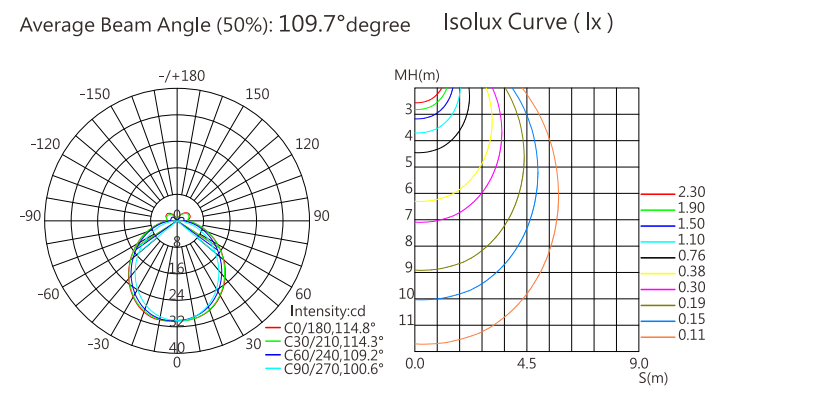

Photometric curve




 Beam Angle

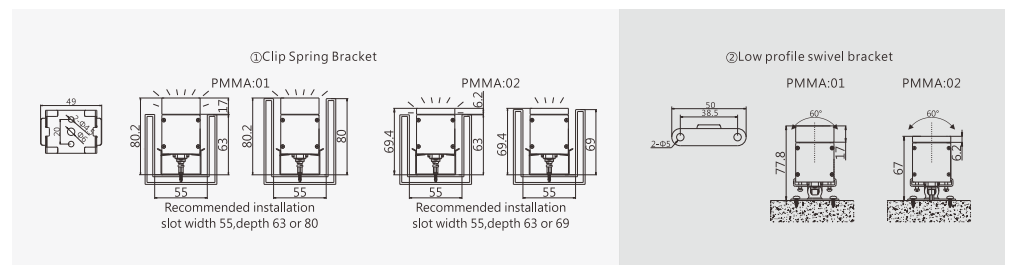

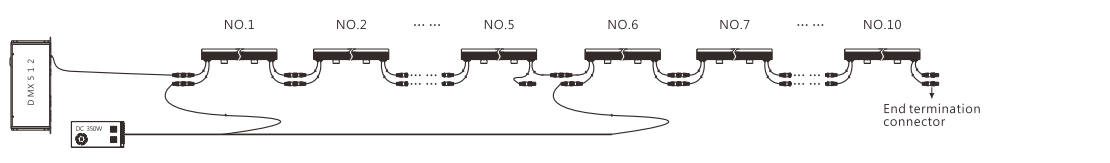

Installation
